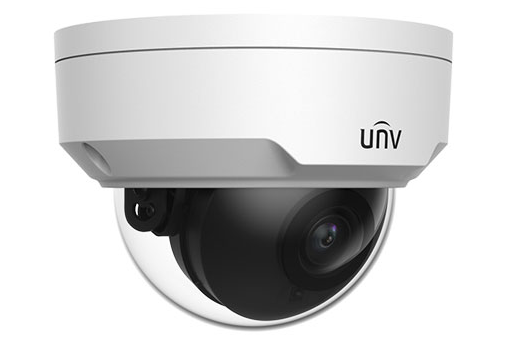

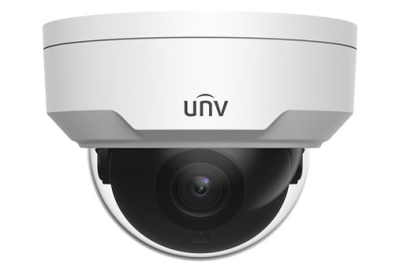

IPC324SR3-DSF28KM-G 4MP HD Vandal-resistant IR Fixed Dome Network
SKU: WEC-IPC324SR3-DSF28KM-G- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Lighthunter technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis
IPC324SR3-DSF28K-G | IPC324SR3-DSF40K-G | |||||||||
Camera | ||||||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||||
Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||||
Angle of view (H) | 101.1° | 83.7° | ||||||||
Angle of View (V) | 55.3° | 44.9° | ||||||||
Angle of View (O) | 111.1° | 89.2° | ||||||||
Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
Minimum Illumination | Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR | |||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
Digital noise reduction | 2D/3D DNR | |||||||||
S/N | >56dB | |||||||||
IR Range | Up to 30m (98ft) IR range | |||||||||
Wavelength | 850nm | |||||||||
IR On/Off Control | Auto/Manual | |||||||||
Defog | Digital Defog | |||||||||
WDR | 120dB | |||||||||
Video | ||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
9:16 Corridor Mode | Supported | |||||||||
OSD | Up to 4 OSDs | |||||||||
Privacy Mask | Up to 4 areas | |||||||||
ROI | Up to 8 areas | |||||||||
Motion Detection | Up to 4 areas | |||||||||
Image | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
Digital noise reduction | 2D/3D DNR | |||||||||
Smart IR | Supported | |||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
Dewarping | N/A | |||||||||
HLC | Supported | |||||||||
BLC | Supported | |||||||||
Smart | ||||||||||
Behavior Detection | Cross line, intrusion(based on human body detection) | |||||||||
motion detection, tampering alarm | ||||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||||
Network | ||||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | |||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
Client | EZStation EZView EZLive | |||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
Storage | ||||||||||
Edge Storage | Micro SD, up to 256 GB | |||||||||
Network Storage | ANR,NAS(NFS) | |||||||||
Interface | ||||||||||
Network | 10/100M Base-TX Ethernet | |||||||||
Certifications | ||||||||||
Certifications | UL: UL60950-1 FCC: FCC Part 15 | |||||||||
General | ||||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
Power consumption: Max5.5W | ||||||||||

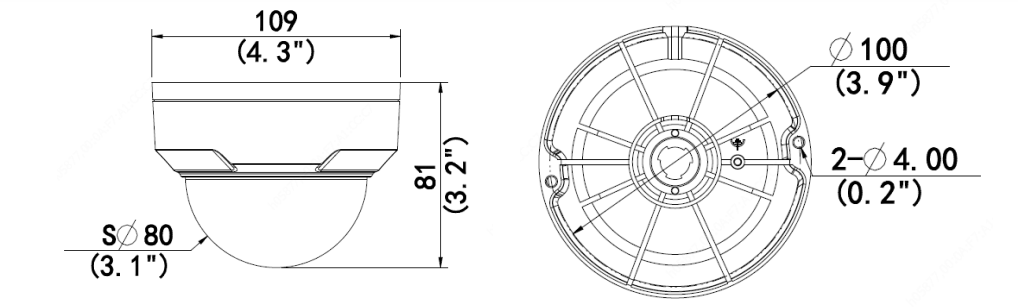

Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||||||
Net Weight | 0.42kg (0.92lb) | |||||||||
Material | Metal | |||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Surge Protection | 4KV | |||||||||
Ingress Protection | IP67 | |||||||||
Vandal Resistant | IK10 | |||||||||
Reset Button | N/A |
