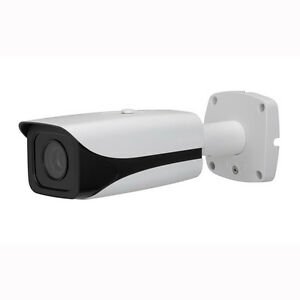

4MP HD WDR Network IR Bullet Camera

        4MP HD WDR Network IR Bullet Camera

        WEC
        SKU: WECIPC-HFW5421EN-Z IPC-HFW54A1EN

        >1/3” 4Megapixel progressive scan CMOS
        >Support H.264&MJPEG dual codec
        >Max 20fps@4Mp(2688×1520),25/30fps@3M(2304x1296
        >Smart Detection supported
        >WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
        >Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
        >2.7mm ~12mm motorized lens
        >2/1 Alarm in/out, 1/1 audio in/out
        >Max. IR LEDs Length 50m
        >Micro SD memory, IP67, PoE

          • 50% less
          Market price:$676.00 save $338.00
        • $338.00

        OR


        PRODUCT FEAUTURES

        >1/3” 4Megapixel progressive scan CMOS
        >Support H.264&MJPEG dual codec
        >Max 20fps@4Mp(2688×1520),25/30fps@3M(2304x1296
        >Smart Detection supported
        >WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
        >Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
        >2.7mm ~12mm motorized lens
        >2/1 Alarm in/out, 1/1 audio in/out
        >Max. IR LEDs Length 50m
        >Micro SD memory, IP67, PoE



        ModelDH-IPC-HFW5421E-Z
        Camera
        Image Sensor1/3” 4Megapixel progressive scan CMOS
        Effective Pixels2688(H) x 1520(V)
        Scanning SystemProgressive
        Electronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
        Min. Illumination

        0.01Lux/F1.4(Color),0Lux/F1.4(IR on)

        S/N Ratio

        More than 50dB

        Video Output

        1 port

        Camera Features
        Max. IR LEDs Length50m
        Day/NightAuto(ICR) / Color / B/W
        Backlight CompensationBLC / HLC /WDR(120dB)
        White BalanceAuto/Sunny/Night/Outdoor/Customized
        Gain ControlAuto/Manual
        Noise Reduction3D
        Privacy MaskingUp to 4 areas
        Lens
        Focal Length2.7mm~12mm
        Max ApertureF1.4
        Focus ControlMotorized
        Angle of ViewH: 100°~33°
        Lens TypeMotorized/ Auto Iris(DC)
        Mount TypeBoard-in Type
        Video
        CompressionH.264/H.264H/H.264B/MJPEG
        Resolution4M(2688x1520)/4M(2560x1440)/3M(2304x1296)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
        Frame RateMain Stream4Mp(1~20fps)/3Mp(1 ~ 25/30fps)
        Sub StreamD1(1 ~ 25/30fps)
        Third Stream720P(1-20fps)
        Bit RateH.264: 32K ~ 10Mbps
        Corridor ModeSupport
        Audio
        CompressionG.711a/ G.711u/AAC
        Interface1/1 channel In/Out
        Smart Function (Optional)
        Smart detectionTripwire
        Intrusion
        Abandoned/Missing
        Scene Change
        Audio detect
        Face detect
        Network
        EthernetRJ-45 (10/100Base-T)
        Wi-FiN/A
        ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
        ONVIFONVIF,PSIA,CGI
        Max. User Access20users

        Smart Phone

        iPhone, iPad, Android, Windows Phone

        Auxiliary Interface
        Memory SlotMicro SD, Max 128GB
        RS485N/A
        Alarm2/1 channel In/Out
        PIR Sensor RangeN/A
        General
        Power SupplyDC12V, PoE (802.3af)
        Power Consumption<11.5W (with IR on, motorized lens working)
        Working Environment-40°C~+60°C, Less than 95% RH
        Ingress ProtectionIP67
        Vandal ResistanceN/A
        Dimensions272.9 mm × 94.9mm× 94.9mm
        Weight1.1kg



        Datasheet

          • SKU
            WECIPC-HFW5421EN-Z IPC-HFW54A1EN
          • Weight
            1.1 lbs
        • Manufacturer
          WEC
        • Camera Type
          Bullet
        • Camera Signal
          IP
        • Camera Resolution
          4 Megapixel
        • Lens Size
          4X
        • Optical Zoom
          Motorized Zoom
