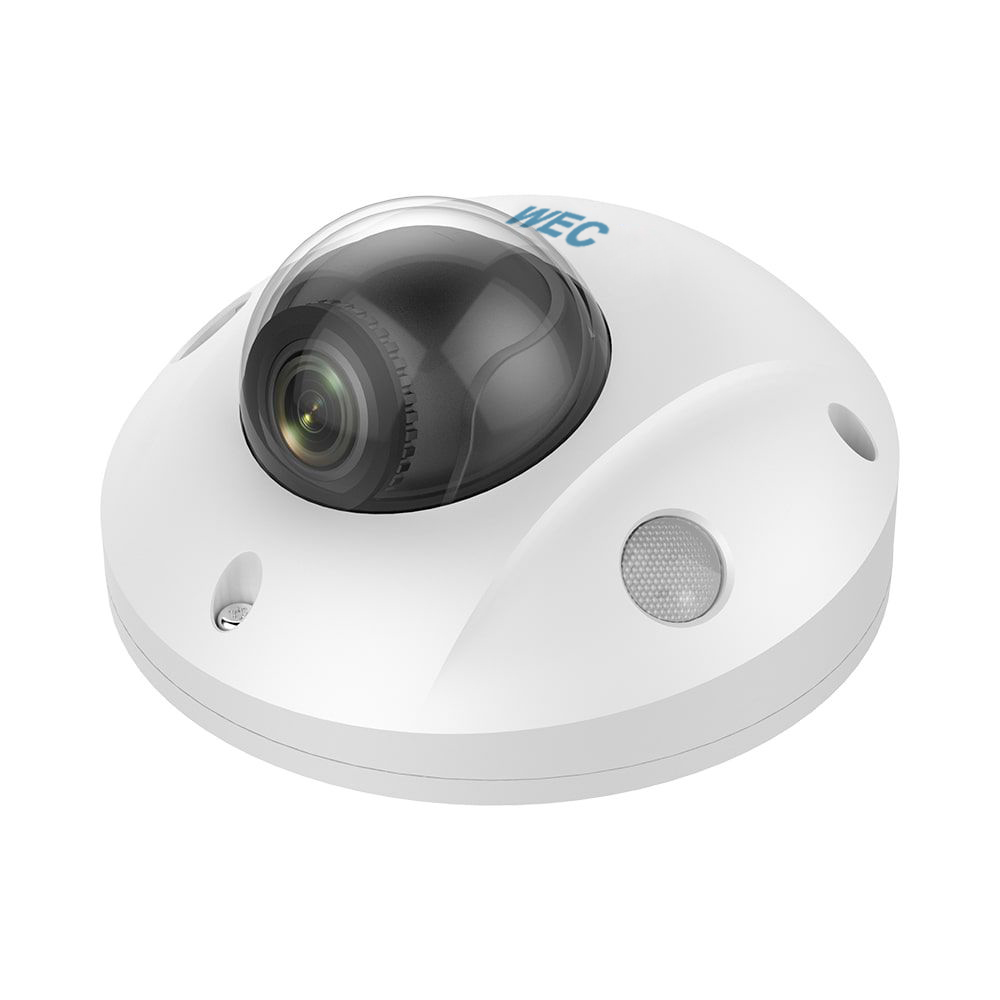

        4MP IR Fixed Mini Dome Network Camera | SIP44D1AM/28-K

        Worldeyecam
        SKU: WEC44D1AM/28-K

        Features

        • 1/2.5" progressive scan CMOS
        • 2688 × 1520@30 fps
        • Up to 10 m IR range
        • 2.8mm fixed lens
        • Powered by Darkfighter
        • H.265+, H.265, H.264+, H.264
        • IP66
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC
        • PoE (Power over Ethernet)
        • Wi-Fi connection (Optional)
          • 33% less
          Market price:$375.00 save $125.00
        • $250.00

        OR

        Features

        • 1/2.5" progressive scan CMOS
        • 2688 × 1520@30 fps
        • Up to 10 m IR range
        • 2.8mm fixed lens
        • Powered by Darkfighter
        • H.265+, H.265, H.264+, H.264
        • IP66
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC
        • PoE (Power over Ethernet)
        • Wi-Fi connection (Optional)

        Image Sensor1/2.5" progressive scan CMOS
        Minimum Illumination

        Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

        Electronic Shutter1/3 s to 1/100, 000 s
        Day / NightIR cut filter
        Digital Noise Reduction3D DNR
        Wide Dynamic Range120 dB
        Angle Adjustment

        Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

        Focal Length2.8mm
        Max. ApertureF1.6
        Angle of ViewHorizontal field of view: 109°, Vertical field of view: 60°, Diagonal field of view: 131°
        IR DistanceUp to 30 m
        Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
        Video Bitrate

        32 Kbps to 16 Mbps

        Video Resolution

        2688 × 1520, 2304 × 1296, 1920 × 1080

        Video Frame Rate

        Main Stream:
        50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
        60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
        Sub-Stream:
        50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
        60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
        Third Stream:
        50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
        60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

        Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
        Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
        Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
        Image EnhancementBLC/3D DNR/HLC
        Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
        ROISupport 1 fixed region for main stream and sub-stream
        Behavior DetectionLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
        Exception DetectionScene change detection
        Intelligent IdentificationFace Detection
        Storagelocal storage and NAS (NFS,SMB/CIFS), ANR
        Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
        Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
        General Function

        One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

        APIONVIF (PROFILE S, PROFILE G), ISAPI
        Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
        Storage CardBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
        Management SoftwareiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
        Web ViewerPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
        Reset ButtonYes
        Audio InBuilt-in microphone
        Operating Temperature-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
        Power Supply12 VDC ± 25%, PoE (802.3af)
        Power Consumption12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug power PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
        Ingress ProtectionIK8, IP66
        DimensionsΦ110 mm × 56.4 mm (Φ4.3" × 2.2")
        WeightCamera: Approx. 400 g (0.9 lb.)
