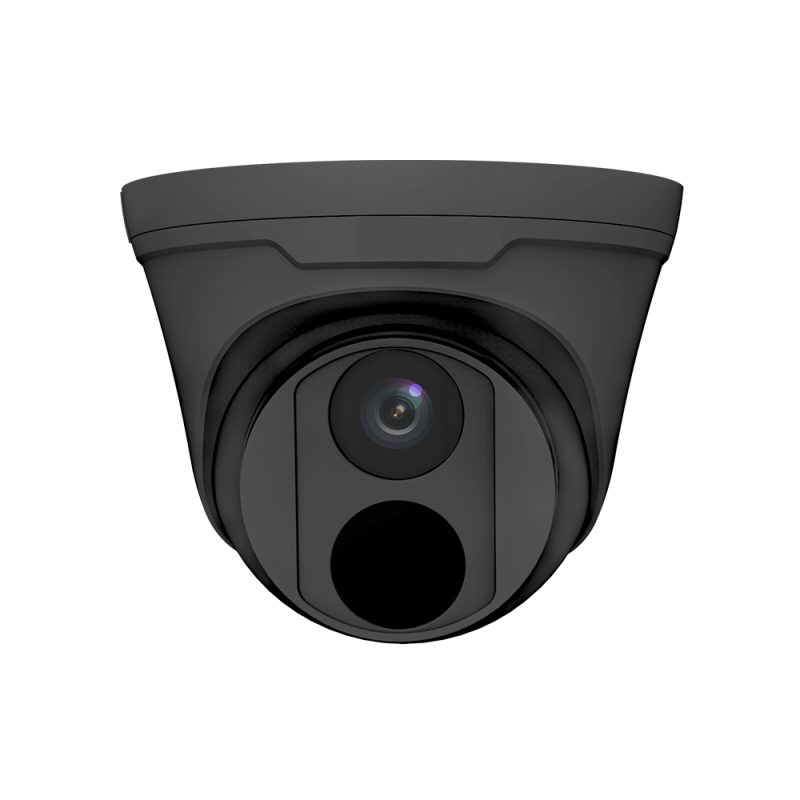

4MP Network IR Fixed Dome Camera
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range)
- SmartIR, up to 30 m (98 ft) IR distance
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm Triple streams
- 9:16 corridor format
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67, 3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
WEC3614SR3-DPF28MB, Network IR Fixed Dome Camera, Black, 1/3" 4Megapixel CMOS Image Sensor, 2.8mm Lens, IR Distance Up to 30m (98 ft), Image Size 1920x1080, Day/night Functionality, Auto/Manual Electronic Shutter, 2D/3D DNR (Digital Noise Reduction), Embedded Smart Algorithm, Smart IR, Triple Streams, 9:16 Corridor Format, Pan 0°~360°, Tilt 0°~90°, Wide Temperature Range -30°C to 60°C (-22°F to 140°F), Wide Voltage Range of ±25%, 4 KV Surge Protection Designed for Network Interface, OSD, BLC Mode, HLC, 3-Axis, IP67
PRODUCT FEATURES
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range)
- SmartIR, up to 30 m (98 ft) IR distance
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm Triple streams
- 9:16 corridor format
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67, 3-Axis
SPECIFICATION
| Max Image Resolution | 4MP | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/3" CMOS | ||||||||||
| Image Size | 1920×1080 | ||||||||||
| Electronic Shutter | Auto/Manual, 1~1/100000 s | ||||||||||
| Minimum Illumination | Colour: 0.02 Lux (F2.0, AGC ON) | ||||||||||
| Focal Length | N/A | ||||||||||
| DORI Distance |
| ||||||||||
| IR LEDs | N/A | ||||||||||
| IR Distance | Up to 30m (98 ft) IR range | ||||||||||
| S/N Ratio | >52 dB | ||||||||||
| Angle of View | 104.4°(H) 67°(V) | ||||||||||
| Angle Adjustment | Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360° | ||||||||||
| Defog | Digital Defog | ||||||||||
| Wide Dynamic Range | 120dB | ||||||||||
| OSD | Yes | ||||||||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||||||||
| Video Resolution | 4MP(2592×1520), 4MP(2560×1440), 3MP(2048×1520), 2MP(1920×1080), D1(720×576) | ||||||||||
| Video Frame Rate | Main Stream: 4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; | ||||||||||
| 9:16 Corridor Mode | Supported | ||||||||||
| Day / Night | IR-cut filter with auto switch (ICR) | ||||||||||
| BLC Mode | Supported | ||||||||||
| HLC | Supported | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||||
| Motion Detection | Up to 4 areas | ||||||||||
| Privacy Masking | Up to 8 areas | ||||||||||
| Behavior Detection | Intrusion, crossing line, motion detection | ||||||||||
| Exception Detection | N/A | ||||||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||||||
| Statistical Analysis | People counting | ||||||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||||
| Audio Compression | N/A | ||||||||||
| Audio In | N/A | ||||||||||
| Audio Out | N/A | ||||||||||
| IPC Alarm | N/A | ||||||||||
| Alarm In | N/A | ||||||||||
| Alarm Out | N/A | ||||||||||
| Ethernet | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||||
| Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||||||||
| Network Interoperability | N/A | ||||||||||
| Streaming Method | N/A | ||||||||||
| Network Max. Users | N/A | ||||||||||
| Storage | N/A | ||||||||||
| Storage Card | N/A | ||||||||||
| Web Viewer | N/A | ||||||||||
| Mobile | iPhone, Android | ||||||||||
| Video Output | N/A | ||||||||||
| Certifications | N/A | ||||||||||
| RS485 | N/A | ||||||||||
| Power Supply | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||||||
| Power Consumption | Max 5W | ||||||||||
| Operating Temperature | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | ||||||||||
| Storage Temperature | -35°C ~ +60°C (-31°F ~ 140°F) | ||||||||||
| Ingress Protection | IP67 | ||||||||||
| Dimensions | 126 x 94 mm (5.0” x 3.7”) | ||||||||||
| Weight | 0.33 kg (0.73lb) |
