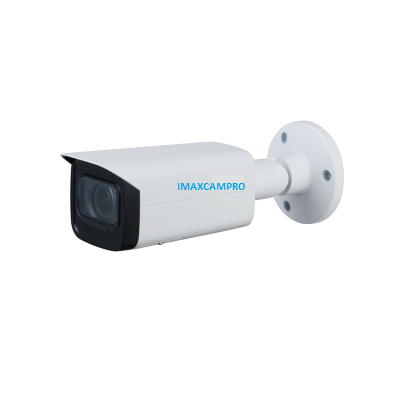

4MP Lite AI IR Vari-focal Bullet Network Camera

        4MP Lite AI IR Vari-focal Bullet Network Camera

        iMaxCamPro
        SKU: WECIIPC-HFW3441T-ZAS

        > 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
        > Outputs max. 4MP (2688 × 1520)@30 fps
        > H.265 codec, high compression rate, low bit rate
        > Built-in IR LED, max. IR distance: 60 m
        > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
        > Intelligent detection: Intrusion, tripwire
        > Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
        > Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
        > 12V DC/POE power support
        > IP67, IK10(optional) protection
        > SMD

          • 41% less
          Market price:$537.00 save $219.00
        • $318.00

        OR

        > 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
        > Outputs max. 4MP (2688 × 1520)@30 fps
        > H.265 codec, high compression rate, low bit rate
        > Built-in IR LED, max. IR distance: 60 m
        > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
        > Intelligent detection: Intrusion, tripwire
        > Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
        > Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
        > 12V DC/POE power support
        > IP67, IK10(optional) protection
        > SMD

        System Overview

        With advanced deep learning algorithm, Imaxcampro Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance.

        Functions

        Smart (H.265+ & H.264+)

        Adopting advanced algorithm of auto stream control according to the environment, Imaxcampro smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

        Wide dynamic range (WDR)

        Imaxcampro adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

        Starlight

        Imaxcampro Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

        Intelligent Video Analysis (IVS)

        With advanced video algorithm, Imaxcampro camera supports intelligent detection, such as tripwire and intrusion and so on.

        Smart Motion Detection (SMD)

        With intelligent algorithm, Imaxcampro Smart Motion Detection technology can effectively recognize the target types, flitting the motion detection alarm triggered by non-concerned target types. It can realize effective and accurate alarm.

        Protection (IP67, wide voltage) IP67:

        The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

        Camera

        Image Sensor

        1/3”4Megapixel progressive CMOS

        Effective Pixels

        2688 (H) ×1520 (V)

        ROM

        128 MB

        RAM

        512 MB

        Scanning System

        Progressive

        Electronic Shutter Speed

        Auto/Manual 1/3 s–1/100000 s

        Min. Illumination

        0.005 Lux@F1.5

        IR Distance

        60 m (197 ft)

        IR On/Off Control

        Auto/Manual

        IR LEDs Number

        4 (IR LEDs)

        Pan/Tilt/Rotation Range

        Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°

        Lens

        Lens Type

        Motorized vari-focal

        Mount Type

        φ14

        Focal Length

        2.7 mm–13.5 mm

        Max. Aperture

        F1.5

        Field of View

        Horizontal: 104°–27°
        Vertical: 55° –15°
        Diagonal: 124° –31°

        Iris Type

        Fixed aperture

        Close Focus Distance

        0.8 m (2.6 ft)

        DORI Distance

        Lens

        Detect

        Observe

        Recognize

        Identify

        W

        64.0 m (210.0ft)

        25.6 m

        (84.0 ft)

        12.8 m

        (42.0 ft)

        6.4 m

        (21.0 ft)

        T

        222.0 m (728.3 ft)

        88.8m

        (291.3 ft)

        44.4 m

        (145.7 ft)

        22.2 m

        (72.8 ft)

        Professional, Intelligent

        Perimeter Protection

        Tripwire; intrusion (Recognition of human and vehicle)

        Intelligent Search

        Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

        Video

        Video Compression

        H.265; H.264; H.264H; H.264B; MJPEG

        Smart Codec

        Yes

        Video Frame Rate

        Main stream (2688 × 1520@1–25/30 fps)
        sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
        third stream (1280 × 720@1–25/30 fps)

        Stream Capability

        3 streams

        Resolution

        4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

        Bit Rate Control

        CBR/VBR

        Video Bit Rate

        H.264: 3 Kbps–8192 Kbps
        H.265: 3 Kbps–8192 Kbps

        Day/Night

        Auto(ICR)/Color/B/W

        BLC

        Yes

        HLC

        Yes

        WDR

        120 dB

        White Balance

        Auto/natural/street lamp/outdoor/manual/regional custom

        Gain Control

        Auto/Manual

        Noise Reduction

        3D DNR

        Motion Detection

        OFF/ON (4 areas, rectangular)

        Region of Interest(RoI)

        Yes (4 areas)

        Smart IR

        Yes

        Image Rotation

        0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

        Mirror

        Yes

        Privacy Masking

        4 areas

        Audio

        Audio Compression

        G.711a; G.711Mu; G726; AAC

        Network

        Network

        RJ-45 (10/100 Base-T)

        Protocol

        IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
        RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

        Interoperability

        ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

        Scene Self-adaptation

        Yes

        User/Host

        20 (Total bandwidth: 64 M)

        Edge Storage

        FTP; SFTP; Micro SD Card (support max. 256 G);Cloud; NAS

        Browser

        IE: IE8, IE9, IE11

        Chrome

        Firefox

        Management Software

        Smart PSS, DSS, DMSS

        Mobile Phone

        IOS; Android

        Certification

        Certifications

        CE-LVD: EN60950-1
        CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
        FCC: 47 CFR FCC Part 15, Subpart B
        UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

        Port

        Audio Input

        1-channel (RCA port)

        Audio Output

        1-channel (RCA port)

        Alarm Input

        1 channel in: 5mA 3V–5V DC

        Alarm Output

        1 channel out: 300mA 12V DC

        Power

        Power Supply

        12V DC/PoE (802.3af)

        Power Consumption

        <9.8W

        Environment

        Operating Conditions

        -30°C to +60°C (-22°F to +140°F)/less than≤95%

        Strorage Conditions

        -40°C to +60°C (-40°F to +140°F)

        Ingress Protection

        IP67

        Structure

        Casing

        Metal

        Dimensions

        244.1 mm × 79.0 mm × 75.9 mm

        (9.6" × 3.1" × 3.0") (L × W × H)

        Net Weight

        820 g (1.8lb)

        Gross Weight

        1090 g (2.4lb)

        Data Sheet



        User Manual



        User Manual



        Drawings



        Drawings

          • SKU
            WECIIPC-HFW3441T-ZAS
          • Weight
            2.4 lbs
        • Manufacturer
          iMaxCamPro
        • Shipping Lead Time
          Ships Same Day
