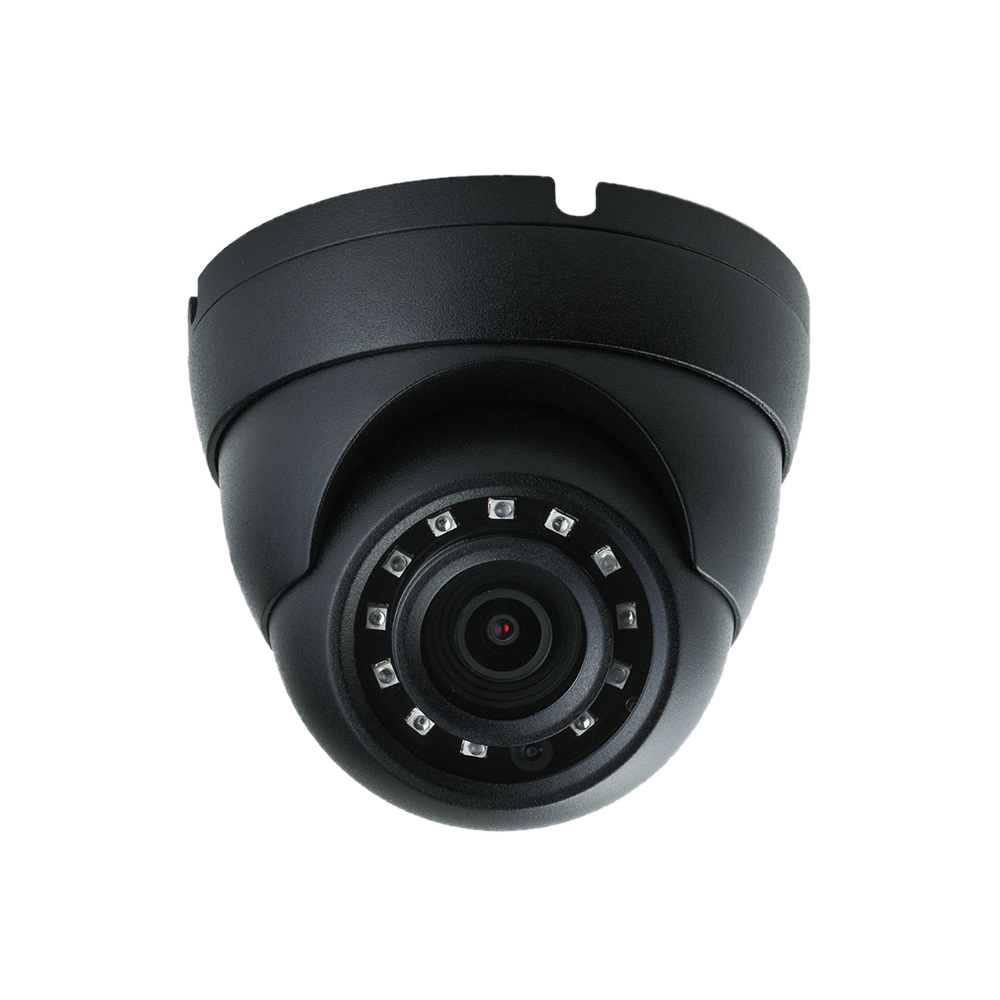

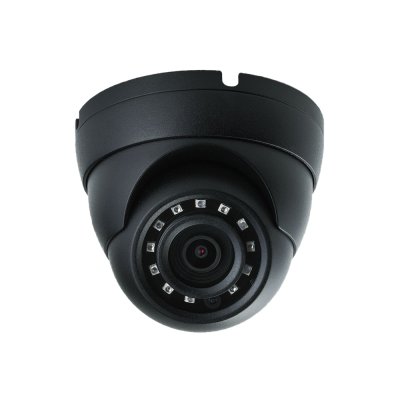

4MP WDR 2.8mm Lens IR Eyeball Network Camera Black | HNCB3V341M-IR/28

iMaxCamPro
SKU: WECICP-IPC4MPEB035

The IR Megapixel Fixed Eyeball camera delivers 4MP resolution with a choice of 2.8mm lens options. The camera's elegant blend of aesthetics combined with its compact form factor provides an excellent choice for a variety of small to mid-size, indoor/outdoor applications at an affordable price.

Features

  • 1/3” 4Megapixel progressive CMOS
  • H.265& H.264 dual-stream encoding
  • 20fps@4M(2688×1520) &25/30fps@3M(2304x1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, HLC, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • Max IR LEDs Length 30m
  • IP67, PoE
    • 49% less
    Market price:$350.00 save $170.00
  • $180.00

OR

The IR Megapixel Fixed Eyeball camera delivers 4MP resolution with a choice of 2.8mm lens options. The camera's elegant blend of aesthetics combined with its compact form factor provides an excellent choice for a variety of small to mid-size, indoor/outdoor applications at an affordable price.

Features

  • 1/3” 4Megapixel progressive CMOS
  • H.265& H.264 dual-stream encoding
  • 20fps@4M(2688×1520) &25/30fps@3M(2304x1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, HLC, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • Max IR LEDs Length 30m
  • IP67, PoE
More Information
Image Sensor1/3" CMOS
Image Size2688 (H) x 1520 (V)
RAM/ROM512MB/32MB
Electronic ShutterAuto/Manual, 1/3(4)~1/100000s
Minimum Illumination
  • 0.08Lux/F2.0( Color,1/35,30IRE)
  • 0.3Lux/F2.0( Color,1/305,30IRE)
  • 0Lux/F2.0(IR on)
S/N RatioMore than 45dB
IR LEDs12
Smart IRSupport
IR DistanceDistance up to 30m(98ft)
IR On/Off ControlAuto/ Manual
Focal Length2.8 mm
Angle of ViewH:104°/87°, V:57°/48°
Max. ApertureF2.0/F2.0
Optical ZoomN/A
Close Focus DistanceN/A
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm63(207ft)25(82ft)13(43ft)6(20ft)
Pan / Tilt / RotationPan:0°~360°;Tilt:0° ~90°; Rotation:0°~360°
Video CompressionH.265+/H.265/H.264+/H.264
Streaming Capability2 Streams
Video Resolution

4M(2688x1520/2560x1440)/3M(2304x1296)/ 1080P(1920x1080)/720P(1280x720)/ D1(704x576/704x480)/CIF(352x288/352x240)

Video Frame Rate
  • 4M(1 ~ 20fps)/3M (1~25/30fps)
  • D1/CIF(1 ~ 25/30fps)
Video Bitrate
  • H.265: 12K ~ 8448Kbps
  • H.264: 32K ~ 10240Kbp
Day / NightAuto(IR-Cut) / Color / B/W
BLC ModeBLC/ HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manua
Gain ControlAuto/Manua
Digital Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization (EIS)N/A
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 A rea, Rectangle)
Audio CompressionN/A
IPC AlarmN/A
Alarm InN/A
Alarm OutN/A
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AI Perimeter ProtectionN/A
Advanced AI FunctionsN/A
EthernetRJ-45 (10/100Base -T)
Network ProtocolIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Network InteroperabilityONVIF , PSIA , CGI
Streaming MethodUnicast / Multicast
Network Max. Users20
StorageNAS (Network Attached S torage), Local PC for instant recording
Storage CardN/A
Web ViewerIE 10 , Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
MobileiPhone, Android
Video OutputN/A
CertificationsCE (EN60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B
Audio InterfaceN/A
RS485N/A
Power SupplyDC12V
Power Consumption<4.68W
Operating Temperature-30°C ~ +55°C ( -22 °F ~ +131°F) / Less than 95% RH
Storage Temperature-30°C ~ +55°C ( -22 °F ~ +131°F) / Less than 95% RH
Ingress ProtectionIP67
Dimensions108mm x 84.99mm(4.25"x3.15")
Weight0.85lb
    • SKU
      WECICP-IPC4MPEB035
    • Weight
      1 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    2.8mm
  • Optical Zoom
    Fixed Lens
  • Shipping Lead Time
    Ships Same Day
  • Lens Type
    WDR
  • Infrared Distance
    30m (98 ft)
