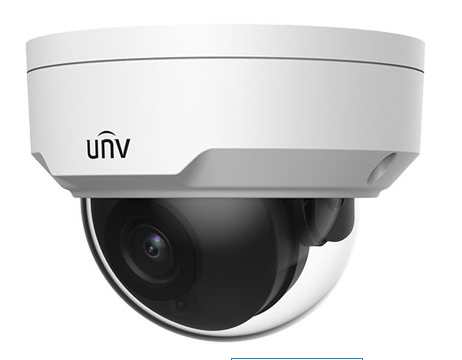

4MP WDR Network IR Fixed Dome Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 4MP WDR Network IR Fixed Dome Camera is a powerful and reliable surveillance camera that is designed to capture high-quality video footage in any lighting condition. With its advanced features and rugged construction, this camera is an excellent choice for indoor and outdoor applications.
One of the key features of this camera is its 4-megapixel resolution, which allows it to capture high-quality images and video footage. The camera also features a Wide Dynamic Range (WDR) technology that enables it to capture clear and detailed images in environments with challenging lighting conditions, such as areas with bright backlighting or strong contrasts.
The camera is also equipped with infrared (IR) illumination, which enables it to capture clear and detailed images even in complete darkness. This makes it an excellent choice for monitoring areas that require 24/7 surveillance, such as parking lots, warehouses, and other outdoor locations.
In addition, this camera features a fixed dome design that makes it easy to install and conceal, and it is equipped with a varifocal lens that allows users to adjust the focal length to suit their specific surveillance needs. The camera also features an IP67 weatherproof rating that ensures it is resistant to dust and water, making it suitable for use in outdoor environments.
Other features of this camera include support for Power over Ethernet (PoE), which eliminates the need for a separate power supply, and support for the ONVIF protocol, which makes it easy to integrate with other surveillance systems.
Overall, the 4MP WDR Network IR Fixed Dome Camera is a reliable and versatile surveillance camera that is well-suited for various applications. Its high-quality imaging technology, infrared illumination, and weather-resistant construction make it an excellent choice for monitoring outdoor areas and detecting potential security threats.
| IPC324SS-DF28K | IPC324SS-DF40K | ||||||||
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90 | 36 | 18 | 9 | |||||
| Angle of View (H) | 107.8° | 82° | |||||||
| Angle of View (V) | 57.0° | 41.6° | |||||||
| Angle of View (O) | 140.1° | 100.9° | |||||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate:3° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 40m (131ft) IR range | ||||||||
| wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
| Alarm I/O | 1/1 | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 4.5W | |||||||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||||||||
| Net Weight | 0.43kg (0.94lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| surge protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
| Vandal Resistant | IK10 | ||||||||
