5MP LightHunter Intelligent Mini Fixed Bullet Network Camera

UNV
SKU: IPC2125S1-ADF28(40)KM-I0

Optics

1/2.7’’, Powered by lighthunter

SmartIR, up to 50m (164 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

2592*1944@20fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

IP67 ingress protection

 IPC2125SS-ADF28KM-I0IPC2125SS-ADF40KM-I0
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64mm@F1.6
IrisFixed aperture
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.0(206.7ft)25.2(82.7ft)12.6(41.3ft)6.3(20.7ft)
490.0(295.3ft)36.0(118.1ft)18.0(59.1ft)9.0(29.5ft)
Field of View (H)97.7°79.6°
Field of View (V)68.5°56.6°
Field of View (D)127.0°97.9°
ShutterAuto/Manual, 1 ~ 1/100000s
Min. IlluminationColour:0.002lux (F1.6, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 50m (164 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265,H.265,H.264,MJPEG
Frame RateMain Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Intelligent
Smart intrusion PreventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP Address Filtering,, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Exception Detection And StatisticsObject Removed, Object Left Behind
Audio
Audio CompressionG.711U,G.711A
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
Ezview
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
AudioBuild-in Mic
Network1 x RJ45 10M/100M Base-TX Ethernet
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General

Power

DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 5W

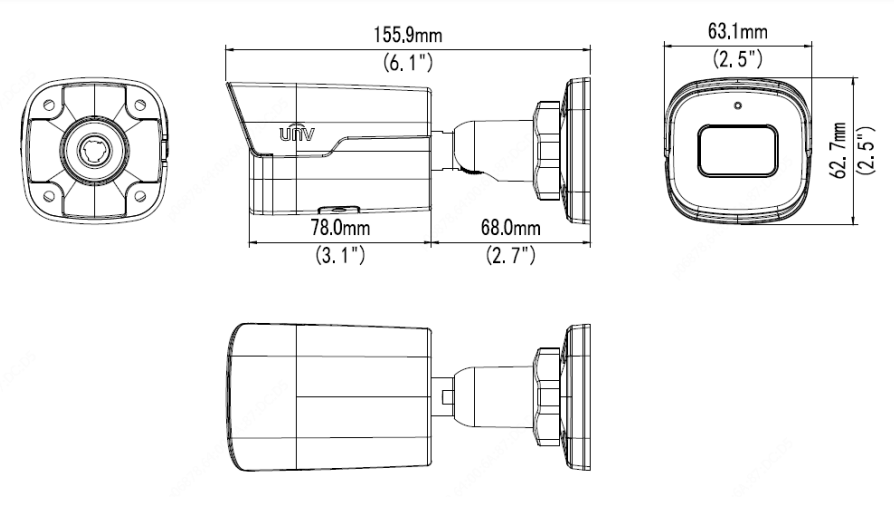

Dimensions (Ø x H)Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’)
Net Weight0.4kg(0.88lb)
MaterialMetal
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection2KV


Datasheet of IPC2125SS-ADF28(40)KM-I0

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00


    • 20% less
    Market price:$623.75 save $124.75
  • $499.00

OR

Optics

1/2.7’’, Powered by lighthunter

SmartIR, up to 50m (164 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

2592*1944@20fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

IP67 ingress protection

 IPC2125SS-ADF28KM-I0IPC2125SS-ADF40KM-I0
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64mm@F1.6
IrisFixed aperture
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.0(206.7ft)25.2(82.7ft)12.6(41.3ft)6.3(20.7ft)
490.0(295.3ft)36.0(118.1ft)18.0(59.1ft)9.0(29.5ft)
Field of View (H)97.7°79.6°
Field of View (V)68.5°56.6°
Field of View (D)127.0°97.9°
ShutterAuto/Manual, 1 ~ 1/100000s
Min. IlluminationColour:0.002lux (F1.6, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 50m (164 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265,H.265,H.264,MJPEG
Frame RateMain Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Intelligent
Smart intrusion PreventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP Address Filtering,, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Exception Detection And StatisticsObject Removed, Object Left Behind
Audio
Audio CompressionG.711U,G.711A
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
Ezview
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
AudioBuild-in Mic
Network1 x RJ45 10M/100M Base-TX Ethernet
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General

Power

DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 5W
Dimensions (Ø x H)Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’)
Net Weight0.4kg(0.88lb)
MaterialMetal
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection2KV


Datasheet of IPC2125SS-ADF28(40)KM-I0

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00



    • SKU
      IPC2125S1-ADF28(40)KM-I0
  • Manufacturer
    UNV
