5MP Network IR Bullet Camera SV-BV5-N
Optics
Day/night functionality Smart IR, up to 50m (164ft) IR distance Up to 120 dB Optical WDR (Wide Dynamic Range) 2D/3D DNR (Digital Noise Reduction)Compression
Ultra 265, H.265, H.264, MJPEG Triple streams ROI (Region of Interest) Customized OSDNetwork
ONVIF ConformanceStructure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) Wide voltage range of ±25% IP67 3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews

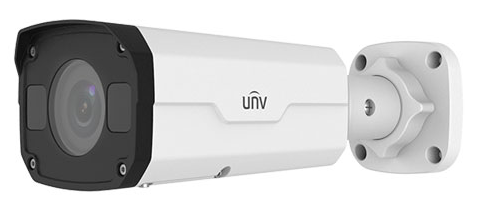

The 5MP Network IR Bullet Camera SV-BV5-N is a high-performance surveillance camera that is designed to deliver the excellent image quality and reliable performance in a wide range of surveillance applications. This camera is ideal for both indoor and outdoor use, including retail stores, office buildings, and other commercial properties.
One of the key features of this camera is its 5-megapixel resolution, which allows it to capture high-quality video footage with excellent clarity and detail. The camera also features infrared (IR) illumination, which enables it to capture clear images in low-light and nighttime conditions. This feature makes it an ideal choice for 24/7 surveillance.
The camera is equipped with a fixed 3.6mm lens, which provides a wide field of view, making it an ideal choice for monitoring large areas or multiple points of interest. The camera also features advanced image processing technology, such as 3D-DNR (Digital Noise Reduction), which helps to reduce image noise and enhance image quality.
The camera's rugged construction is another important feature. It is IP67 rated, which means it is resistant to dust and water and can operate in extreme temperatures. Additionally, the camera is housed in a durable metal casing, which makes it resistant to vandalism and other types of tampering.
Other important features of the 5MP Network IR Bullet Camera SV-BV5-N include support for Power over Ethernet (PoE), which eliminates the need for a separate power supply, and support for ONVIF protocol, which allows for easy integration with other surveillance systems.
Overall, the 5MP Network IR Bullet Camera SV-BV5-N is a reliable and versatile surveillance camera that is well-suited for a wide range of indoor and outdoor applications. Its high-quality imaging technology, infrared illumination, and rugged construction make it an excellent choice for monitoring high-traffic areas and detecting potential security threats.
| IPC2325SBR5-DPZ-F | |||||||
| Camera | |||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.1 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270.3 | 108.1 | 54.1 | 27.0 | |||
| Angle of View (H) | 96.23°~ 31.69° | ||||||
| Angle of View (V) | 69.98°~ 24.28° | ||||||
| Angle of View (O) | 125.10°~37.39° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >56 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| · H.264 code profile | · Baseline profile, Main Profile | ||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream:4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||
| Dewarping | NA | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 9.5W | |||||||

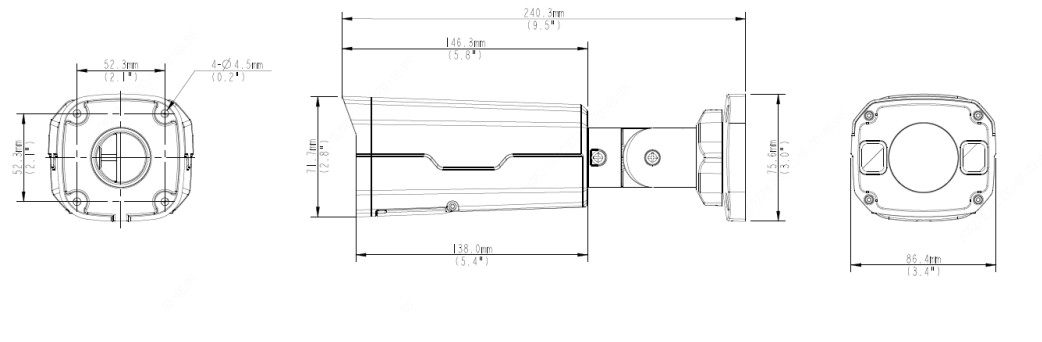

| Dimensions (L × W × H) | 240.3 × 86.4 × 75.6mm (9.5” × 3.4” × 3.0”) | ||||||
| Net Weight | 1.0kg (2.2lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
