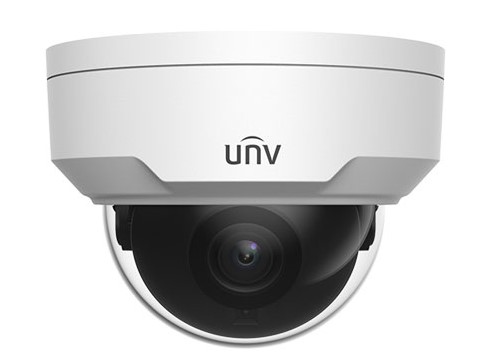

5MP WDR Network IR Fixed Dome Camera
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
Day/night functionality Smart IR, up to 30m (98ft) IR distance Up to 120 dB WDR (Wide Dynamic Range) 2D/3D DNR (Digital Noise Reduction)Compression
Ultra 265, H.264, MJPEG ROI (Region of Interest) Customized OSDNetwork
ONVIF ConformanceStructure
Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F) Wide input voltage range of ±25% IK10 vandal resistant IP67 3-Axis
The 5MP WDR Network IR Fixed Dome Camera is a high-performance security camera designed for indoor and outdoor use. With a 5MP resolution and advanced features, this camera provides clear and detailed video footage, making it an ideal solution for monitoring residential, commercial, and industrial properties.
The camera features advanced WDR (Wide Dynamic Range) technology, which allows it to capture clear images in both bright and dark lighting conditions. It also has infrared (IR) technology that enables it to capture clear images in low-light conditions.
With a 2.8mm fixed lens, this camera provides a wide 99-degree field of view, making it suitable for monitoring large areas. The camera also supports Power over Ethernet (PoE) for easy installation and maintenance, and it can be easily integrated into a network video recorder (NVR) for a complete security solution.
The camera has a rugged and weather-resistant design, with an IP67 rating, making it suitable for outdoor use. It also features a metal housing that provides additional protection against vandalism and tampering.
The camera supports intelligent features such as motion detection, face detection, and intrusion detection, which can help to reduce false alarms and provide more accurate alerts. It also has local storage capability with a microSD card slot, which allows for convenient and reliable video storage.
Overall, the 5MP WDR Network IR Fixed Dome Camera is an excellent choice for anyone looking for a high-performance security camera with advanced features. With its WDR technology, infrared capabilities, weather-resistant design, and local storage capability, this camera is ideal for a wide range of applications, including residential and commercial security, industrial monitoring, and more.
| IPC325SR3-DVPF28-F | IPC325SR3-DVPF40-F | |||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.1 | 25.2 | 12.6 | 6.3 | ||
| 4.0 | 90.1 | 36.0 | 18.0 | 9.0 | ||
| Angle of View (H) | 105.6° | 80.0° | ||||
| Angle of View (V) | 69.9° | 52.2° | ||||
| Angle of View (O) | 137.3° | 98.4° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour:0.01 Lux (F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >56dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | NA | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 5.5W | ||||||

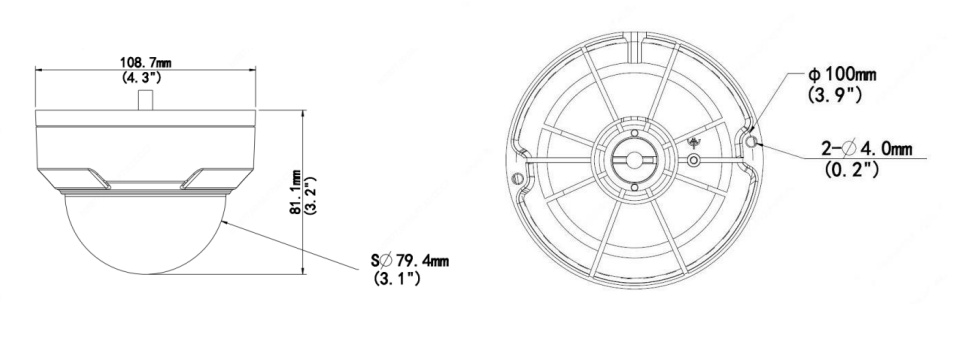

| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | |||||
| Net Weight | 0.45kg (0.99lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 2KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
IPC325SR3-DVPF28-F.pdf770.4 kB
