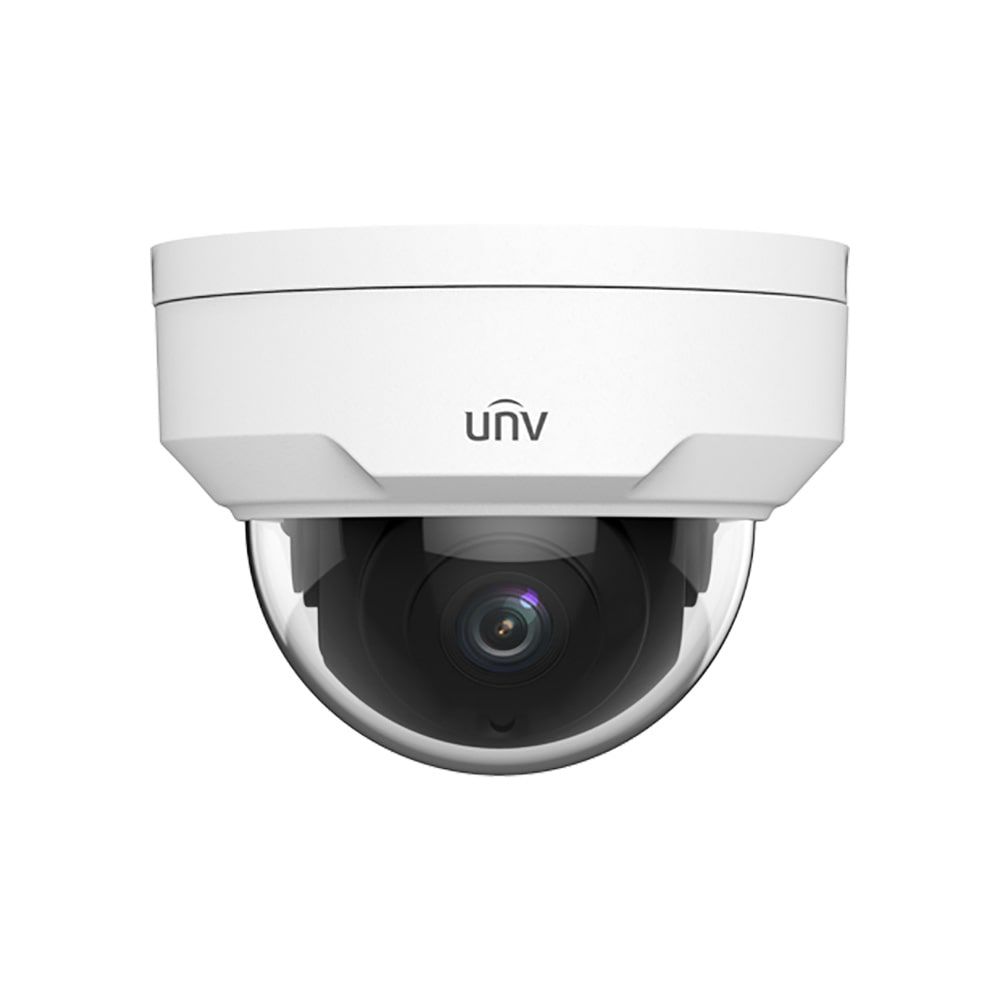

        UNV 5MP Vandal-resistant Network IR Fixed Dome Camera UN-IPC325LR3VSPF28D

        Uniview
        SKU: IPC325LR3VSPF28D

        Features



        • Day/night functionality
        • Smart IR, up to 30 m (98 ft) IR distance
        • 2D/3D DNR (Digital Noise Reduction)
        • Ultra 265,H.265,H.264,MJPEG
        • ROI (Region of Interest)

        Intrusion Detection

        • ONVIF Conformance
        • Support PoE power supply
        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide voltage range of ±25%
        • IK10 vandal resistant
        • IP67
        • 2-Axis
        More Information
        Image Sensor1/2.7", 5Megapixel, progressive scan, CMOS
        Image Size2592 x 1944
        Electronic ShutterAuto/Manual, 1~1/100000 s
        Minimum Illumination

        Color: 0.01 Lux (F2.0, AGC ON),
        B/W: 0 Lux with IR on

        Focal Length2.8mm
        DORI Distance
        LensDetect(m)Observe(m)Recognize(m)Identify(m)
        2.8mm4216.88.44.2
        IR DistanceUp to 30m (98 ft) IR range
        S/N Ratio> 52dB
        Angle of ViewH: 105.3° / V: 69.5° / O: 136.9°
        Angle Adjustment

        Pan: 0°~360°, Tilt: 0°~75°

        Wide Dynamic RangeDWDR
        OSDYes
        Video CompressionUltra 265,H.265, H.264, MJPEG
        Video Resolution

        5MP / 4MP / 3MP / 2MP / 1MP

        Video Frame Rate

        Main Stream: 5MP (2592*1944): Max. 15 fps;
        Sub Stream:720P (1280*720): Max.20 fps;

        9:16 Corridor ModeSupported
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeSupported
        HLCSupported
        ROIUp to 2 areas
        Digital Noise Reduction2D / 3D DNR
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 8 areas
        Statistical AnalysisPeople counting
        General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
        Ethernet10M/100M Base-TX Ethernet
        Network ProtocolIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
        Network InteroperabilityONVIF, API
        Web ViewerIE web browser
        MobileiPhone, Android
        Power Supply12 V DC±25% / PoE (IEEE802.3 af)
        Power ConsumptionMax 4W
        Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
        Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
        Ingress ProtectionIP67, IK10
        Dimensions109 x 81mm ( 4.3” x 3.2”)
        Weight0.35kg (0.77lb)





          • 42% less
          Market price:$395.00 save $165.00
        • $230.00

        OR

        Features



        • Day/night functionality
        • Smart IR, up to 30 m (98 ft) IR distance
        • 2D/3D DNR (Digital Noise Reduction)
        • Ultra 265,H.265,H.264,MJPEG
        • ROI (Region of Interest)

        Intrusion Detection

        • ONVIF Conformance
        • Support PoE power supply
        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide voltage range of ±25%
        • IK10 vandal resistant
        • IP67
        • 2-Axis
        More Information
        Image Sensor1/2.7", 5Megapixel, progressive scan, CMOS
        Image Size2592 x 1944
        Electronic ShutterAuto/Manual, 1~1/100000 s
        Minimum Illumination

        Color: 0.01 Lux (F2.0, AGC ON),
        B/W: 0 Lux with IR on

        Focal Length2.8mm
        DORI Distance
        LensDetect(m)Observe(m)Recognize(m)Identify(m)
        2.8mm4216.88.44.2
        IR DistanceUp to 30m (98 ft) IR range
        S/N Ratio> 52dB
        Angle of ViewH: 105.3° / V: 69.5° / O: 136.9°
        Angle Adjustment

        Pan: 0°~360°, Tilt: 0°~75°

        Wide Dynamic RangeDWDR
        OSDYes
        Video CompressionUltra 265,H.265, H.264, MJPEG
        Video Resolution

        5MP / 4MP / 3MP / 2MP / 1MP

        Video Frame Rate

        Main Stream: 5MP (2592*1944): Max. 15 fps;
        Sub Stream:720P (1280*720): Max.20 fps;

        9:16 Corridor ModeSupported
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeSupported
        HLCSupported
        ROIUp to 2 areas
        Digital Noise Reduction2D / 3D DNR
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 8 areas
        Statistical AnalysisPeople counting
        General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
        Ethernet10M/100M Base-TX Ethernet
        Network ProtocolIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
        Network InteroperabilityONVIF, API
        Web ViewerIE web browser
        MobileiPhone, Android
        Power Supply12 V DC±25% / PoE (IEEE802.3 af)
        Power ConsumptionMax 4W
        Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
        Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
        Ingress ProtectionIP67, IK10
        Dimensions109 x 81mm ( 4.3” x 3.2”)
        Weight0.35kg (0.77lb)
