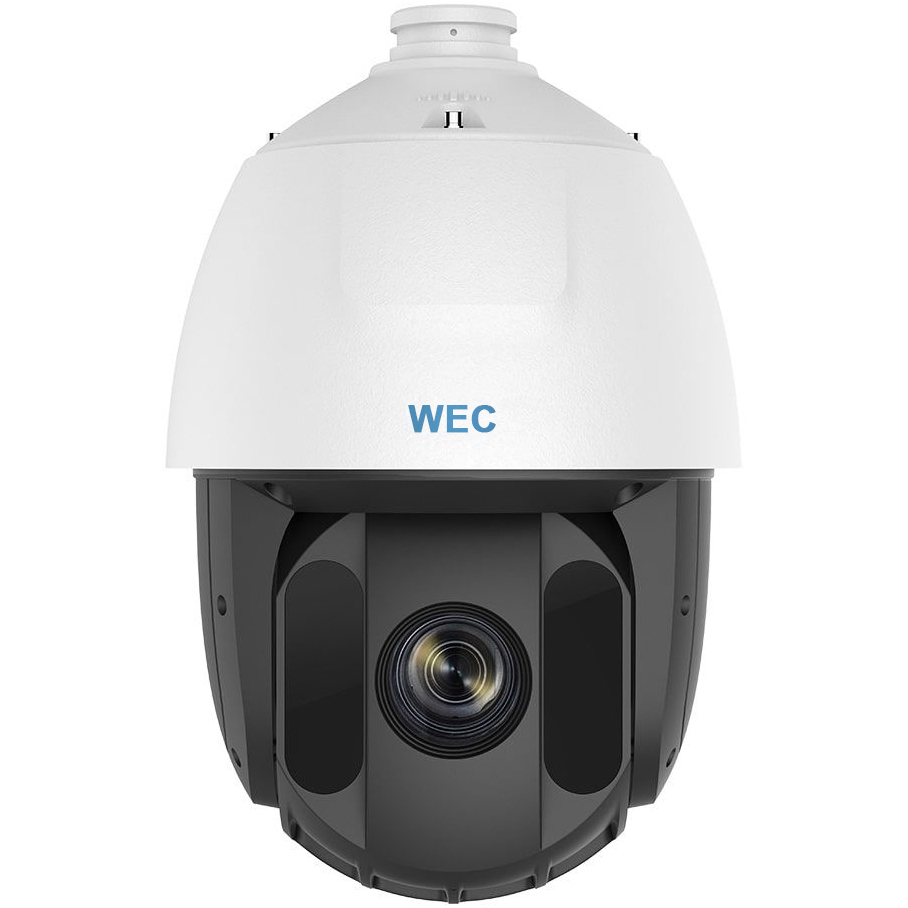

4MP 25× Network IR Speed Dome | SPT5C425IR-E
Features
- 1/2.5" progressive scan CMOS
- Up to 2560 × 1440@30fps resolution
- Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- 24 VAC & PoE++
- Up to 150 m IR distance
- Support H.265+/H.265 video compression
- Audio input/output
- Alarm input/output
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Features
- 1/2.5" progressive scan CMOS
- Up to 2560 × 1440@30fps resolution
- Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- 24 VAC & PoE++
- Up to 150 m IR distance
- Support H.265+/H.265 video compression
- Audio input/output
- Alarm input/output
| Image Sensor | 1/2.5" progressive scan CMOS | ||||||
|---|---|---|---|---|---|---|---|
| Image Size | 2560 × 1440 | ||||||
| Electronic Shutter | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s | ||||||
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) | ||||||
| Day / Night | IR cut filter | ||||||
| BLC Mode | Yes | ||||||
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | ||||||
| Digital Noise Reduction | 3D DNR | ||||||
| Privacy Masking | 24 programmable privacy masks | ||||||
| Optical Zoom | 25× | ||||||
| Digital Zoom | 16× | ||||||
| Wide Dynamic Range | 120 dB | ||||||
| Focal Length | 4.8 mm to 120 mm | ||||||
| Max. Aperture | F1.6 to F3.5 | ||||||
| Working Distance | 10 mm to 1500 mm (wide-tele) | ||||||
| Angle of View | Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele) | ||||||
| IR Distance | 150 m | ||||||
| Smart IR | Support | ||||||
| Pan Range | 360° endless | ||||||
| Pan Speed | Configurable, from 0.1°/s to 120°/s, Preset Speed: 120°/s | ||||||
| Tilt Range | From -15° to 90° (Auto-flip) | ||||||
| Tilt Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s | ||||||
| Number of Preset | 300 | ||||||
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | ||||||
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan | ||||||
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | ||||||
| PTZ Position Display | Yes | ||||||
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | ||||||
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG H.264 with Baseline/Main/High Profile | ||||||
| Video Resolution | 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720 | ||||||
| Video Frame Rate |
| ||||||
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus | ||||||
| Basic Event | Motion Detection, Video Tampering Detection, Exception | ||||||
| Smart Event Detection | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection | ||||||
| Smart Tracking | Tracking the specified target | ||||||
| ROI | Main stream, sub-stream, and third stream respectively support four fixed areas. | ||||||
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | ||||||
| Audio Bitrate | G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps to 160 Kbps | ||||||
| Audio In | 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10% | ||||||
| Audio Out | 1-ch audio output, line level, impedance: 600 Ω | ||||||
| Alarm In | 2-ch alarm input | ||||||
| Alarm Out | 1-ch alarm output | ||||||
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface | ||||||
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. | ||||||
| Network Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour | ||||||
| Network Max. Users | Up to 32 users 3 levels: Administrator, Operator and User | ||||||
| Network Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK | ||||||
| Storage | Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR | ||||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering | ||||||
| Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | ||||||
| Web Viewer | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ | ||||||
| Power Supply | 24 VAC, PoE++ | ||||||
| Power Consumption | Max.: 30 W, including max. 10W for IR | ||||||
| Operating Temperature | Outdoor: -30°C to 65°C (-22°F to 149°F), Working Humidity ≤ 90% | ||||||
| Ingress Protection | IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||||
| Dimensions | Φ 208 mm × 345 mm (Φ 8.19" × 13.58") | ||||||
| Weight | Approx. 3.3 kg (7.28 lb) |
