- 66% less

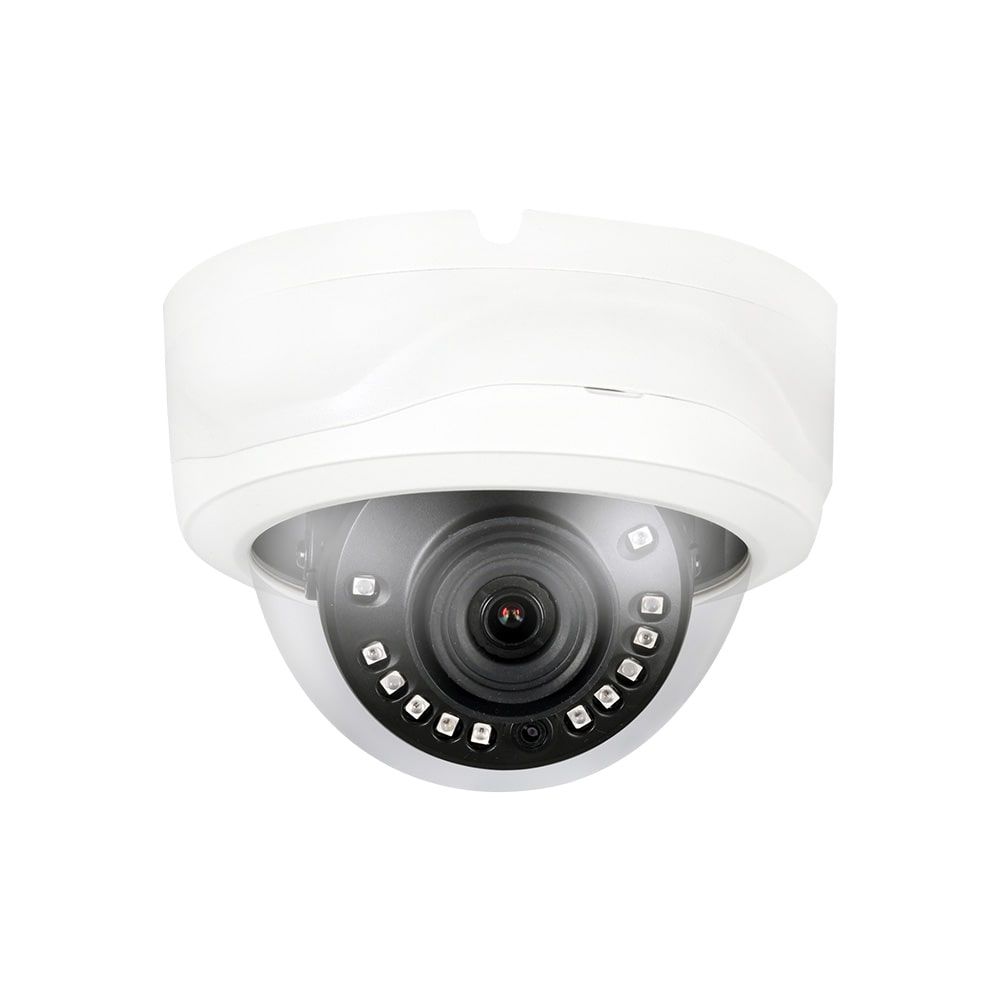

5MP 2.8mm Lens HDCVI IR Dome Camera | HCC3250E-IR/28
SKU: IMX-HCC3250E-IR/28Features
- Max. 20fps@5MP
- HD and SD output switchable
- 2.8mm fixed lens
- Max. IR length 30m, Smart IR
- IP67, IK10, DC12V
More InformationImage Sensor1/2.7" CMOSImage Size2592(H)×1944(V), 5MPElectronic ShutterPAL: 1/25~1/100000s NTSC: 1/30~1/100000sMinimum Illumination0.02Lux/F1.85, 30IRE, 0Lux IR onS/N RatioMore than 65dBIR LEDs12Smart IRSupportIR DistanceUp to 30m (98feet)IR On/Off ControlAuto / ManualFocal Length2.8mmAngle of ViewH: 77.5° (98°)Max. ApertureF1.85Optical ZoomN/AClose Focus Distance1400mm 55"DORI Distance
Pan / Tilt / RotationPan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°Video CompressionN/AVideo Resolution5MP (2592×1944)Video Frame Rate20fps@5MP, 25/30fps@4MP, 25/30fps@1080PDay / NightAuto (ICR) / ManualBLC ModeBLC / HLC / DWDRWhite BalanceAuto / ManualGain ControlAGCDigital Noise Reduction2DMotion DetectionN/AAudio CompressionN/AVideo Output1-channel BNC high definition video output / CVBS video output (Can switch)CertificationsCE (EN55032, EN55024, EN50130-4)DORI Definition Distance Detect 25px/m(8px/ft) 80m(262ft) Observe 63px/m(19px/ft) 32m(105ft) Recognize 125px/m(38px/ft) 16m(53ft) Identify 250px/m(76px/ft) 8m(26ft)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)Audio InterfaceN/ARS485N/AAlarm InN/AAlarm OutN/APower Supply12V DC ±30%Power ConsumptionMax. 4.2W (12V DC, IR on)Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)Storage Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RHIngress ProtectionIP67, IK10Dimensions109.9mm×81.0mm (4.33"×3.19")WeightNet Weight 0.31kg (0.68lb) Gross Weight 0.45kg (0.99lb)
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Features
- Max. 20fps@5MP
- HD and SD output switchable
- 2.8mm fixed lens
- Max. IR length 30m, Smart IR
- IP67, IK10, DC12V
More InformationImage Sensor1/2.7" CMOSImage Size2592(H)×1944(V), 5MPElectronic ShutterPAL: 1/25~1/100000s NTSC: 1/30~1/100000sMinimum Illumination0.02Lux/F1.85, 30IRE, 0Lux IR onS/N RatioMore than 65dBIR LEDs12Smart IRSupportIR DistanceUp to 30m (98feet)IR On/Off ControlAuto / ManualFocal Length2.8mmAngle of ViewH: 77.5° (98°)Max. ApertureF1.85Optical ZoomN/AClose Focus Distance1400mm 55"DORI Distance
Pan / Tilt / RotationPan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°Video CompressionN/AVideo Resolution5MP (2592×1944)Video Frame Rate20fps@5MP, 25/30fps@4MP, 25/30fps@1080PDay / NightAuto (ICR) / ManualBLC ModeBLC / HLC / DWDRWhite BalanceAuto / ManualGain ControlAGCDigital Noise Reduction2DMotion DetectionN/AAudio CompressionN/AVideo Output1-channel BNC high definition video output / CVBS video output (Can switch)CertificationsCE (EN55032, EN55024, EN50130-4)DORI Definition Distance Detect 25px/m(8px/ft) 80m(262ft) Observe 63px/m(19px/ft) 32m(105ft) Recognize 125px/m(38px/ft) 16m(53ft) Identify 250px/m(76px/ft) 8m(26ft)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)Audio InterfaceN/ARS485N/AAlarm InN/AAlarm OutN/APower Supply12V DC ±30%Power ConsumptionMax. 4.2W (12V DC, IR on)Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)Storage Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RHIngress ProtectionIP67, IK10Dimensions109.9mm×81.0mm (4.33"×3.19")WeightNet Weight 0.31kg (0.68lb) Gross Weight 0.45kg (0.99lb)
- ManufactureriMaxCamPro
- Camera TypeBox
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
