        Uniview IPC325SBDF28KI0 | UNV 5MP Fixed Dome Network Security Camera

        SKU: WEC-IPC325SBDF28KI0
        Uniview
        SKU: WEC-IPC325SBDF28KI0

        Features



        Optics

        • Day/night functionality
        • Smart IR, up to 30m (98ft) IR distance Up
        • to 120 dB WDR (Wide Dynamic Range)
        • 2D/3D DNR (Digital Noise Reduction)



        Compression

        • Ultra 265, H.264, MJPEG
        • ROI (Region of Interest)
        • Customized OSD



        Network

        • ONVIF Conformance



        Structure

        • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
        • Wide input voltage range of ±25%
        • IK10 vandal resistant
        • IP67
        • 3-Axis



        More Information
        Image Size2688(H) x1520(V)
        Electronic ShutterAuto/Manual, 1/3(4)~1/100000s
        Minimum IlluminationColour:0.003 Lux (F1.6, AGC ON) 0Lux with IR
        Focal Length2.8mm
        DORI Distance

        Lens

        Detect

        Observe

        Recognize

        Identify

        2.8mm

        63m(207ft)

        25.2m(83ft)

        12.6m(41ft)

        6.3m(21ft)

        IR DistanceDistance up to 30m(98ft)
        S/N RatioMore than 56dB
        Angle of ViewAngle of View (H) 112.7° Angle of View (V) 60.1° Angle of View (O) 146.5°
        Angle AdjustmentAdjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
        DefogDigital Defog
        Wide Dynamic Range120dB
        OSDNo
        Video CompressionUltra 265, H.265, H.264, MJPEG
        Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeYes
        HLCYes
        ROIUp to 8 areas
        Digital Noise Reduction2D/3D DNR
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 4 areas
        Behavior DetectionLine crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection
        Statistical AnalysisPeople counting
        Audio CompressionG.711
        Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
        Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
        Alarm In1CH
        Alarm Out1CH
        Ethernet1 RJ45 10M/100M Base-TX Ethernet
        Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
        Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
        StorageANR
        Storage CardMirco SD card 256GB
        Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        MobileiPhone, Android
        CertificationsCE: EN 60950-1
        UL: UL60950-1
        FCC: FCC Part 15
        Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
        Operating Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
        Storage Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
        Ingress ProtectionIP67,IK10
        DimensionsΦ108.7 x 81.1mm (Ø4.3” x 3.2”)
        Weight0.45kg (0.99lb)



        • $375.00

        OR

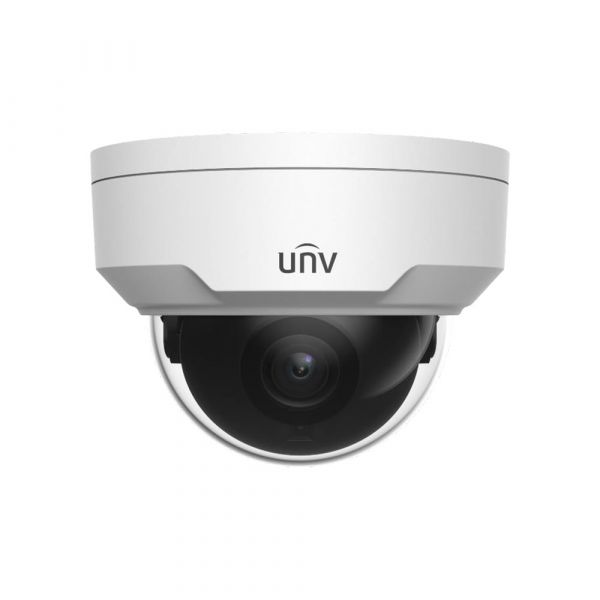

        The Uniview IPC325SBDF28KI0 is a 5MP fixed dome network security camera that offers high-quality video surveillance for a variety of applications. This camera features a 1/2.7" progressive scan CMOS image sensor and can capture video at up to 5MP resolution.

        With its advanced image processing technology, this camera provides clear and detailed images in both day and night conditions. It features a true day/night function that automatically switches between color and black and white modes depending on lighting conditions, and its Smart IR technology ensures that images are evenly illuminated in low-light conditions.

        This fixed dome camera has a 2.8mm fixed lens and a 110-degree field of view, making it ideal for monitoring wide areas. It also supports H.265 and H.264 video compression, which reduces storage and bandwidth requirements without sacrificing video quality.

        In terms of installation, the Uniview IPC325SBDF28KI0 camera is designed for ease of use. It supports Power over Ethernet (PoE) technology, which allows for easy installation and eliminates the need for separate power supplies. It can also be easily integrated with other security systems and devices, such as NVRs and alarms, using ONVIF compliance.

        Overall, the Uniview IPC325SBDF28KI0 fixed dome network security camera is a reliable and high-performance surveillance solution for a wide range of applications, from small businesses to large enterprises.

        Features

        Optics

        • Day/night functionality
        • Smart IR, up to 30m (98ft) IR distance Up
        • to 120 dB WDR (Wide Dynamic Range)
        • 2D/3D DNR (Digital Noise Reduction)



        Compression

        • Ultra 265, H.264, MJPEG
        • ROI (Region of Interest)
        • Customized OSD



        Network

        • ONVIF Conformance



        Structure

        • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
        • Wide input voltage range of ±25%
        • IK10 vandal resistant
        • IP67
        • 3-Axis



        More Information
        Image Size2688(H) x1520(V)
        Electronic ShutterAuto/Manual, 1/3(4)~1/100000s
        Minimum IlluminationColour:0.003 Lux (F1.6, AGC ON) 0Lux with IR
        Focal Length2.8mm
        DORI Distance

        Lens

        Detect

        Observe

        Recognize

        Identify

        2.8mm

        63m(207ft)

        25.2m(83ft)

        12.6m(41ft)

        6.3m(21ft)

        IR DistanceDistance up to 30m(98ft)
        S/N RatioMore than 56dB
        Angle of ViewAngle of View (H) 112.7° Angle of View (V) 60.1° Angle of View (O) 146.5°
        Angle AdjustmentAdjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
        DefogDigital Defog
        Wide Dynamic Range120dB
        OSDNo
        Video CompressionUltra 265, H.265, H.264, MJPEG
        Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeYes
        HLCYes
        ROIUp to 8 areas
        Digital Noise Reduction2D/3D DNR
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 4 areas
        Behavior DetectionLine crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection
        Statistical AnalysisPeople counting
        Audio CompressionG.711
        Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
        Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
        Alarm In1CH
        Alarm Out1CH
        Ethernet1 RJ45 10M/100M Base-TX Ethernet
        Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
        Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
        StorageANR
        Storage CardMirco SD card 256GB
        Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        MobileiPhone, Android
        CertificationsCE: EN 60950-1
        UL: UL60950-1
        FCC: FCC Part 15
        Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
        Operating Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
        Storage Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
        Ingress ProtectionIP67,IK10
        DimensionsΦ108.7 x 81.1mm (Ø4.3” x 3.2”)
        Weight0.45kg (0.99lb)
