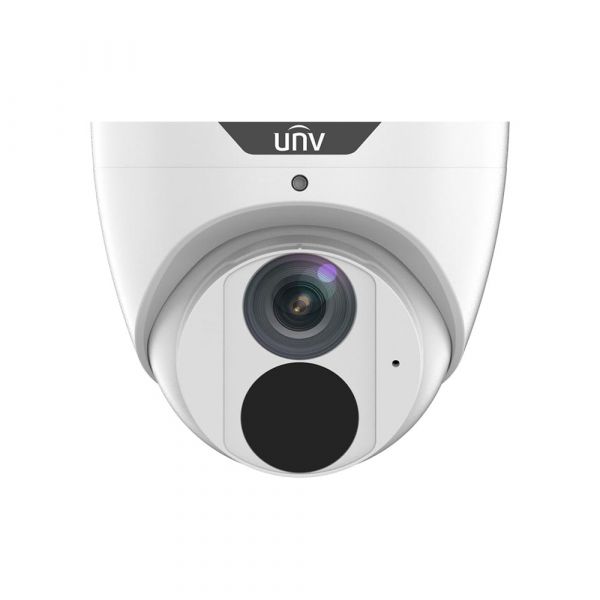

        5MP Fixed Dome Network Security Camera UN-IPC3615SBADF28KMI0

        SKU: WEC-IPC3615SBADF28KMI0
        Uniview
        SKU: WEC-IPC3615SBADF28KMI0

        Optics

        • Day/night functionality
        • Smart IR , up to 30 m (98 ft) IR distance
        • Optical glass window with higher light transmittance
        • IR anti-reflection window to increase the infrared transmittance 2D/3D DNR (Digital Noise Reduction)

        Compression

        • Ultra 265, H.265, H.264, MJPEG
        • ROI (Region of Interest)

        Network

        • ONVIF Conformance

        Structure

        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide voltage range of ±25%
        • Micro SD, up to 256 GB
        • Built-in Mic
        • IP67
        • 3-Axis



        More Information
        Image Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
        Image Size2880*1620
        Electronic ShutterAuto/Manual, 1 ~ 1/100000s
        Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
        Focal Length2.8mm@F1.6
        DORI Distance
        Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
        2.86325.212.66.3
        49036189
        IR DistanceDistance up to 30m (98.43ft)
        S/N RatioMore than 56dB
        Angle of ViewHorizontal: 112.7° ; Vertical: 60.1° ; Diagnal: 146.5°
        Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
        OSDYes
        Video CompressionUltra 265, H.265, H.264, MJPEG
        Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeYes
        HLCYes
        ROIUp to 8 areas
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 4 areas
        Statistical AnalysisPeople counting
        Audio CompressionG.711
        Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
        Network InteroperabilityONVIF (Profile S, Profile T), API
        StorageANR
        Storage CardMicro SD, up to 256GB
        Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        MobileiPhone, Android
        Video OutputUltra 265, H.265, H.264, MJPEG
        CertificationsCE: EN 60950-1
        UL: UL60950-1
        FCC: FCC Part 15
        Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
        Power ConsumptionPower consumption: Max 5.5W
        Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Ingress ProtectionIP67
        DimensionsΦ110.5 x 94.1mm (Φ4.4” x 3.7”)
        Weight0.33kg (0.73lb)
          • 33% less
          Market price:$375.00 save $125.00
        • $250.00

        OR

        The 5MP Fixed Dome Network Security Camera UN-IPC3615SBADF28KMI0 from Uniview is a high-quality surveillance camera that is perfect for indoor use in homes, businesses, and other locations. This camera features a 5-megapixel progressive scan CMOS image sensor that provides clear and detailed images at resolutions of up to 2560 x 1920. It also features a 2.8mm fixed lens with a 98° field of view, which is ideal for monitoring wide areas.

        The camera features true day/night functionality with an IR cut filter that switches on and off automatically to ensure optimal image quality in all lighting conditions. It also has built-in IR illuminators that provide up to 30 meters of night vision, making it ideal for use in low-light environments.

        The UN-IPC3615SBADF28KMI0 also comes with advanced video analytics such as face detection, intrusion detection, and line crossing detection, which can be used to trigger alarms and alerts when suspicious activity is detected. It supports H.265, H.264, and MJPEG video compression, and can be powered by PoE (Power over Ethernet) for easy installation.

        With a vandal-resistant design, this camera is built to withstand harsh environments and attempts at tampering. It also supports IP67 weatherproofing, which means it can be used outdoors without worry of damage from rain, dust, or other weather conditions.

        Overall, the UN-IPC3615SBADF28KMI0 5MP Fixed Dome Network Security Camera from Uniview is a reliable and feature-rich surveillance camera that can provide clear and detailed video footage in a wide range of environments.

        Optics

        • Day/night functionality
        • Smart IR , up to 30 m (98 ft) IR distance
        • Optical glass window with higher light transmittance
        • IR anti-reflection window to increase the infrared transmittance 2D/3D DNR (Digital Noise Reduction)

        Compression

        • Ultra 265, H.265, H.264, MJPEG
        • ROI (Region of Interest)

        Network

        • ONVIF Conformance

        Structure

        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide voltage range of ±25%
        • Micro SD, up to 256 GB
        • Built-in Mic
        • IP67
        • 3-Axis



        More Information
        Image Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
        Image Size2880*1620
        Electronic ShutterAuto/Manual, 1 ~ 1/100000s
        Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
        Focal Length2.8mm@F1.6
        DORI Distance
        Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
        2.86325.212.66.3
        49036189
        IR DistanceDistance up to 30m (98.43ft)
        S/N RatioMore than 56dB
        Angle of ViewHorizontal: 112.7° ; Vertical: 60.1° ; Diagnal: 146.5°
        Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
        OSDYes
        Video CompressionUltra 265, H.265, H.264, MJPEG
        Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeYes
        HLCYes
        ROIUp to 8 areas
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 4 areas
        Statistical AnalysisPeople counting
        Audio CompressionG.711
        Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
        Network InteroperabilityONVIF (Profile S, Profile T), API
        StorageANR
        Storage CardMicro SD, up to 256GB
        Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        MobileiPhone, Android
        Video OutputUltra 265, H.265, H.264, MJPEG
        CertificationsCE: EN 60950-1
        UL: UL60950-1
        FCC: FCC Part 15
        Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
        Power ConsumptionPower consumption: Max 5.5W
        Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Ingress ProtectionIP67
        DimensionsΦ110.5 x 94.1mm (Φ4.4” x 3.7”)
        Weight0.33kg (0.73lb)
