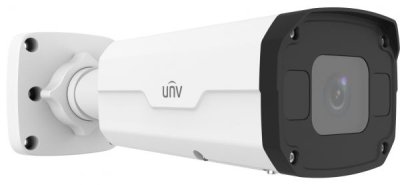

Uniview IPC2325SBDZKI0 | UNV 5MP HD Smart Bullet Network Security Camera

Uniview
SKU: WEC-2325SBDZKI0

Optics

  • Day/night functionality
  • Smart IR, up to 50m (164ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)




Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)
  • Customized OSD




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis



More Information
Image Sensor1/2.7",5.0 megapixel, progressive scan, CMOS
Image Size5MP (2880*1620)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on
Focal Length2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.760.824.312.26.1
13.5303.8121.560.830.4
IR DistanceUp to 50m (164ft) IR range
S/N RatioMore than 56dB
Angle of ViewHorizontal: 106.25-20.42° ; Vertical: 56.36°~ 17.22° ; Diagnal: 110.34°~34.18°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 8 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Behavior DetectionLine crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection
Statistical AnalysisPeople counting
Audio CompressionG.711
Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
Alarm In1CH
Alarm Out1CH
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
Video OutputUltra 265, H.265, H.264, MJPEG
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 9.5 W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Dimensions245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
Weight1.0kg (2.2lb)





    • 33% less
    Market price:$690.00 save $230.00
  • $460.00

OR

The Uniview IPC2325SBDZKI0 is a high-quality 5MP HD smart bullet network security camera designed for both indoor and outdoor surveillance applications. This camera features a 1/2.7-inch progressive scan CMOS sensor that captures images with a resolution of up to 2592 x 1944 pixels, delivering clear and detailed footage.

The camera's smart features include intrusion detection, line crossing detection, and face detection, which make it easier to monitor and protect your property. The camera is also equipped with an IP67-rated weatherproof housing, which protects it from harsh weather conditions and makes it suitable for use in outdoor environments.

The Uniview IPC2325SBDZKI0 camera also features a 2.8-12mm motorized varifocal lens, which provides adjustable zoom capabilities, enabling you to zoom in or out to capture the details you need. The camera's built-in IR illuminators enable night vision up to 50 meters, making it an ideal choice for low-light conditions.

One of the standout features of the Uniview IPC2325SBDZKI0 is its compatibility with the ONVIF standard, which makes it easy to integrate with third-party video management systems. It also supports H.265 compression, which reduces bandwidth usage and storage requirements while maintaining high-quality video.

In addition, the Uniview IPC2325SBDZKI0 camera supports PoE (Power over Ethernet), simplifying installation by allowing power and data to be transmitted over a single cable. The camera can also be easily configured and managed using the Uniview EZView app, which provides remote access to camera settings and live viewing.

Overall, the Uniview IPC2325SBDZKI0 is a versatile and high-performance smart bullet network security camera that delivers exceptional image quality and advanced features, making it an excellent choice for surveillance applications in a wide range of settings.



Optics

  • Day/night functionality
  • Smart IR, up to 50m (164ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)




Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)
  • Customized OSD




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis



More Information
Image Sensor1/2.7",5.0 megapixel, progressive scan, CMOS
Image Size5MP (2880*1620)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on
Focal Length2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.760.824.312.26.1
13.5303.8121.560.830.4
IR DistanceUp to 50m (164ft) IR range
S/N RatioMore than 56dB
Angle of ViewHorizontal: 106.25-20.42° ; Vertical: 56.36°~ 17.22° ; Diagnal: 110.34°~34.18°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Frame RateMain Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 8 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Behavior DetectionLine crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection
Statistical AnalysisPeople counting
Audio CompressionG.711
Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
Alarm In1CH
Alarm Out1CH
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
Video OutputUltra 265, H.265, H.264, MJPEG
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 9.5 W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Dimensions245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
Weight1.0kg (2.2lb)



Downloads




    • SKU
      WEC-2325SBDZKI0
    • Weight
      1.3 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Bullet
  • Camera Signal
    IP
  • Camera Resolution
    5 Megapixel
  • Lens Size
    2.7 ~ 13.5 mm
  • Optical Zoom
    Motorized Lens
  • Shipping Lead Time
    Ships Same Day
  • Infrared Distance
    164 ft
  • Warranty
    3 Year warranty
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
