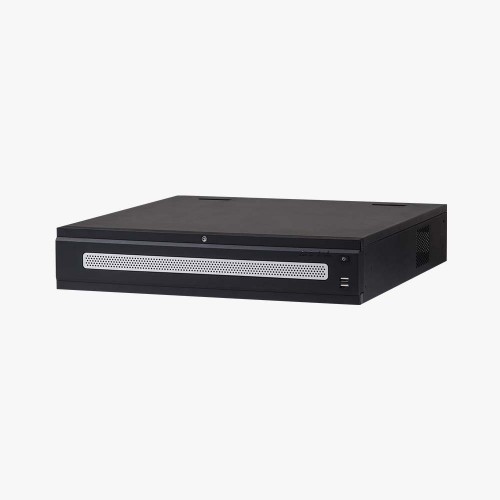

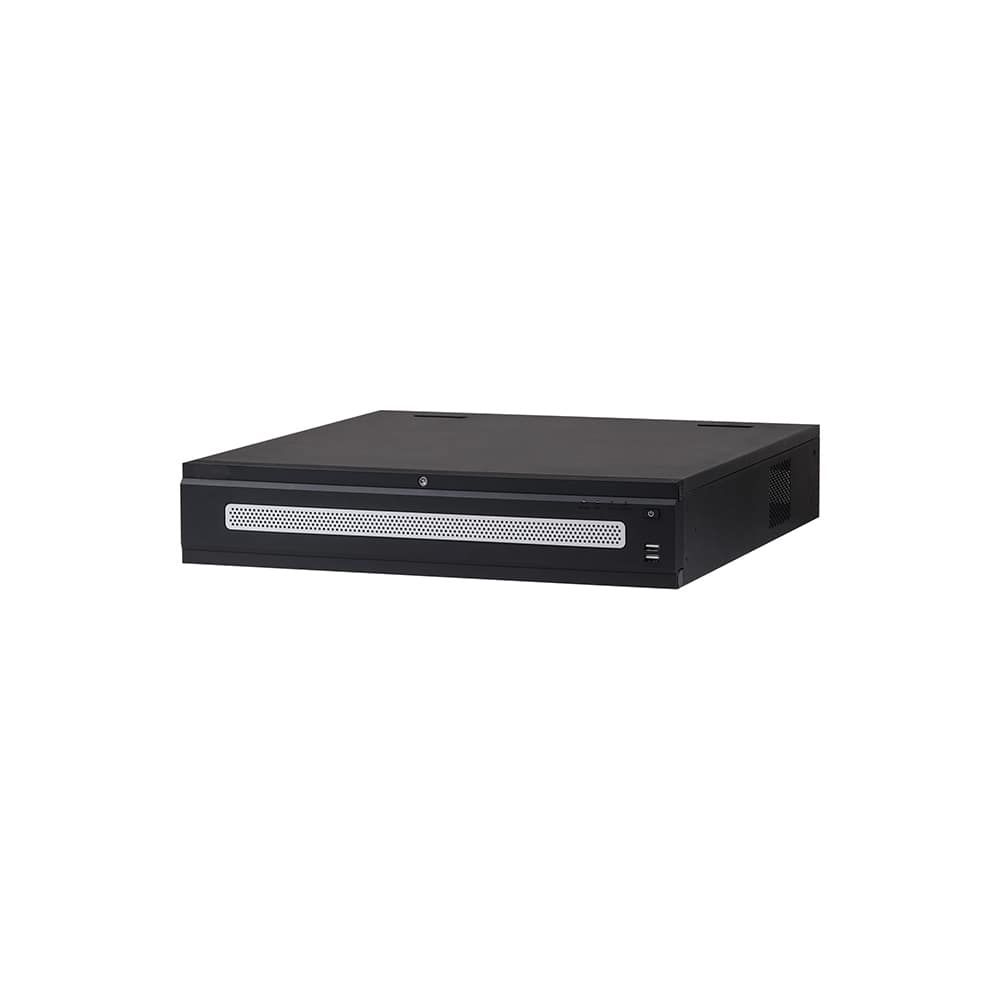

64 Channel Ultra 4K H.265 Network Video Recorder | NVR708S-64-4KS2
SKU: AMX-708S-641-4KS2- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Features
- Intel Processor
- Max 64/128 IP Camera Inputs
- Max 384Mbps Incoming Bandwidth
- Up to 12MP Resolution for Preview and Playback
- Supports RAID 0/1/5/6/10
- Smart Tracking and Intelligent Video
System Compression | H.265/H.264/MJPEG |
---|---|
Main Processor | Embedded Processor |
Operating System | Embedded Linux |
Video Output | 2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA |
Video Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
IP Camera Input | 64CH |
Display Split | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
Recording Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. |
Recording Rate | 384Mbps |
Bit Rate | 16kbps~20Mbps for per channel |
Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Audio In | 1 |
Audio Out | 1 |
2 Way Audio | 1 Channel Input, 1 Channel Output, RCA |
Alarm In | 16 Channel, Low Level Effective, Green Terminal Interface |
Alarm Out | 8 Channel, NO/NC Programmable, Green Terminal Interface |
Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
Alarm Relay Output | 8 Channel, NO/NC Programmable, Green Terminal Interface |
Playback Channels | 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode |
Playback Search | Time/Calendar Search, Event (motion) |
Playback Function | Play, Pause, FF, FB; Digital zoom |
Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
Performance | Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera) |
Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture. |
Database Application | Each database can be applied to video channels independently. |
Network Interface | 2 RJ-45 Ports (10/100/1000Mbps) |
PoE Ports | N/A |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
Network Max. Users | 128 users |
Mobile | iPhone, Android |
USB | 4 ports (2 Rear USB3.0,2 Front USB2.0) |
RS485 | 1 port, for PTZ control |
RS232 | 1 port, for communication with PC or keyboard |
Internal HDD | 8 SATA III Ports, up to 8TB capacity for each HDD |
e-SATA | 1 eSATA port |
Power Supply | Single, AC 100~240V, 50/60 Hz |
Power Consumption | <20W (Without HDD) |
Operating Conditions | -10 ~+55°C / 10~90%RH / 86~106kpa |
Dimensions | 2U, 444mm x 457.08mm x 95mm (17.5" x 18" x 3.7") |
Weight | Net Weight 9kg (19.8 lb) (without HDD) Gross Weight 10.5kg (23.1 lb) |
Downloads
- Specification Sheet
- Mobile Manual
- Quick Start
- Firmware
- CMS for Windows
- CMS for Mac
- IP Tool for Windows
- IP Tool for Mac
- Media Player for Windows
