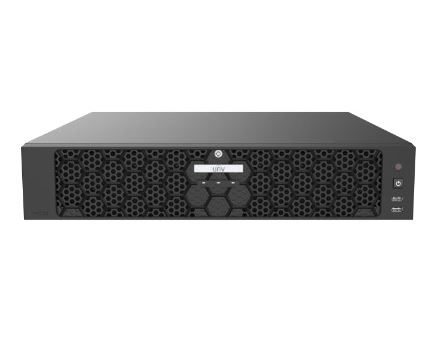

NVR508-64E-R Uniview 64 Channel NVR Max Throughput 8 SATA - No HDD

Uniview
SKU: WEC-NVR508-64E-R
    • 18% less
    Market price:$3280.00 save $580.00
  • $2700.00

OR

Specifications

Decoding

  • Decoding Format - Ultra 265,H.265,H.264
  • Decoding Capability - 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30
  • Audio Compression - G.711A,G.711U

Network

  • Incoming Bandwidth - 384Mbps
  • Outgoing Bandwidth - 384Mbps
  • Remote Users - 128
  • Protocols - TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,NFS,RTSP,802.1x,IPV6
  • Browser(Plugin) - IE(IE10/11)for Windows,Firefox(version 52.0 and above)for Windows,Chrome(version 45 and above)for Windows,Edge(version 79 and above)for Windows

Video/Audio Input

  • RCA Audio Input - 1-ch

Video/Audio Output

  • HDMI Output - HDMI1,HDMI2:4K(3840x2160)/60Hz,4K(3840x2160)/30Hz,1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz
  • VGA Output - VGA1,VGA2:1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280 x720/60Hz,1024x768/60Hz
  • RCA Audio Output - 2-ch
  • Liveview Display - HDMI1/VGA1:1/4/6/8/9/16/25/36/64,HDMI2/VGA2:1/4/6/8/9/16/25/36
  • Corridor Mode Screen - 3/4/5/7/9/10/12/16/32

Two-way Audio

  • Two-way Audio - 1-ch,RCA(Using the audio input and output)

Snapshot

  • FTP/Schedule/Event Snapshot - 16-ch snapshot,up to 1080P resolution

Recording

  • Recording Resolution - 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
  • Synchronous Playback in Local - 16-ch

Smart

  • VCA Detection by IPC - Vehicle Detection,SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area),Ultra Motion Detection(UMD),Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection),People Counting(People Flow Counting,Crowd Density Monitoring),Video Metadata,Traffic Monitoring
  • VCA Search - Motor Vehicle Search,Non-Motor Vehicle Search, General Search,People Counting Report,Heat Map
  • Smart by IPC - Total 16-ch(Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring)
  • Vehicle Picture Library - Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total

Alarm

  • General Alarm - Defocus Detection,Scene Change Detection,Object Left Behind,Object Removed,Auto Tracking,Motion Detection,Tampering, Video Loss Alarm Input,Audio Detection
  • Alert Alarm - IP Conflict,Network Disconnected,Disk Offline,Disk Abnormal,Illegal Access,Hard Disk Space Low,Hard Disk Full,Recording/Snapshot Abnormal

Hard Disk

  • SATA - 8 SATA Interfaces
  • Capacity - Up to 16TB for each disk
  • Disk Group - Support
  • Disk Array Type - RAID 0,1,5,6,10

External Interface

  • Network Interface - 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
  • USB - Front panel: 2 x USB2.0,Rear panel: 2 x USB3.0
  • RS485 - 1
  • RS232 - 1
  • Alarm In - 16-ch
  • Alarm Out - 10-ch
  • eSATA - 1
  • Power Output - 12V
  • Power Supply - AC 100~240V Power Consumption: ≤ 50W (without HDD)

Working Environment

  • Working Temperature - +14°F ~ +131°F (-10°C ~ + 55°C)
  • Working Humidity - ≤ 90% RH (non-condensing)
  • Power Consumption (without HDD) - ≤ 50W
    • SKU
      WEC-NVR508-64E-R
    • Weight
      15.3 lbs
  • Manufacturer
    Uniview
  • Camera Resolution
    12 Megapixel
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    64 Channels
  • Recorder Type
    NVR
