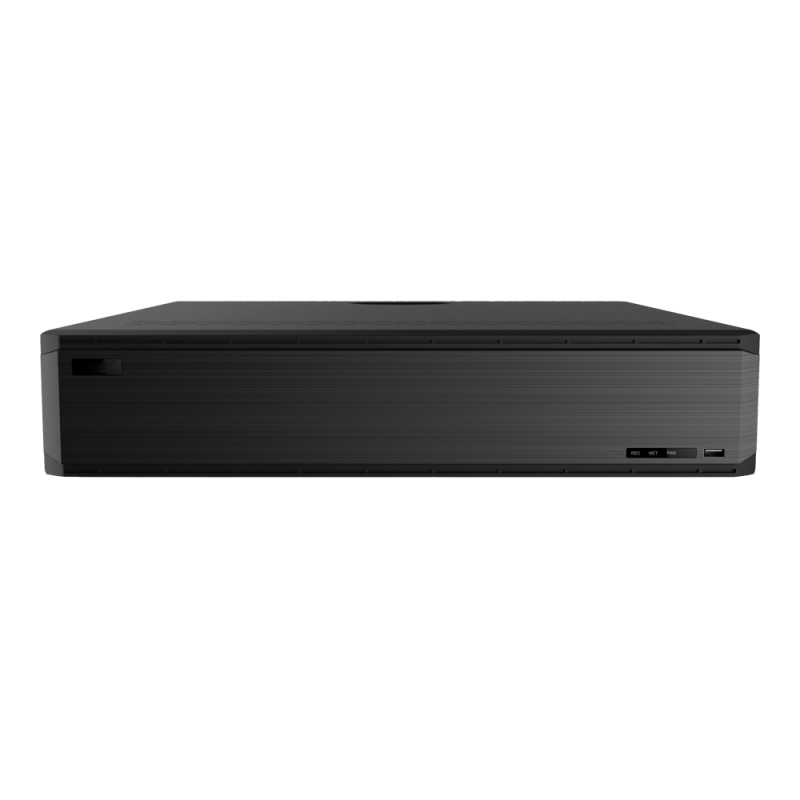

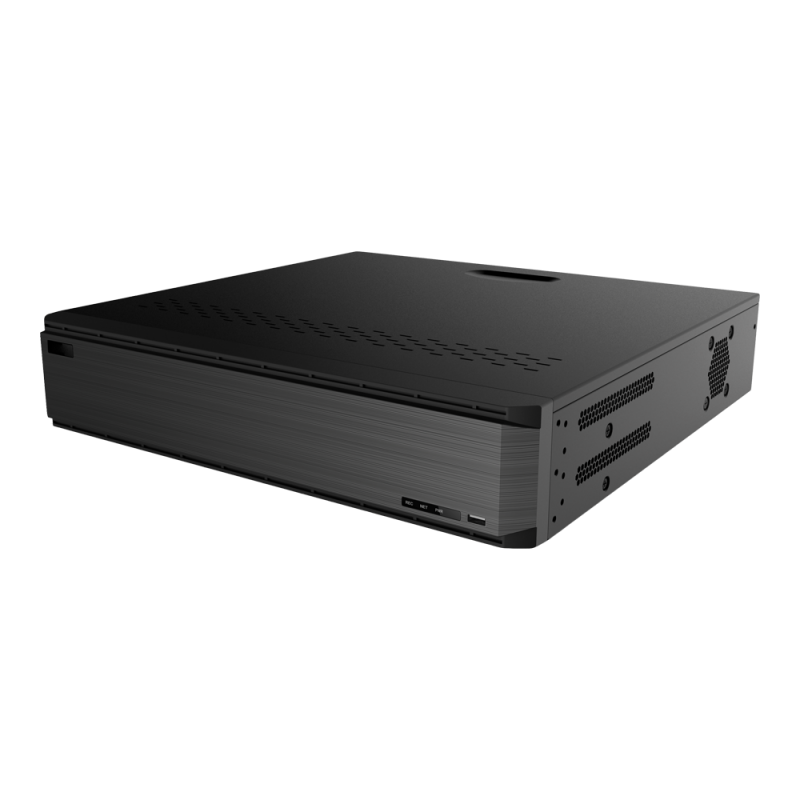

CLEAR- 64 Channel 2U 4K & H.265 Network Video Recorder

CLEAR
SKU: AMX -9764H5NV-2
  • Support 64CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 16 CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 4K output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
    • 50% less
    Market price:$1374.30 save $687.15
  • $687.15

OR
  • Support 64CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 16 CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 4K output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
System CompressionStandard H.265, H.264
Operating SystemEmbedded Linux
IP Camera Input64CH

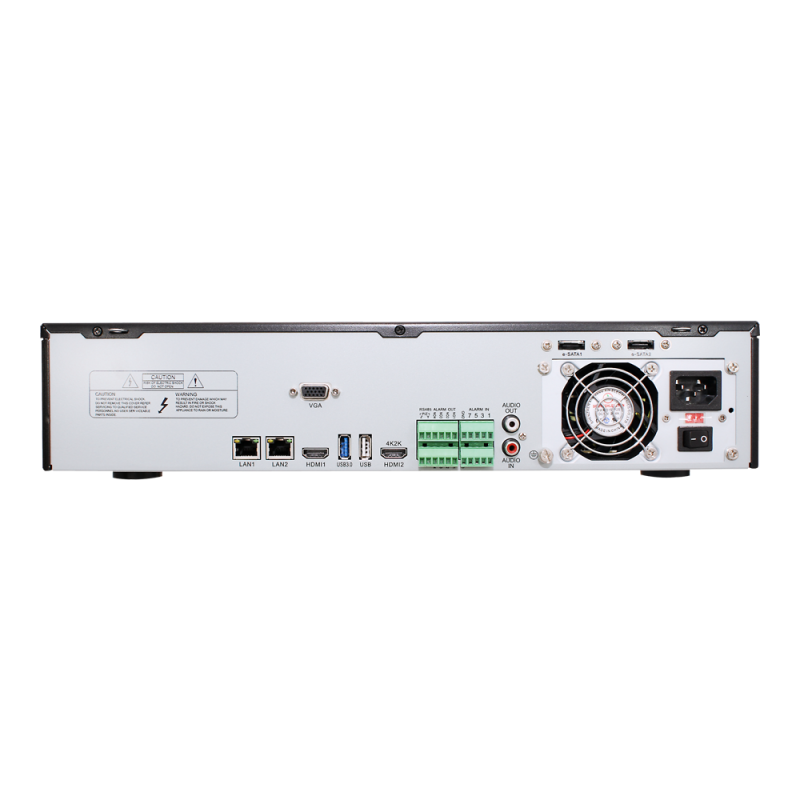

Video Output

HDMI × 1: 4K × 2K/1920×1080
HDMI x 2: 1920×1080/1280×1024
VGA × 1 : 1920×1080/1280×1024

Audio InRCA × 1
Audio OutRCA × 1
2 Way AudioSupported
Recording Resolution5MP / 4MP / 3MP / 1080P / 960P / 720P
Recording ModeManual, timer, motion, sensor
Record StreamDual stream recording
Playback Channels16CH
Playback SearchTime slice / time / event / tag search
Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback FunctionPlay, pause, FF, FB, digital zoom, etc.
Alarm ModeManual, sensor, motion, exception
Alarm In8CH local alarm input, support IPC alarm input
Alarm Out4CH
Trigger EventsRecord, snap, preset, e-mail, etc.
Network InterfaceRJ45 10 / 100 / 1000 Mbps × 2
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Network ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. UsersWeb Client: Max 10 users online
PoE PortsN/A
MobileiPhone, Android
RS485N/A
USBUSB 2.0 × 2 , USB 3.0 × 1
Remote ConnectionsOptional
Power SupplyATX
Power Consumption≤ 15W ( without HDD )
Internal HDDSATA × 8, max 10T per HDD
e-SATAe-SATA × 2
Operating Conditions-10 ~ 50 ℃,10% ~ 90% humidity
Dimensions430mm × 450mm × 90mm ( W × D × H )

Specification Sheet



User Manual

    • SKU
      AMX -9764H5NV-2
    • Dimensions (L x W x H)
      17 x 17.8 x 3.6 inches
  • Manufacturer
    CLEAR
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    64 Channels
  • Recorder Type
    NVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
