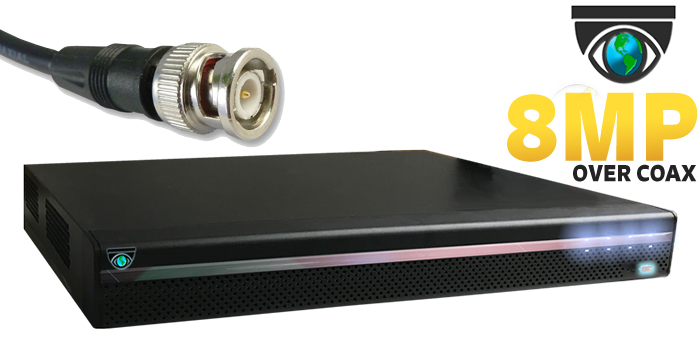

8 Channel 4K 8MP 5 in 1 Mini 1U Digital Video Recorder

iMaxCamPro
SKU: 4K-XVR-8CH-MINI1U

>Embedded processor >H.264+/H.264 Dual-stream video compression >Support HDCVI/TVI/AHD/CVBS & IP video inputs >Max 12 channels IP camera inputs, each channel up to 8MP >Max 48Mbps Incoming Bandwidth >HDMI output up to 4K(3840x2160) resolution >Smart Search and Intelligent Video System

    • 28% less
    Market price:$699.00 save $199.05
  • $499.95

OR

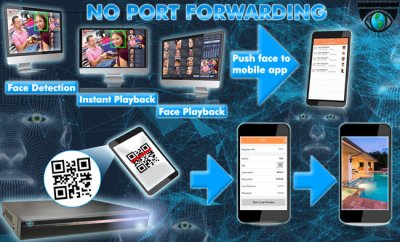

Face Detection with Remote Viewing Mobile App QR Code

>Embedded processor
>H.264+/H.264 Dual-stream video compression
>Support HDCVI/AHD/TVI/CVBS and IP video inputs
>Max 12 channels IP camera inputs, each channel up to 8MP
>Max 48Mbps Incoming Bandwidth
>HDMI output up to 4K(3840x2160) resolution
>Smart Search and Intelligent Video System



System Overview
Our newest generation digital video recorder adopts HDCVI technology, our in-house technology is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation. It supports up to 8 channels of HDCVI/AHD/TVI/CVBS inputs, and 4 channels IP camera additionally, 12 channels local live-view channels, and 12 playback channels.

Designed as a low-cost, easy installation product, this HCVR is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education. It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.1.

Functions
Smart H.264+
Smart Codec, H.264+ can reduce up to 70% bit rate and storage requirements without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS Auto-detect
The HCVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

4K 8MP Resolution
The HCVR supports up to 8MP 4K resolution (3180 x 2160) IPC input for recording, live viewing.

Spot Output
It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

Face Detection
It is a type technology being used in a variety of applications that search or identify individuals which show front cameras.

Smart Search
This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.









System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI(up to 3840x2160),1 VGA

Resolution

3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank

Alarm input

N/A

Relay Output

N/A

Tracking Trigger Event

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 8TB capacity

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

Front Cover

N/A

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

HDCVI/AHD/TVI/CVBS Camera Input

4/8/16 Channel

IP Camera Input

4+2/8+4/16+8 Channel, each channel up to 5MP

Audio In/Out

1/1

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Recording

Compression

H.264+/H.264

Resolution

8MP, 6MP, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 8MP(1-15fps)

6MP/4MP/1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~25/30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4.1, CGI Conformant

Electrical

Power Supply

4/8CH:DC12V/2A, 16CH: DC12V/3A

Power Consumption

<15W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

1.5kg (3.3 lb) (without HDD)

Gross Weight

2kg (4.4lb)

Installation

Desktop installation

Certifications

Certifications

FCC: Coming soon

UL: Coming soon



DOWNLOADS

• DHI-HCVR7104H-4M_7108H-4M_7116H-4M_Dimension.pdf

• HCVR7104H-4M_Rear_Panel.pdf

    • SKU
      4K-XVR-8CH-MINI1U
    • Weight
      4.4 lbs
  • Manufacturer
    iMaxCamPro
  • Network Cable
    I have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL, Black
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
