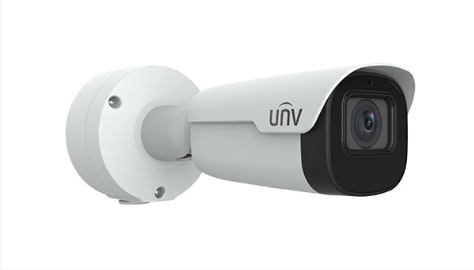

8MP Lighthunter WDR IR Network Bullet Camera
SKU: IPC2A28SE-ADZK-I0High quality image with 8MP,1/1.8’’ CMOS sensor
3840*2160@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB Optical WDR (Wide Dynamic Range)
Built-in heater, support normal start-up at low temperature
DC12V or PoE (IEEE 802.3af) power supply
Wide voltage range of ±25% in DC
Audio 1 in and 1 out, Alarm 2 in and 1 out
IPC2A28SE-ADZK-I0 | |||||
Camera | |||||
Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour:0.0008 lux (F1.2, AGC ON) 0 lux with IR | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
WDR | 120dB | ||||
S/N | >56dB | ||||
Lens | |||||
Lens type | 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Fixed | ||||
Field of View (H) | 48.0°~101.1° | ||||
Field of View (V) | 23.9°~57.2° | ||||
Field of View (D) | 4.12°~74.38° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 98.6(323.3ft) | 39.4(129.3ft) | 19.7(64.7ft) | 9.9(32.3ft) | |
12 | 241.0(790.6ft) | 96.4(316.2ft) | 48.2(158.1ft) | 24.1(79.1ft) | |
Illuminator | |||||
IR Range | Up to 80m (262 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Intelligent | |||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
People counting | Support people flow counting and crowd density monitoring | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8KHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZLive Ezview | ||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | 1/1 | ||||
Alarm I/O | 2/1 | ||||
Serial Port | N/A | ||||
Built-in Mic | Support | ||||
Built-in Speaker | N/A | ||||
Built-in Heater | Support | ||||
Video output | 1 BNC | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
General | |||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||
Power consumption: Max 12W | |||||

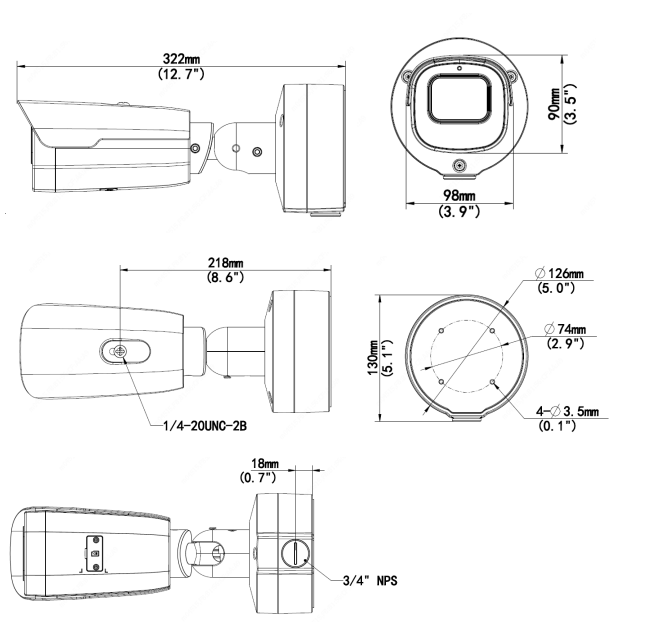

Dimensions (Ø x H) | Ø 130×322mm (Ø 5.1’’ x 12.7’’) | ||||
Weight | 1.5Kg(3.31lb) | ||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Reset button | Support |
Datasheet of IPC2A28SE-ADZK-I0
Camera Installation Guide-V1.00
Network Cameras User Manual-V3.00
