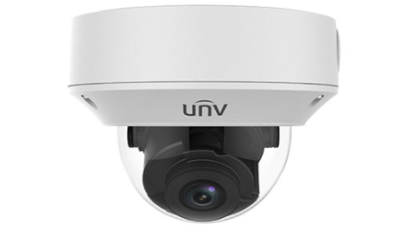

8MP WDR LightHunter Vandal-resistant IR Dome Network Camera
SKU: IPC3238SR3-DVPZ• 1/2.0",progressive scan,CMOS
• Up to 3840×2160 resolution,20fps
• 2.8~12 mm
• Smart IR, up to 30m IR distance
• 2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
• Ultra 265,H.265,ONVIF
• DC12V,PoE.Wide voltage range of ±25%
• IP67
• IK10
Optics
LightHunter
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Up to 120dB Optical WDR (Wide Dynamic Range)
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Built-in PoE splitter that outputs DC 12V
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
IPC3238SR3-DVPZ | ||||||||
Camera | ||||||||
Sensor | 1/2", 8.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
12 | 270 | 108 | 54 | 27 | ||||
Angle of View (H) | 114.8° ~ 47.3° | |||||||
Angle of View (V) | 75.3° ~ 20.4° | |||||||
Angle of View (O) | 141.2° ~ 55.8° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Min. Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR | |||||||
IR Range | Up to 30m (98ft) IR range | |||||||
wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
S/N | >52dB | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
9:16 Corridor Mode | Supported | |||||||
OSD | Up to 8 OSDs | |||||||
ROI | Up to 8 areas | |||||||
Privacy Mask | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | Support | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Two-way audio | Supported | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Client | EZStation EZView EZLive | |||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
Interface | ||||||||
Audio I/O | Audio cable | |||||||
Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
Alarm I/O | 1/1 | |||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | |||||||
Certifications | ||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 8W | ||||||||
Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||||
Net Weight | 0.92kg (2.0lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
surge protection | 6KV | |||||||
Reset Button | Supported | |||||||
Ingress Protection | IP67 | |||||||
Vandal Resistant | IK10 |
IPC3200 Series-Network Fixed Dome Cameras Quick Guide-V1.01
Camera Installation Guide-V1.00
Network Cameras User Manual-V3.00
