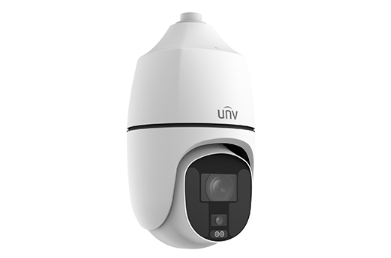

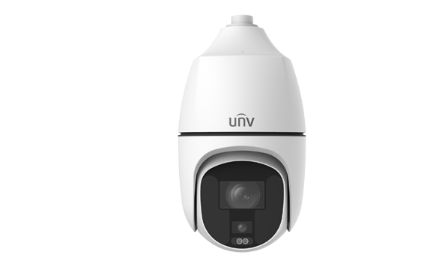

8MP+8MP Lighthunter Dual-lens Network PTZ Camera

SKU: IPC68188EFW-X25-F40G-VH

• Dual channels with one IP, look at overall situation and consider details at the same time
• Support dual-lens’ video spliced in one channel, which can obtain a wider monitoring range
• Ultra 265, H.265, H.264, MJPEG
• Gyroscope stabilization for stable picture
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR & warm light illumination to deal with different scenes and achieve full-color illumination
• AC 24V ± 25% or DC 24V ± 25% power supply

 IPC68188EFW-X25-F40G-VH
CameraChannel 1Channel 2
Sensor1/1.8", 8MP, CMOS1/1.2", 8MP, CMOS
Min. IlluminationColour:0.0005 lux (F1.0, AGC ON)
0 lux with Warm light
Colour:0.0005 lux (F1.6, AGC ON)
0 lux with IR
Day/NightN/AIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDR120dB
S/N>56dB
Lens
Lens type4mm@F1.010~250mm@F1.6,
AF automatic focusing and motorized zoom lens
Digital ZoomN/A16X
Optical ZoomN/A25X
IrisFixed apertureAuto; F1.6(W)~F5.4(T)
Angle of View (H)92.9°58.3° ~ 3.0°
Angle of View (V)49.1°34.8° ~ 1.7°
Angle of View (O)114.3°71.7° ~ 3.6°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4 (Panorama)62.1 (203.6 ft)24.8 (81.5 ft)12.4 (40.7 ft)6.2 (20.4 ft)
10 (Detail)222.8 (730.8 ft)89.1 (292.3 ft)44.6 (146.2 ft)22.3 (73.1 ft)
250 (Detail)4882.5 (16018.7 ft)1953.0 (6407.5 ft)976.5 (3203.7 ft)488.3 (1601.9 ft)
Illuminator
IR RangeN/AUp to 250m (820.2 ft)
Warm Light RangeUp to 30m (98.4 ft)N/A
WavelengthN/A850nm (IR)
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8MP (3840*2160),Max 30fps
Sub Stream: 1080P (1920*1080), Max 30fps
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps ~ 16 Mbps
U-codeSupport
ROIUp to 8 areas
Video streamTriple streams
OSDUp to 8 OSDs
Privacy Mask24 areas, up to 8 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EISSupport
HLCSupport
BLCSupport
DefogDigital defogOptical Defog & Digital Defog
Events
Basic DetectionTampering detection, Motion detection, Audio detection
Auto TrackingSupport
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and common user
SecurityPassword protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above, Safari 11 and above
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range360°
Pan Speed0.1°/s ~ 180°/s
Preset speed: 300°/s
Tilt Range-15° ~ 90°
Tilt Speed0.1°/s ~ 180°/s
Preset speed: 240°/s
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Route Patrol16 patrols, up to 32 actions for each patrol
Recorded Patrol16 patrols, up to 128 actions for each patrol
Patrol Stay Time15s ~ 1800s
Preset Image FreezeSupport
Home PositionSupport
Interface
Audio I/O1/1
Alarm I/O7/2
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
Wi-FiN/A
Network1*100M/1000M Base-FX SFP + 1*10M/100M/1000M Base-TX Ethernet
Video OutputN/A1 BNC
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863)
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerDC24V (±25%), AC24V (±25%)
Power consumption: MAX 63W
Power InterfaceWires with cold-pressed terminal

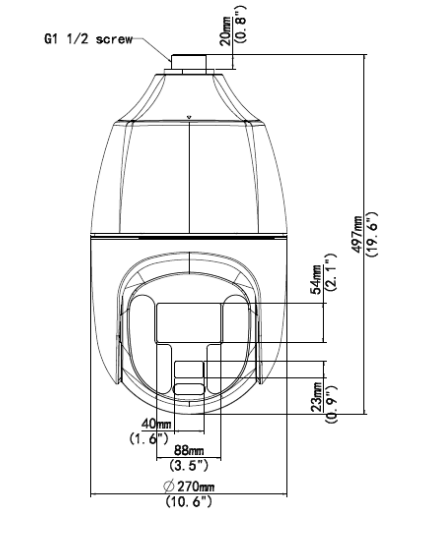

Dimensions (Ø x H)Φ270 x 497mm (Φ10.6” x 19.6”)
Weight10.08kg (22.2lb)
Working Environment-40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing)
Storage Environment-40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing)
Surge protection6KV
Reset buttonSupport
