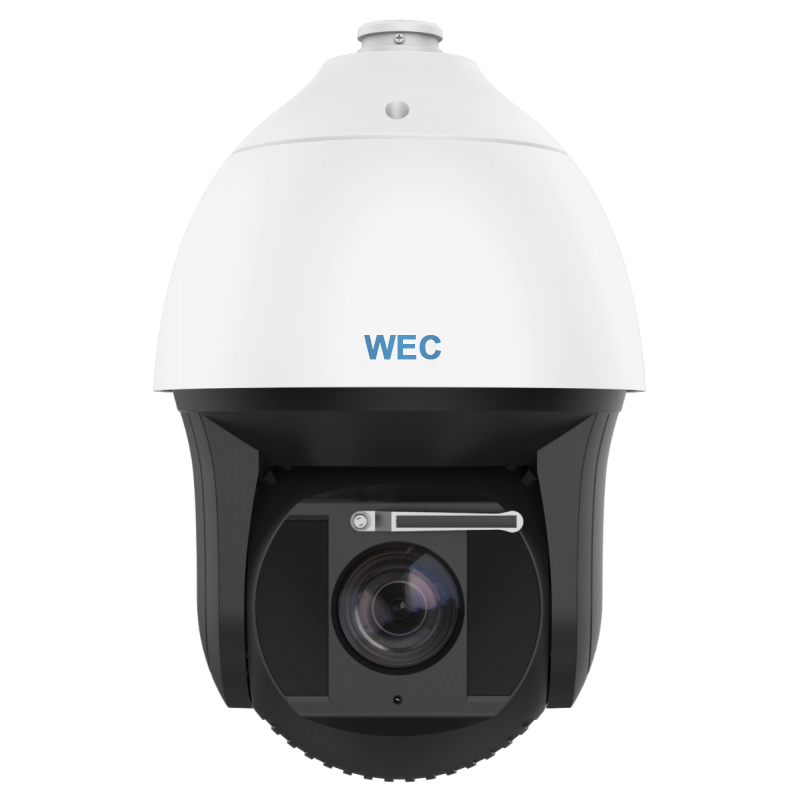

8MP 25× Network IR Speed Dome | SPT8C825IR-F

Worldeyecam
SKU: WECSPT8C825IR-F

Features

  • 2/3" progressive scan CMOS
  • Up to 4096 × 2160 resolution
  • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • Digital WDR, 3D DNR, HLC, Smart IR
  • 24 VAC & PoE++
  • Up to 200 m IR distance
  • Support H.265+/H.265 video compression
  • Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
  • Rapid focus
  • IK10, IP67
    • 33% less
    Market price:$4722.00 save $1574.00
  • $3148.00

OR

Features

  • 2/3" progressive scan CMOS
  • Up to 4096 × 2160 resolution
  • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • Digital WDR, 3D DNR, HLC, Smart IR
  • 24 VAC & PoE++
  • Up to 200 m IR distance
  • Support H.265+/H.265 video compression
  • Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
  • Rapid focus
  • IK10, IP67
Image Sensor2/3" progressive scan CMOS
Image Size4096 × 2160
Electronic Shutter1/1 s to 1/30,000 s
Minimum Illumination

Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR

Day / NightIR cut filter
BLC ModeYes
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain ControlYes
Digital Noise Reduction3D DNR
Privacy Masking24 programmable polygon privacy masks, mask color or mosaic configurable
Optical Zoom25×
Digital Zoom16×
Electronic Image Stabilization (EIS)Yes
DefogYes
Wide Dynamic RangeDWDR
Focal Length7.5 mm to 187.5 mm
Max. ApertureF1.5 to F4.0
Working Distance10 mm to 1500 mm (wide-tele)
Angle of ViewHorizontal field of view: 56.1° to 2.0° (wide-tele) Vertical field of view: 33.4° to 1.1° (wide-tele) Diagonal field of view: 62.9° to 2.3° (wide-tele)
IR Distance200 m
Smart IRSupport
Pan Range360° endless
Pan SpeedConfigurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt RangeFrom -20° to 90° (Auto-flip)
Tilt SpeedConfigurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Number of Preset300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position DisplayYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG H.264 with Baseline/Main/High Profile
Video Resolution

4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720

Video Frame Rate

Main Stream:
50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream:
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream:
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Basic EventIntrusion, Line Crossing, Region Entrance, Region Exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Smart Event DetectionUnattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection
Smart TrackingManual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
ROIEight fixed region for each stream
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio In1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
Audio Out1-ch audio output, line level, impedance: 600 Ω
Alarm In7-ch alarm input
Alarm Out2-ch alarm output
Network Interface1 RJ45 10 M/100 M Ethernet Interface
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Network ProtocolIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Network Max. UsersUp to 32 users 3 levels: Administrator, Operator and User
Network InteroperabilityONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
StorageBuilt-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Management SoftwareiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web ViewerIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
Power Supply24 VAC, PoE++
Power ConsumptionMax. 60 W, including max. 18 W for IR and max. 6 W for heater
Operating TemperatureOutdoor: -40°C to 70°C (-40°F to 158°F), Working Humidity ≤ 90%
Ingress ProtectionIP67 Standard, IK10 (only supported by camera without wiper), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
DimensionsΦ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
WeightApprox. 8 kg (17.64 lb)
Specification Sheet

User Manual
    • SKU
      WECSPT8C825IR-F
    • Weight
      17.64 lbs
  • Manufacturer
    Worldeyecam
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Camera Resolution
    8 Megapixel
  • Lens Size
    7.5 ~ 270 mm
  • Infrared Distance
    656 ft
