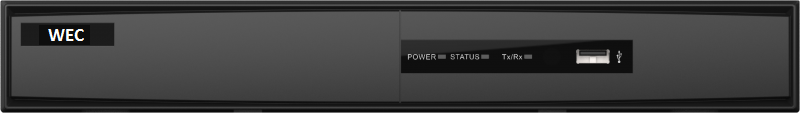

8CH All-in-One Turbo High Definition DVR | SD2108/12I-K

Worldeyecam
SKU: WEC-SD2108/12I-K

Features

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Up to 12-ch IP camera inputs (up to 6 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD
  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Full channel recording at up to 4 MP lite resolution
  • Smart search for efficient playback
  • Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
  • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Support 4-ch line crossing detection and intrusion detection; Only support 2MP(or less than 2) signal input CVBS output will be unavailable.
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Max. 48Mbps incoming bandwidth and output bandwidth limit configurable
    • 39% less
    Market price:$270.00 save $106.00
  • $164.00

OR

Features

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Up to 12-ch IP camera inputs (up to 6 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD
  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Full channel recording at up to 4 MP lite resolution
  • Smart search for efficient playback
  • Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
  • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Support 4-ch line crossing detection and intrusion detection; Only support 2MP(or less than 2) signal input CVBS output will be unavailable.
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Max. 48Mbps incoming bandwidth and output bandwidth limit configurable

System CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Interface8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Video Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDTVI Camera Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1
HDCVI Camera Input4 MP, 1080p25, 1080p30, 720p25, 720p30
AHD Camera Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Camera InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
IP Camera Input4-ch (up to 12-ch) Up to 6 MP resolution
Bit Rate32 Kbps to 6 Mbps
Recording ResolutionWhen 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Recording Frame Rate

Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps(N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Record StreamDual stream recording
Playback Channels8CH
Audio CompressionG.711u
Audio Bit Rate64 Kbps
Audio In1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Out1-ch, RCA (Linear, 1 KΩ)
2 Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Incoming Bandwidth48Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connections64
RS485RS-485 (half-duplex)
USB2 × USB 2.0
Power Supply12 VDC
Power Consumption≤ 7.5 W
Internal HDD1 SATA interface Up to 10 TB capacity for each disk
Operating Conditions-10 °C to +55 °C (+14 °F to +131 °F) Working humidity 10% to 90%
Storage Conditions-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

Specification Sheet

    • SKU
      WEC-SD2108/12I-K
    • Weight
      3.9 lbs
  • Manufacturer
    Worldeyecam
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
