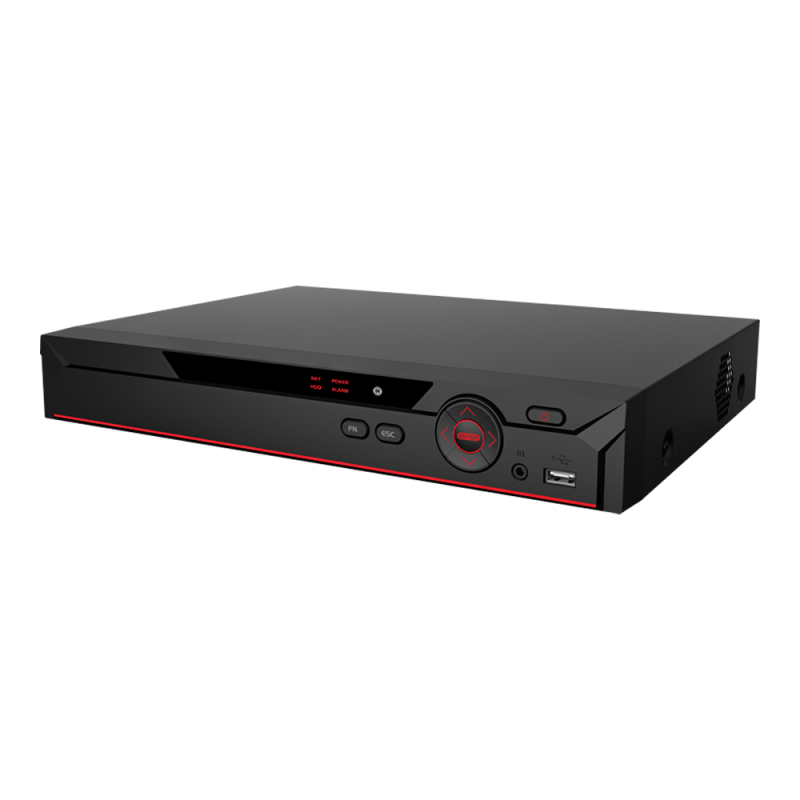

8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

iMaxCamPro
SKU: WECICP-DVRMN1U8CH003

Features

  • H.265+/H.265 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 12 channels IP camera inputs, each channel up to 6MP
  • Max. 48Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
    • 16% less
    Market price:$285.00 save $47.00
  • $238.00

OR

The 8-Channel Penta-brid 1080P Mini 1U Digital Video Recorder is a powerful and versatile security solution that provides high-quality video surveillance and monitoring for both residential and commercial applications. This DVR is designed to work with a range of analog and IP cameras, making it compatible with a wide range of surveillance systems.

This 8-channel DVR supports Penta-brid technology, which means that it can support five different video signals including HDCVI, AHD, TVI, CVBS, and IP cameras, providing users with a flexible and adaptable solution that can be customized to their specific needs. It can also record and playback high-resolution video at 1080P, providing clear and detailed footage that can be used as evidence if required.

The compact and sleek 1U chassis of the DVR makes it easy to install and use, while the user-friendly interface ensures that users can set up and manage their surveillance system with ease. The DVR also includes a variety of advanced features such as motion detection, video loss detection, and alarm notification via email or push notifications on mobile devices, which helps to enhance the overall security of the property.

The 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder can be remotely accessed via mobile devices and web browsers, which means that users can view live or recorded video footage from anywhere in the world. It also supports multiple language options, making it accessible to a global audience.

Overall, the 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder is an excellent choice for anyone seeking a comprehensive and reliable security solution for their property.



PRODUCT FEATURES

  • H.265+/H.265 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 12 channels IP camera inputs, each channel up to 6MP
  • Max. 48Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
System CompressionH.265+/H.265/H.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux

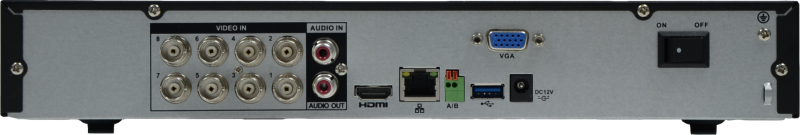

Video Interface1 HDMI, 1 VGA
Video Resolution1920×1080, 1280×1024, 1280×720
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled : 1/4/8/9/16
HDCVI Camera Input4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input8+4 Channel, each channel up to 6MP
OSDYes
Recording Resolution4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Recording Frame Rate

Mainstream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
Substream: D1/CIF (1~15fps)

Bit Rate32Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels1/4/9
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In1
Audio Out1
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB 2.0
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 10TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
DimensionsMini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
WeightNet weight 1.2kg (2.6lb) (without HDD); Gross weight 1.9kg (4.2lb)



DOWNLOAD

    • SKU
      WECICP-DVRMN1U8CH003
    • Weight
      2.6 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
