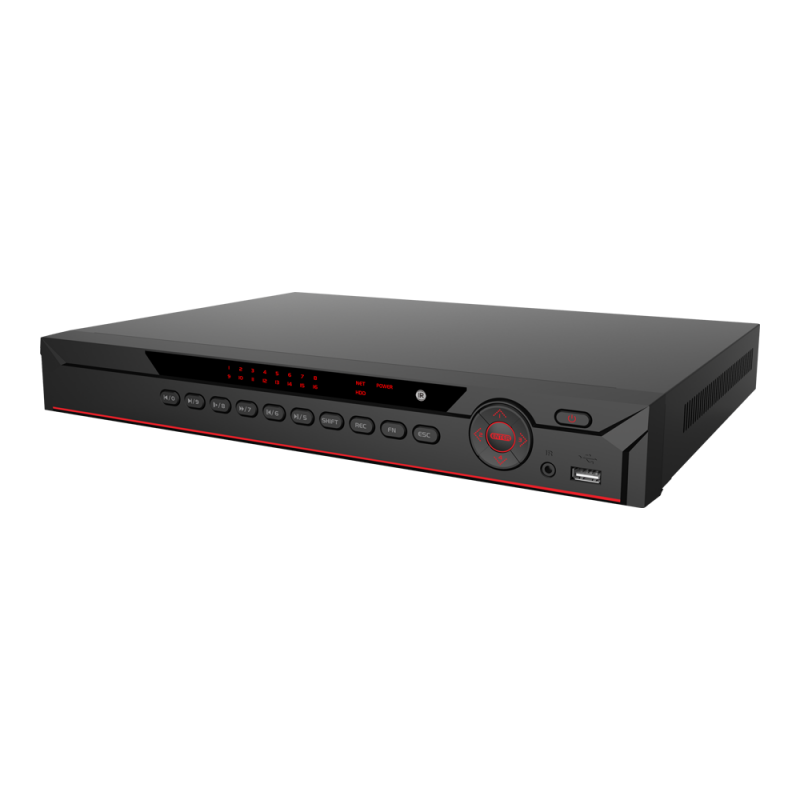

8 Channel Penta-brid 4K 1U Digital Video Recorder

iMaxCamPro
SKU: WECIXVR702A-08-4KL-X

Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16 channels of IPC access, each channel up to 8MP input
  • Max 64Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Smart Search and Intelligent Video System
    • 44% less
    Market price:$657.00 save $287.00
  • $370.00

OR

The 8 Channel Penta-brid 4K 1U Digital Video Recorder is a high-performance video recording device designed for professional-grade surveillance systems. This DVR supports five different video technologies, including AHD, TVI, CVI, IP, and analog, making it a versatile and adaptable option for surveillance systems.

The DVR is capable of recording in 4K ultra-high-definition resolution, providing clear and detailed video footage for enhanced surveillance and monitoring. It also comes equipped with a compact and sleek 1U chassis, making it easy to install and use.

The user-friendly interface of the DVR allows for easy configuration and management of the system. It supports multiple recording modes including continuous recording, manual recording, motion detection recording, and alarm recording. The motion detection feature allows users to set up customizable motion detection zones and alerts for specific areas of the property, enhancing the overall security of the property.

The DVR also includes a variety of advanced features such as video loss detection and alarm notification via email or mobile devices. These features help to enhance the overall security of the property and make it a powerful and reliable security solution.

The device can be remotely accessed via mobile devices and web browsers, which means that users can view live or recorded video footage from anywhere in the world. It also supports multiple language options, making it accessible to a global audience.

Overall, the 8 Channel Penta-brid 4K 1U Digital Video Recorder is an excellent choice for anyone seeking a versatile and reliable security solution for their property. Its advanced features, compatibility with a wide range of cameras, and user-friendly interface make it an ideal choice for both residential and commercial applications.



Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16 channels of IPC access, each channel up to 8MP input
  • Max 64Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Smart Search and Intelligent Video System

System CompressionH.265+/H.265/H.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux

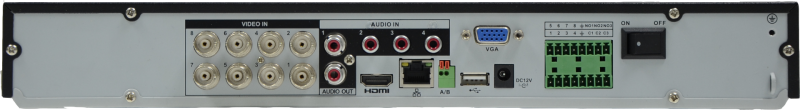

Video Interface1 HDMI, 1 VGA
Video Resolution4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF
Multi-Screen Display1/4/8/9 (IP extension mode: disabled), 1/4/8/9/16 (IP extension mode: enabled)
HDCVI Camera Input4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input8+8 Channel, each channel up to 8MP
OSDYes
Recording Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Recording Frame Rate

Main stream: 4K(1~15fps); 6MP(1~20fps); 5MP(1~20fps); 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)
Sub steram: 960H(1~15fps); D1/CIF(1~25/30fps)

Bit Rate32Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback Channels1/4/9
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In4
Audio Out1
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In8
Alarm Relay Output3
Network Interface1 RJ-45 Port (1000M)
Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Network Max. Users128 users
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (1 USB 2.0, 1USB 3.0)
RS232N/A
RS422N/A
Power SupplyDC12V/4A
Power Consumption<10W (Without HDD)
Internal HDD2 SATA Port, up to 10TB capacity for each disk
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Dimensions1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
WeightNet Weight (without HDD) 1.7kg (3.7 lb) Gross Weight 3.0kg (6.6 lb)
    • SKU
      WECIXVR702A-08-4KL-X
    • Weight
      6.6 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
