- 50% less

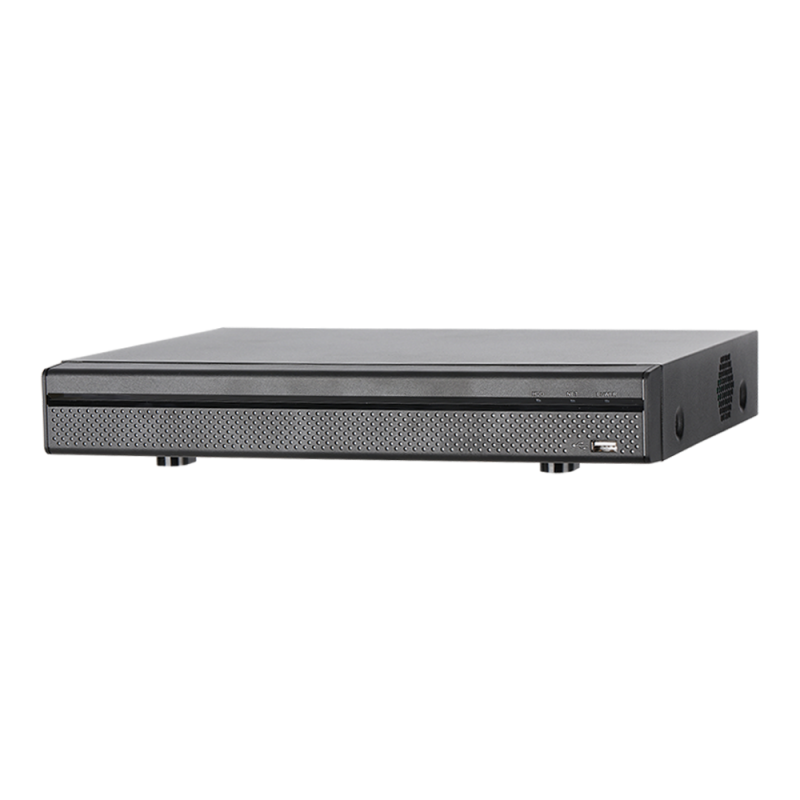

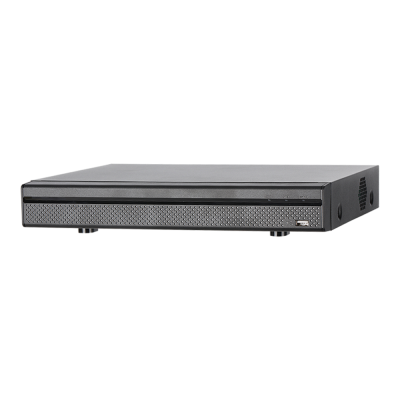

8CH 5-in-1 Analog / AHD / IP / CVI / TVI 1080P HD-CVI mini 1U DVR+
SKU: WECIXVR501H-08-S2- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 12 channels IP camera inputs, each channel up to 5MP
- Max. 48Mbps incoming bandwidth
- Smart Search and Intelligent Video System
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 8CH 5-in-1 Analog / AHD / IP / CVI / TVI 1080P HD-CVI mini 1U DVR+ is a versatile and reliable digital video recorder that provides a comprehensive security solution for both residential and commercial properties. This DVR supports up to 8 channels of analog, AHD, IP, CVI, and TVI video input, making it compatible with a wide range of surveillance cameras. It also supports 1080P resolution, providing clear and detailed video footage for enhanced surveillance and monitoring.
The device comes equipped with a compact and sleek 1U chassis, making it easy to install and use. The user-friendly interface of the DVR allows for easy configuration and management of the system. Additionally, it offers a variety of advanced features such as motion detection, video loss detection, and alarm notification via email or mobile devices, making it a powerful and reliable security solution.
The DVR can be remotely accessed via mobile devices and web browsers, which means that users can view live or recorded video footage from anywhere in the world. It also supports multiple language options, making it accessible to a global audience.
Overall, the 8CH 5-in-1 Analog / AHD / IP / CVI / TVI 1080P HD-CVI mini 1U DVR+ is an excellent choice for anyone seeking a versatile and reliable security solution for their property. Its advanced features, compatibility with a wide range of cameras, and user-friendly interface make it an ideal choice for both residential and commercial applications.
- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 12 channels IP camera inputs, each channel up to 5MP
- Max. 48Mbps incoming bandwidth
- Smart Search and Intelligent Video System
System Compression | H.264+/H.264 |
---|---|
Main Processor | Embedded Processor |
Operating System | Embedded Linux |
Video Interface | 1 HDMI, 1 VGA |
Video Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16 |
HDCVI Camera Input | 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
IP Camera Input | 8+4 Channel, each channel up to 5MP |
OSD | Yes |
Recording Resolution | 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
Recording Frame Rate | Mainstream: 4M-N/1080P (1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Substream: D1/CIF/QCIF (1~15fps) |
Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop |
Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Playback Channels | 1/4/9 |
Playback Search | Time/Calendar Search, Event (motion) |
Playback Function | Play, Pause, FF, FB; Digital zoom |
Backup Mode | USB Device/Network |
Audio In | 1 |
Audio Out | 1 |
2 Way Audio | Reuse audio in/out, RCA |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
Alarm In | N/A |
Alarm Relay Output | N/A |
Network Interface | 1 RJ-45 Port (100M) |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
Network Max. Users | 128 |
Interoperability | ONVIF 2.42, CGI Conformant |
Mobile | iPhone, Android |
RS485 | 1 Port, for PTZ Control |
USB | 2 USB Ports (2 USB 2.0) |
RS232 | N/A |
RS422 | N/A |
Power Supply | DC12V/2A |
Power Consumption | <10W (Without HDD) |
Internal HDD | 1 SATA Port, up to 8TB capacity |
e-SATA | N/A |
Operating Conditions | -10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH |
Storage Conditions | -20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH |
Dimensions | Mini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2") |
Weight | Net weight 1.5kg (3.3lb) (Without HDD); Gross weight 2kg (4.4lb) |
