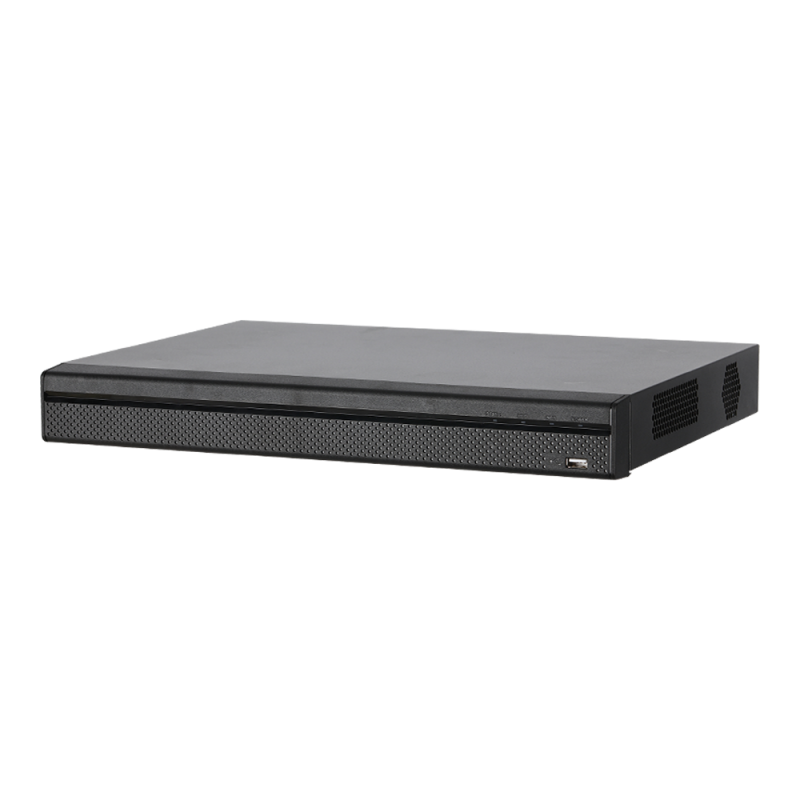

iMaxCamPro XVR502A-08 | 8 Channel Penta-brid 1080P-Lite 1U Digital Video Recorder

iMaxCamPro
SKU: WECIXVR502A-08
  • Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 12 channels IP camera inputs, each channel up to 5MP
  • Max. 48Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
    • 20% less
    Market price:$297.00 save $59.00
  • $238.00

OR

The iMaxCamPro XVR502A-08 is an 8 channel Penta-brid 1080P-Lite 1U digital video recorder that offers a comprehensive and reliable security solution for both residential and commercial applications. This DVR is compatible with a wide range of surveillance cameras including AHD, TVI, CVI, IP, and analog, making it a versatile and adaptable option for surveillance systems.

The DVR supports 1080P-Lite resolution, providing clear and detailed video footage for enhanced surveillance and monitoring. It also comes equipped with a compact and sleek 1U chassis, making it easy to install and use. The user-friendly interface of the DVR allows for easy configuration and management of the system.

The iMaxCamPro XVR502A-08 DVR also includes a variety of advanced features such as motion detection, video loss detection, and alarm notification via email or mobile devices. These features help to enhance the overall security of the property and make it a powerful and reliable security solution.

The device can be remotely accessed via mobile devices and web browsers, which means that users can view live or recorded video footage from anywhere in the world. It also supports multiple language options, making it accessible to a global audience.

Overall, the iMaxCamPro XVR502A-08 is an excellent choice for anyone seeking a versatile and reliable security solution for their property. Its advanced features, compatibility with a wide range of cameras, and user-friendly interface make it an ideal choice for both residential and commercial applications.



Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 12 channels IP camera inputs, each channel up to 5MP
  • Max. 48Mbps incoming bandwidth
  • Smart Search and Intelligent Video System

System CompressionH.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution1920x1080, 1280x1024, 1280x720
Multi-Screen Display1/4/8/9/16
HDCVI Camera Input16 Channel
IP Camera Input8+4 Channel, each channel up to 5MP
OSDYes
Recording Resolution1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Recording Frame Rate

Mainstream: 1080P(1~15fps), 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Substream: D1/CIF/QCIF (1~15fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels1/4/9
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In4
Audio Out1
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In8
Alarm Relay Output3
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB 2.0
RS232N/A
RS422N/A
Power SupplyDC12V/4A
Power Consumption<15W (Without HDD)
Internal HDD2 SATA Port, up to 6TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
Dimensions1U, 375mm×285mm×55mm (14.7" x 11.2" x 2.2")
WeightNet Weight 2.35kg (5.2 lb) (without HDD) Gross Weight 3.2kg (7.05lb)
    • SKU
      WECIXVR502A-08
    • Weight
      7.05 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Hard Drive #2
    I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
