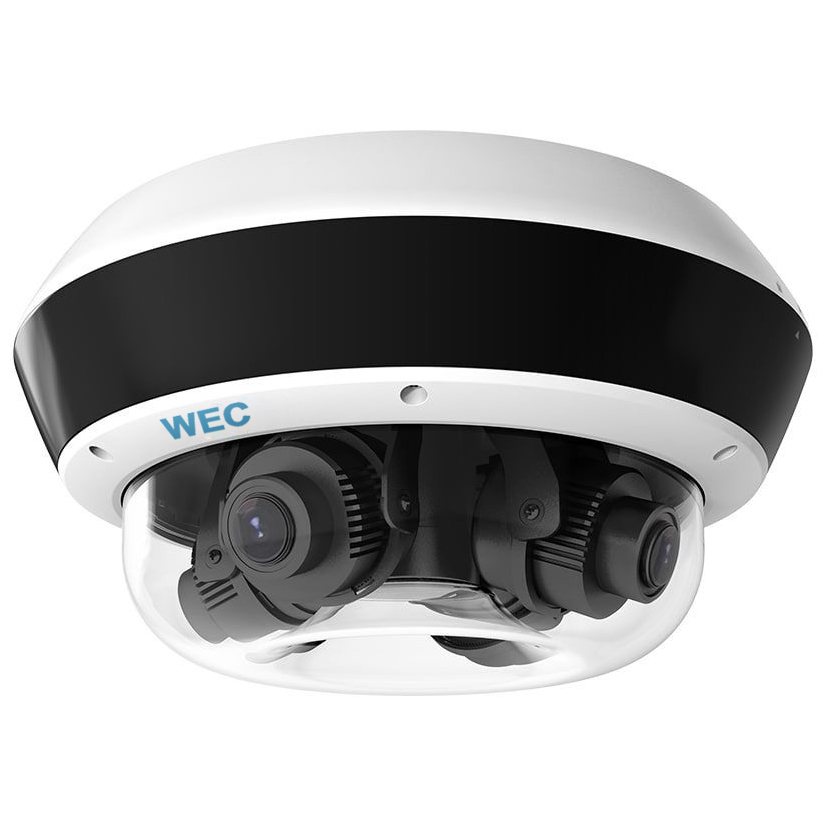

4x5MP EXIR Flexible PanoVu Network Camera | SIPSP5(4)/MZ
Features
- 1/2.7” Progressive Scan CMOS
- 2560 x 1920 @ 25fps
- FOV: horizontal 30° to 101°, vertical 22.4° to 73°, diagonal field of view: 37° to 137°
- H.265, H.264, H.265+, H.264+
- Fiber optical transmission, optional
- 10 m to 30 m IR range
- IP67, IK10
- 4 flexible lens
- 6 behavior analyses, 4 exception detection, and face detection
| Image Sensor | 1/2.7′′ Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON) |
| Electronic Shutter | 1/25 s - 1/100,000 s |
| Day / Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Four flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355° |
| Focal Length | 2.8mm to 12mm |
| Max. Aperture | F1.6 |
| Angle of View | Horizontal field of view: 30°to 96.3° Vertical field of view: 17°to 54° Diagonal field of view: 34° to 121° |
| IR Distance | 10 m to 30 m |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bitrate | 32 Kbps to 16 Mbps |
| Video Resolution | 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720 |
| Video Frame Rate | Main stream: |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
| ROI | Support 4 fixed region for each stream |
| Behavior Detection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection, scene change detection, defocus detection |
| Intelligent Identification | Face Detection |
| Storage | Local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Network Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Network Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Storage Card | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Management Software | iVMS-4200 |
| Web Viewer | IE8+, Chrome31-44, Firefox 30.0 - 51 |
| Reset Button | Yes |
| Audio In | 1-ch 3.5 mm input |
| Audio Out | 1-ch 3.5mm output |
| Alarm In | 2 inputs |
| Alarm Out | 2 outputs |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 42.5 VDC to 57 VDC, PoE (802.3at) |
| Power Consumption | 42.5 VDC to 57 VDC, max. 34W |
| Ingress Protection | IP67, IK10 |
| Dimensions | Camera: Ø290 × 145.5 mm (Ø11.42" × 5.73") Package: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
| Weight | Camera: Approx. 4.7 kg (10.3 lb.) With package: Approx. 7.7 kg (16.8 lb.) |
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Features
- 1/2.7” Progressive Scan CMOS
- 2560 x 1920 @ 25fps
- FOV: horizontal 30° to 101°, vertical 22.4° to 73°, diagonal field of view: 37° to 137°
- H.265, H.264, H.265+, H.264+
- Fiber optical transmission, optional
- 10 m to 30 m IR range
- IP67, IK10
- 4 flexible lens
- 6 behavior analyses, 4 exception detection, and face detection
| Image Sensor | 1/2.7′′ Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON) |
| Electronic Shutter | 1/25 s - 1/100,000 s |
| Day / Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Four flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355° |
| Focal Length | 2.8mm to 12mm |
| Max. Aperture | F1.6 |
| Angle of View | Horizontal field of view: 30°to 96.3° Vertical field of view: 17°to 54° Diagonal field of view: 34° to 121° |
| IR Distance | 10 m to 30 m |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bitrate | 32 Kbps to 16 Mbps |
| Video Resolution | 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720 |
| Video Frame Rate | Main stream: |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
| ROI | Support 4 fixed region for each stream |
| Behavior Detection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection, scene change detection, defocus detection |
| Intelligent Identification | Face Detection |
| Storage | Local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Network Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Network Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Storage Card | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Management Software | iVMS-4200 |
| Web Viewer | IE8+, Chrome31-44, Firefox 30.0 - 51 |
| Reset Button | Yes |
| Audio In | 1-ch 3.5 mm input |
| Audio Out | 1-ch 3.5mm output |
| Alarm In | 2 inputs |
| Alarm Out | 2 outputs |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 42.5 VDC to 57 VDC, PoE (802.3at) |
| Power Consumption | 42.5 VDC to 57 VDC, max. 34W |
| Ingress Protection | IP67, IK10 |
| Dimensions | Camera: Ø290 × 145.5 mm (Ø11.42" × 5.73") Package: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
| Weight | Camera: Approx. 4.7 kg (10.3 lb.) With package: Approx. 7.7 kg (16.8 lb.) |
- ManufacturerWorldeyecam
- Camera TypePanoramic
- Camera SignalIP
- Camera Resolution5 Megapixel
- Lens Size2.8 ~ 12 mm
