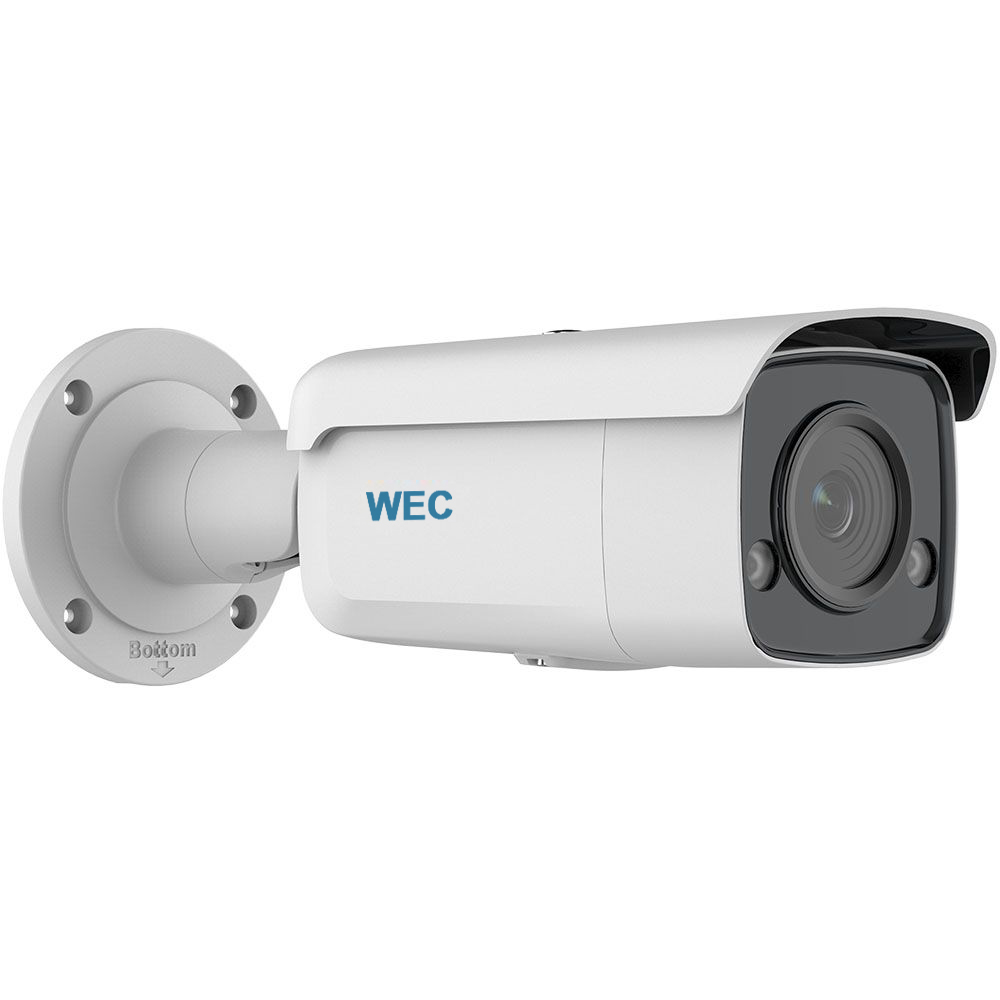

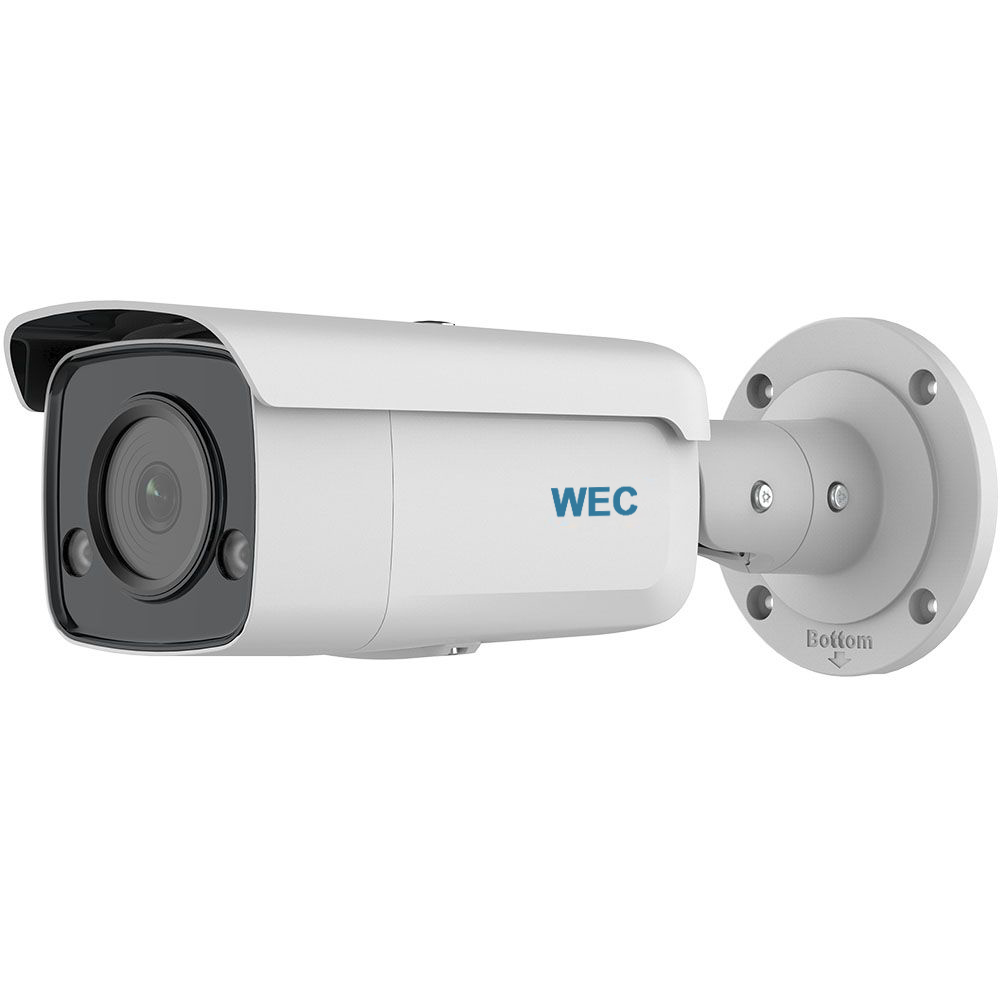

        8 MP Full Color Fixed Bullet Network Security Camera | SIP48B5L/28-U2

        Worldeyecam
        SKU: WEC48B5L/28-U2

        4K bullet IP/ Networking Security Camera, 8MP@30FPS,Fixed lens 2.8mm,1/1.2"Night Color,True WDR,Starlight+,video content analytics (VCA), Face Detection (FD) , SD Slot. UL Listed professional surveillance products.

        •  High-quality imaging with 8 MP resolution
        •  Efficient H.265+ compression technology
        •  Clear imaging against strong backlight due to 130 dB WDR technology
        •  Focusing on human and vehicle classification based on deep learning
        •  24/7 colorful imaging

        User/Host Up to 32 users. 3 user levels: administrator, operator, and user

        Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

        Basic Event: Motion detection (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

        Smart Event: Scene change detection

        Face Capture Yes

        Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection





          • 33% less
          Market price:$583.00 save $194.00
        • $389.00

        OR

        4K bullet IP/ Networking Security Camera, 8MP@30FPS,Fixed lens 2.8mm,1/1.2"Night Color,True WDR,Starlight+,video content analytics (VCA), Face Detection (FD) , SD Slot. UL Listed professional surveillance products.

        •  High-quality imaging with 8 MP resolution
        •  Efficient H.265+ compression technology
        •  Clear imaging against strong backlight due to 130 dB WDR technology
        •  Focusing on human and vehicle classification based on deep learning
        •  24/7 colorful imaging

        User/Host Up to 32 users. 3 user levels: administrator, operator, and user

        Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

        Basic Event: Motion detection (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

        Smart Event: Scene change detection

        Face Capture Yes

        Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection



        More Information

        Image Sensor1/1.2′′ Progressive Scan CMOS
        Image Size3840 × 2160
        Electronic Shutter1/3 s to 1/100,000 s
        Minimum Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
        IR On/Off ControlAuto/Manual
        Focal Length2.8mm
        Angle of Viewhorizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
        Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
        IR DistanceDistance up to 60m (197ft)
        Wide Dynamic Range130dB
        Video CompressionH.265/H.264/H.264+/H.265+
        Video ResolutionMain Stream 50Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
        Video BitrateCBR/VBR
        Day / NightDay, Night, Auto, Schedule
        BLC ModeYes
        HLCYes
        ROIRegion of Interest (ROI): 1 fixed region for main stream and sub-stream
        Image SettingsRotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
        Face CapturingFace Capture
        AI Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
        Basic EventMotion detection (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
        Smart Event DetectionScene change detection
        Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
        Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
        IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
        StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
        Storage CardMicro SD, up to 256GB
        Web ViewerPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
        Network Max. UsersUp to 32 users. 3 user levels: administrator, operator and user
        MobileiPhone, Android
        Power Supply12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
        Power Consumption12 VDC, 0.7 A, max. 8.5 W PoE (802.3af, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
        Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
        Ingress ProtectionIP67 (IEC 60529-2013)
        DimensionsCamera Dimension Ø105 × 289.5 mm (Ø4.1′′ × 11.4′′) Package Dimension 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
        WeightCamera Weight Approx. 1260 g (2.8 lb.) With Package Weight Approx. 1931 g (4.3 lb.)
