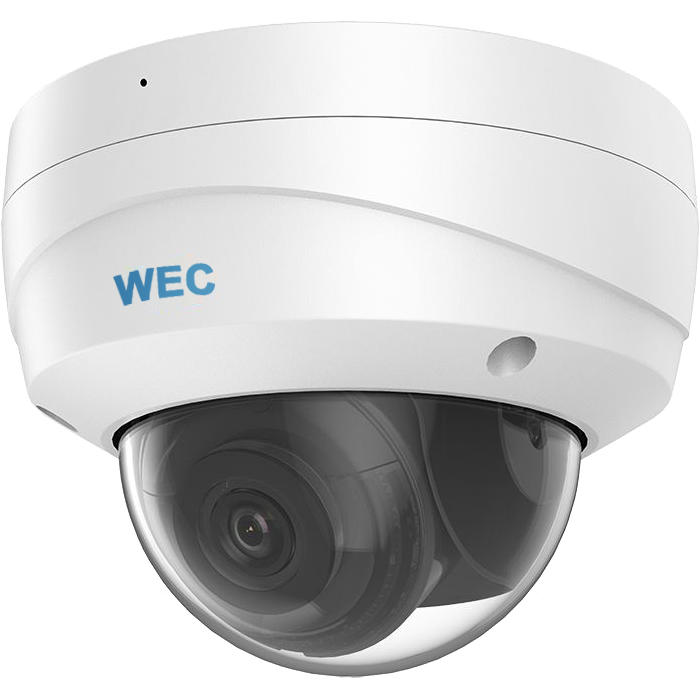

8 MP IR 2.8 Fixed Dome Network Security Camera SIP48D3M/28-H
Features
- 1/2.5" Progressive Scan CMOS
- 3840 × 2160@15fps
- H.265, H.265+, H.264, H.264+
- Three streams
- 120dB WDR
- IR range: Up to 30 m, 98ft
- IP66, IK10
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- 3-Axis adjustment
- Built-in microphone
| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Day / Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Angle of View | 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° |
| IR Distance | Distance up to 30m (98.43ft) |
| Video Compression | Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bitrate | 32 Kbps to 16 Mbps |
| Video Resolution | Main Stream: 50Hz: 12.5fps (3840 × 2160), 20fps (3072 × 1728), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15fps (3840 × 2160), 20fps (3072 × 1728), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps- 320Kbps(MP3) |
| Behavior Analysis | Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
| Behavior Detection | Line crossing detection, intrusion detection and face detection |
| Exception Detection | Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Intelligent Identification | Region of Interest 1 fixed region for main stream and sub-stream |
| Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Network Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnPTM, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Storage Card | Micro SD, up to 128GB |
| Web Viewer | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Reset Button | Reset via reset button on camera body, web browser and client software |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W |
| Ingress Protection | IP66, IK10 |
| Dimensions | Φ121 × 92 mm (Φ4.8" × 3.6") |
| Weight | Camera: Approx. 560 g (1.2 lb.) With package: Approx. 800 g (1.8 lb.) |
