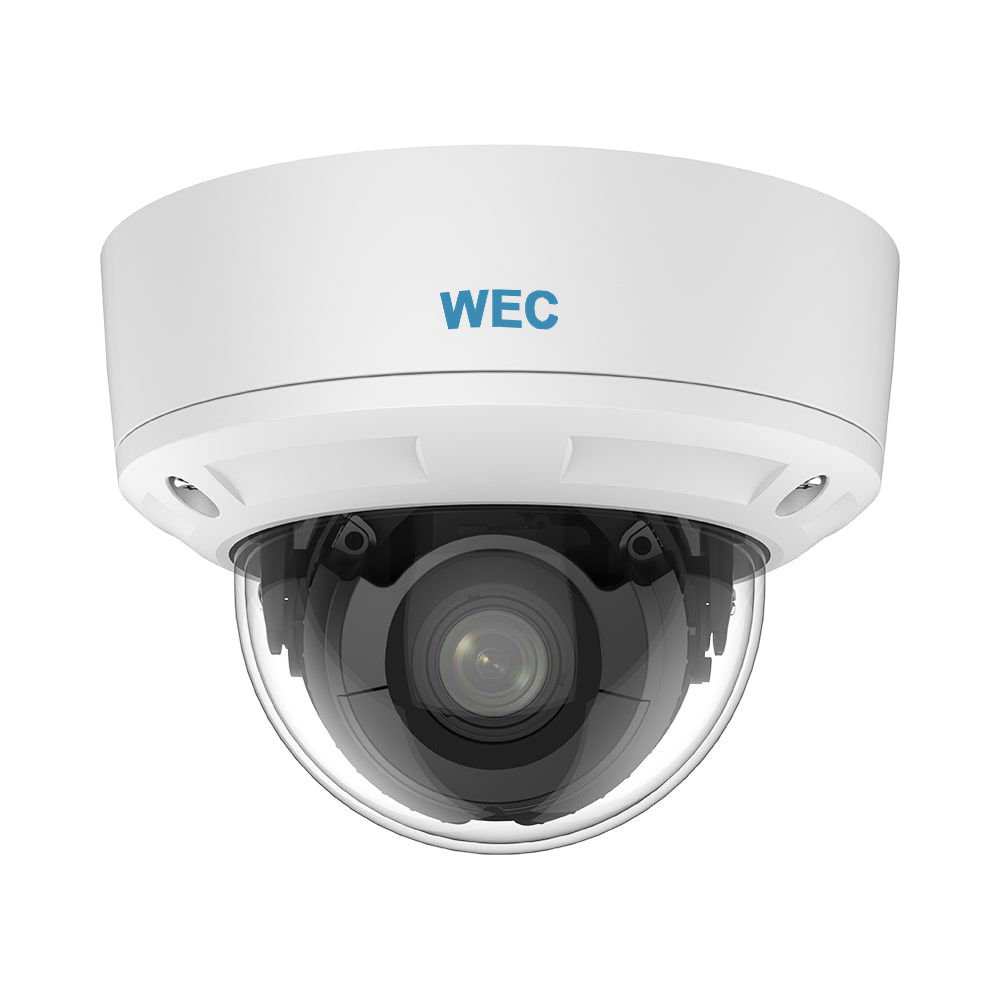

8MP IR Motorized Dome Network Security Camera
        • 8MP IR Motorized Dome Network Security Camera
        • 8MP IR Motorized Dome Network Security Camera

        8MP IR Motorized Dome Network Security Camera

        Worldeyecam
        SKU: WEC48D3A/MZ-H

        Features

        • 1/2.5" progressive scan CMOS
        • 3840 × 2160 @15 fps
        • Up to 50 m IR range
        • 2.8~12mm varifocal lens
        • 2 Behavior analyses
        • H.265+, H.265, H.264+, H.264
        • IP67, IK10
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC
          • 33% less
          Market price:$717.00 save $239.00
        • $478.00

        OR

        Features

        • 1/2.5" progressive scan CMOS
        • 3840 × 2160 @15 fps
        • Up to 50 m IR range
        • 2.8~12mm varifocal lens
        • 2 Behavior analyses
        • H.265+, H.265, H.264+, H.264
        • IP67, IK10
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC

        Image Sensor1/2.5" progressive scan CMOS
        Minimum Illumination

        Color: 0.01 lux @(F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR

        Electronic Shutter1/3 s to 1/100, 000 s
        Day / NightIR cut filter
        Digital Noise Reduction3D DNR
        Wide Dynamic Range120 dB
        Angle Adjustment

        Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°

        Focal Length2.8~12mm
        Max. ApertureF1.6
        Angle of ViewHorizontal field of view: 105° to 34.5° Vertical field of view: 55° to 19° Diagonal field of view: 125° to 40°
        IR DistanceUp to 30 m
        Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
        Video Bitrate

        32 Kbps to 16 Mbps

        Video Resolution

        3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720

        Video Frame Rate

        Main Stream:
        50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
        60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
        Sub-Stream:
        50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
        60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
        Third Stream:
        50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
        60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

        Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
        Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
        Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
        Image EnhancementBLC/3D DNR/HLC
        Image SettingsSaturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
        ROISupport 1 fixed region for main stream and sub-stream
        Behavior DetectionLine crossing detection, intrusion detection
        Exception DetectionFace Detection
        Storagelocal storage and NAS (NFS,SMB/CIFS), ANR
        Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
        Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
        General Function

        One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

        APIONVIF (PROFILE S, PROFILE G), ISAPI
        Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
        Video Output1Vp-p composite output (75 Ω) (For adjustment only)
        Storage CardBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
        Management SoftwareiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
        Web ViewerPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
        Reset ButtonYes
        Audio In1 input (line in)
        Audio Out1 output (line out)
        Alarm In1 input
        Alarm Out1 output
        Operating Temperature-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
        Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
        Power Consumption12 VDC, 0.8A, max. 10W PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
        Ingress ProtectionIP67, IK10
        Dimensions153.3 × 111.6mm (Φ 6" × 4.4")
        WeightCamera: Approx. 835g (1.8 lb.) With Package: Approx. 1305g (2.9 lb.)

        Downloads


          • SKU
            WEC48D3A/MZ-H
          • Weight
            2.9 lbs
        • Manufacturer
          Worldeyecam
