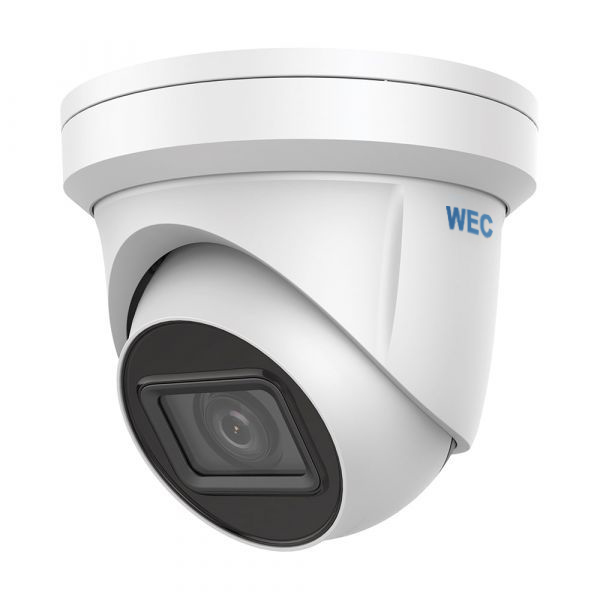

8MP IR Varifocal Turret Network Camera | SIP48T3A/MZ-H
        • 8MP IR Varifocal Turret Network Camera | SIP48T3A/MZ-H
        • 8MP IR Varifocal Turret Network Camera | SIP48T3A/MZ-H

        8MP IR Varifocal Turret Network Camera | SIP48T3A/MZ-H

        Worldeyecam
        SKU: WEC48T3A/MZ-H

        Features

        • 1/2.5" progressive scan CMOS
        • 3840 × 2160 @15 fps
        • Up to 30 m IR range
        • 2.8~12mm varifocal lens
        • 2 Behavior analyses
        • H.265+, H.265, H.264+, H.264
        • IP67, IK10
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC
        • 3-Axis adjustment
          • 45% less
          Market price:$777.00 save $347.00
        • $430.00

        OR

        Features

        • 1/2.5" progressive scan CMOS
        • 3840 × 2160 @15 fps
        • Up to 30 m IR range
        • 2.8~12mm varifocal lens
        • 2 Behavior analyses
        • H.265+, H.265, H.264+, H.264
        • IP67, IK10
        • 120 dB WDR (Wide Dynamic Range)
        • BLC/3D DNR/ROI/HLC
        • 3-Axis adjustment

        Image Sensor1/2.5" progressive scan CMOS
        Minimum Illumination

        Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR

        Electronic Shutter1/3 s to 1/100, 000 s
        Day / NightIR cut filter
        Digital Noise Reduction3D DNR
        Wide Dynamic Range120 dB
        Angle Adjustment

        Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

        Focal Length2.8~12mm
        Max. ApertureF1.6
        Angle of ViewHorizontal field of view: 105° to 34.5° Vertical field of view: 55° to 19° Diagonal field of view: 125° to 40°
        IR DistanceUp to 30 m
        Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
        Video Bitrate

        32 Kbps to 16 Mbps

        Video Resolution

        3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720

        Video Frame Rate

        Main Stream:
        50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
        60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
        Sub-Stream:
        50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
        60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
        Third Stream:
        50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
        60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

        Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
        Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
        Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
        Image EnhancementBLC/3D DNR/HLC
        Image SettingsSaturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
        ROISupport 1 fixed region for main stream and sub-stream
        Behavior DetectionLine crossing detection, intrusion detection, Motion detection, video tampering alarm, Face Detection
        Exception DetectionNetwork disconnected, IP address conflict, illegal login, HDD full, HDD error
        Storagelocal storage and NAS (NFS,SMB/CIFS), ANR
        Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
        Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
        General Function

        One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

        APIONVIF (PROFILE S, PROFILE G), ISAPI
        Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
        Storage CardBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
        Management SoftwareiVMS-4200, Hik-Connect, Hik-Central
        Web ViewerPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
        Audio In1 input (line in)
        Audio Out1 output (line out)
        Alarm In1 input
        Alarm Out1 output
        Operating Temperature-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
        Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
        Power Consumption12 VDC, 0.92 A, max. 11 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W
        Ingress ProtectionIP67, IK10
        DimensionsCamera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0") With Package: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")
        WeightCamera: Approx. 1.20 kg (2.65 lb.) With Package: Approx. 1.42 kg (3.13 lb.)

        Specification Sheet



        User Manual

          • SKU
            WEC48T3A/MZ-H
          • Weight
            3.13 lbs
        • Manufacturer
          Worldeyecam
        • Camera Type
          Turret
        • Camera Signal
          IP
        • Camera Resolution
          8 Megapixel
        • Lens Size
          2.8 ~ 12 mm
        • Optical Zoom
          Motorized
