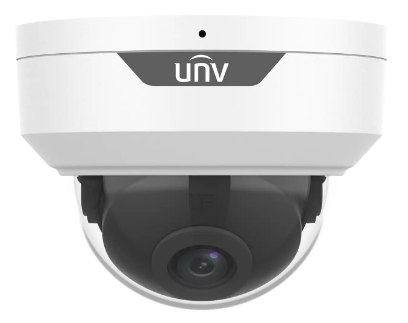

UNV 8MP IR Fixed Dome Network Camera
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Sensor Type: 1/2.7" CMOSLens Type: 2.8mm@F1.6Max Resolution/Frame Rate: 8MP(3840x2160)@20fpsAngle of View: 112.9° (Horizontal)Min. Illumination: Color 0.005Lux (F1.6, AGC ON)
Night Vision Distance: 98 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Built-in Microphone
Alarm I/O: N/A
BNC Output: N/A
Special Features: Human Detection
Power: PoE (IEEE 802.3af), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years
The UNV 8MP IR Fixed Dome Network Camera is a state-of-the-art security camera that offers a variety of advanced features to provide high-quality surveillance for indoor or outdoor use.
One of the standout features of this camera is its high resolution of 8 megapixels, which allows it to capture incredibly sharp and detailed images. This is especially useful for monitoring large areas where small details could be important, such as parking lots or public spaces.
In addition to its high resolution, the camera also features infrared technology that enables it to capture clear images even in low-light or nighttime conditions. This makes it an ideal choice for outdoor use, where lighting conditions may vary throughout the day.
The camera's fixed dome design offers an additional layer of protection against vandalism or tampering, as the camera lens is protected by a dome-shaped cover. This helps to ensure that the camera remains functional and provides reliable surveillance even in challenging conditions.
Installation and setup of the camera are straightforward, with the camera able to be connected to your network using a standard Ethernet cable. The camera is also compatible with a wide range of video management software systems, allowing for easy integration with your existing security setup.
Overall, the UNV 8MP IR Fixed Dome Network Camera is an excellent choice for anyone who requires a high-quality and reliable surveillance camera for indoor or outdoor use. Its advanced features, including its high resolution, infrared technology, and fixed dome design, make it an ideal choice for a variety of surveillance applications.
IPC328SR3-ADF28KM-G | |||||
Camera | |||||
Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | ||||
Minimum Illumination | Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Adjustment angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
S/N | >56dB | ||||
WDR | 120dB | ||||
Lens | |||||
Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal | ||||
Lens Mount | M12 | ||||
Angle of view (H) | 112.9° | ||||
Angle of View (V) | 59.1° | ||||
Angle of View (O) | 121.2° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8mm | 84 | 33.6 | 16.8 | 8.4 | |
Illuminator | |||||
IR Range | Up to 30m (98ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Supported | ||||
9:16 Corridor Mode | Supported | ||||
OSD | Up to 4 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Up to 8 areas | ||||
Motion Detection | Up to 4 areas | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Supported | ||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
Dewarping | N/A | ||||
HLC | Supported | ||||
BLC | Supported | ||||
Defog | Digital Defog | ||||
Events | |||||
Basic Detection | Cross line, intrusion(based on human body detection) | ||||
motion detection, tampering alarm, audio detection | |||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
Audio | |||||
Audio Compression | G.711 | ||||
Suppression | Supported | ||||
Sampling Rate | 8KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZView EZLive | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
Interface | |||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Built-in Mic | Supported | ||||
Certification | |||||
EMC | FCC: FCC Part 15 | ||||
Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
General | |||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
Power consumption: Max 4.5W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | ||||
Weight | 0.37kg (0.82lb) | ||||
Material | Metal + Plastic | ||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge Protection | 4KV | ||||
Reset Button | Supported | ||||
Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 | ||||
