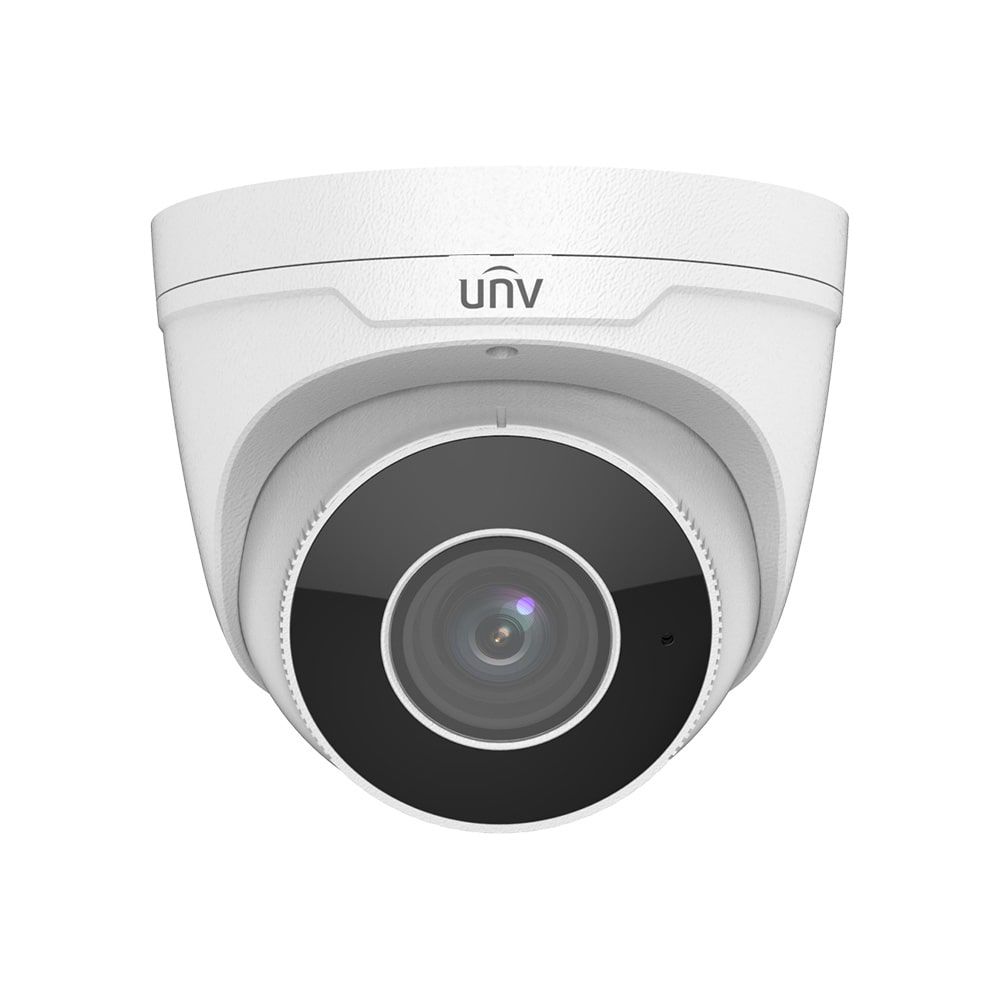

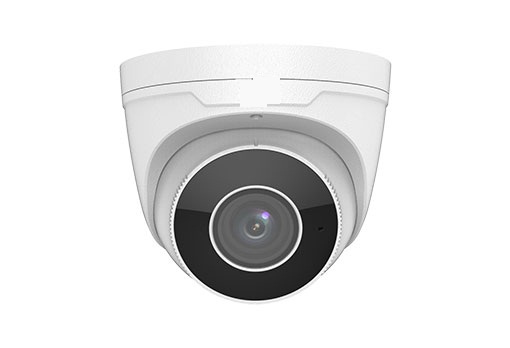

8MP WDR (Motorized) VF Eyeball Network IR Camera | WEC-IPC3638SR3-DPZ
Ultra 265 Compression (H.265 + U-Code)
1/2’’ CMOS Sensor
Up to 3840 x 2160 resolution
Day/night functionality
SmartIR,up to 30 m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Up to 120 dB Optical WDR(Wide Dynamic Range)
2D/3D DNR (Digital Noise Reduction)
Ultra265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format
Support PoE power supply
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
More Information
Image Sensor 1/2" 8MP CMOS Sensor
Image Size 3840 x 2160
Electronic Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination
Color: 0.003 Lux (F1.5, AGC ON),
B/W: 0 Lux with IR on
Focal Length 2.8~12mm，AF automatic focusing and motorized zoom lens
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
12mm 270 108 54 27
IR Distance Up to 30m (98 ft) IR range
S/N Ratio > 52dB
Angle of View Angle of view (H) 114.8° ~ 47.3° Angle of View (V) 75.3°~ 20.4° Angle of View (O) 141.2°~ 55.8°
Angle Adjustment
Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Defog Digital Defog
Wide Dynamic Range 120dB
OSD Yes
Video Compression Ultra 265,H.265, H.264, MJPEG
Video Resolution
8MP / 5MP / 4MP / 3MP / 2MP / 1MP / D1
Video Frame Rate
Main Stream: 8MP (3840 x 2160): Max. 15 fps;5MP(2592 x 1944) : Max. 30fps; 5MP(2944 x 1656) : Max. 30fps; 4MP(2560 x 1440) : Max. 30fps;2MP (1920 x 1080): Max. 30fps;
Sub Stream:2MP (1920 x 1080): Max. 30fps ;
Third Stream: D1 (720 x 576): Max. 30 fps
9:16 Corridor Mode Supported
Day / Night IR-cut filter with auto switch (ICR)
BLC Mode Supported
HLC Supported
ROI Up to 8 areas
Digital Noise Reduction 2D / 3D DNR
Motion Detection Up to 4 areas
Privacy Masking Up to 8 areas
Behavior Detection Intrusion, crossing line, motion detection
Exception Detection Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio Compression G.711
Audio In Built-in Mic
Ethernet RJ45 x 1, 10M/100M Base-TX Ethernet
Network Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Network Interoperability ONVIF, API
Storage ANR
Storage Card Micro SD, up to 256GB
Web Viewer IE web browser
Mobile iPhone, Android
Power Supply 12 V DC±25% / PoE (IEEE802.3 af)
Power Consumption Max 8.6W
Operating Temperature -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Storage Temperature -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP67
Dimensions 5.08” × 4.3” (129 × 110mm )
Weight 1.48 Lbs (0.67 Kg )
