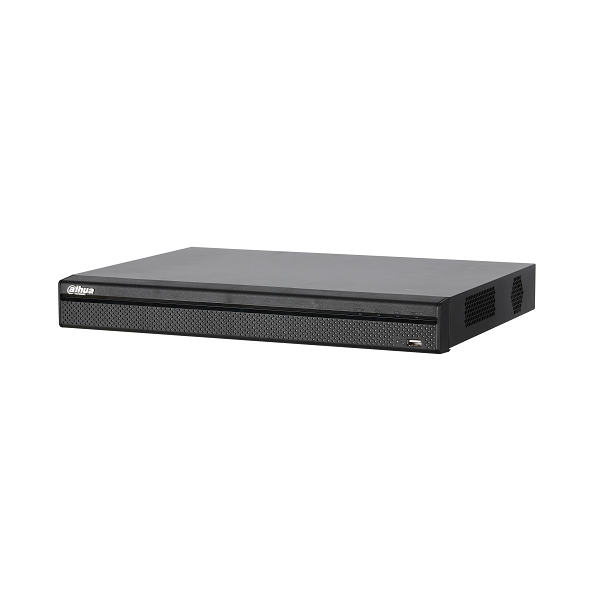

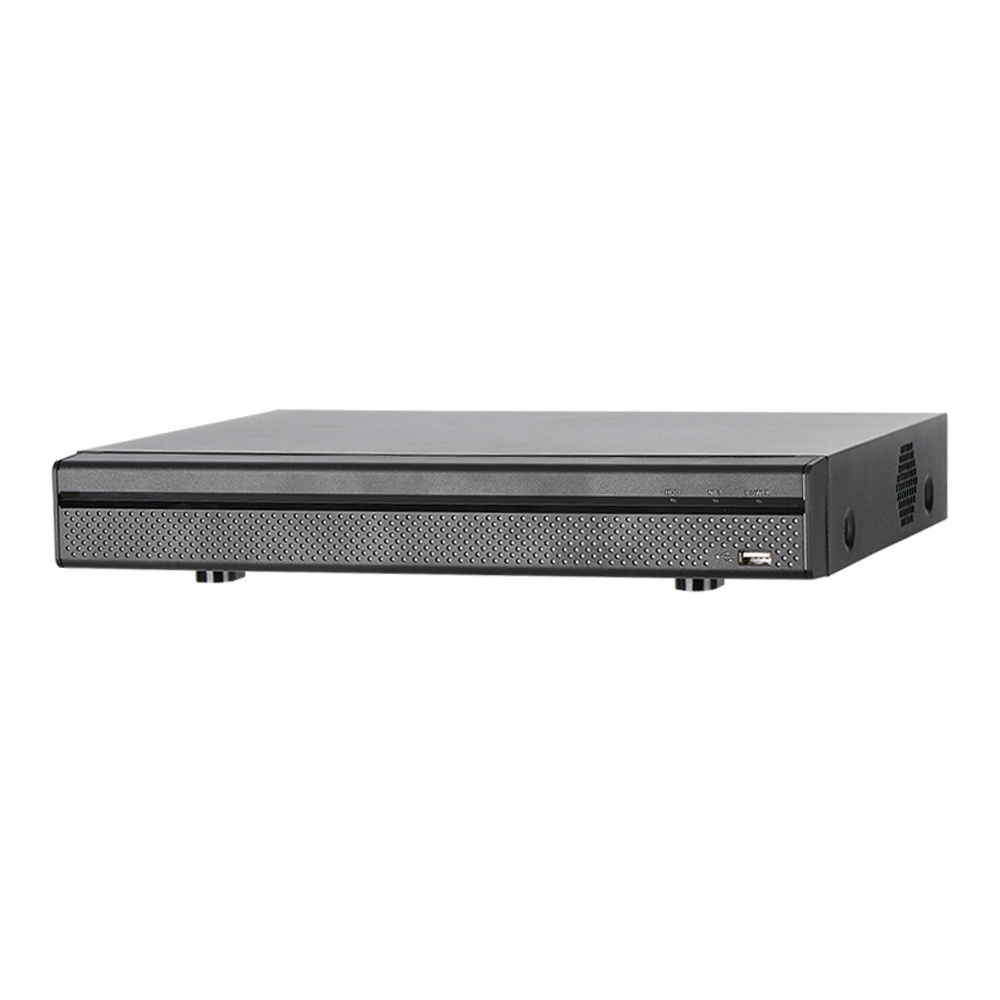

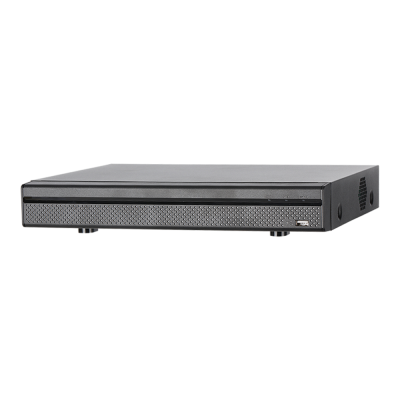

8CH 5-in-1 Analog / AHD / IP / CVI / TVI 1080P HD-CVI mini 1U DVR
SKU: WECICP-DVRMN1U8CH002
8CH 5-in-1 Analog / AHD / IP / CVI / TVI 1080P HD-CVI mini 1U DVR
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
PRODUCT FEATURES
- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 12 channels IP camera inputs, each channel up to 5MP
- Max. 48Mbps incoming bandwidth
- Smart Search and Intelligent Video System
System Compression | H.264+/H.264 |
---|---|
Main Processor | Embedded Processor |
Operating System | Embedded Linux |
Video Interface | 1 HDMI, 1 VGA |
Video Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16 |
HDCVI Camera Input | 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
IP Camera Input | 8+4 Channel, each channel up to 5MP |
OSD | Yes |
Recording Resolution | 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
Recording Frame Rate | Mainstream: 4M-N/1080P (1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Substream: D1/CIF/QCIF (1~15fps) |
Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop |
Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Playback Channels | 1/4/9 |
Playback Search | Time/Calendar Search, Event (motion) |
Playback Function | Play, Pause, FF, FB; Digital zoom |
Backup Mode | USB Device/Network |
Audio In | 1 |
Audio Out | 1 |
2 Way Audio | Reuse audio in/out, RCA |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
Alarm In | N/A |
Alarm Relay Output | N/A |
Network Interface | 1 RJ-45 Port (100M) |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
Network Max. Users | 128 |
Interoperability | ONVIF 2.42, CGI Conformant |
Mobile | iPhone, Android |
RS485 | 1 Port, for PTZ Control |
USB | 2 USB Ports (2 USB 2.0) |
RS232 | N/A |
RS422 | N/A |
Power Supply | DC12V/2A |
Power Consumption | <10W (Without HDD) |
Internal HDD | 1 SATA Port, up to 8TB capacity |
e-SATA | N/A |
Operating Conditions | -10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH |
Storage Conditions | -20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH |
Dimensions | Mini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2") |
Weight | Net weight 1.5kg (3.3lb) (Without HDD); Gross weight 2kg (4.4lb) |
- ManufactureriMaxCamPro
- Hard Drive #2I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
- Hard Drive #1I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
