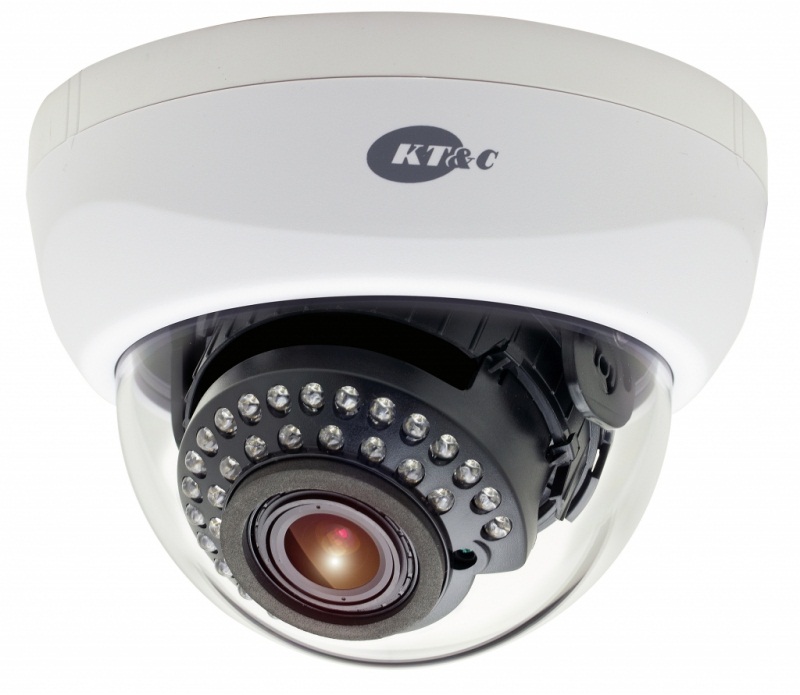

True Day/Night 750 TVL, 3-Axis, 2.8-12mm, 131' IR Range, Indoor Dome
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD sensor with high IR sensitivity.
- True Day/Night zero light operating range of 131 feet or more (depending on scene reflectivity) from 30 IR LEDs with Smart automatic exposure level adjust to achieve the desired IR brightness in a user defined area
- Simple and easy to use OSD setup menu - Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scenelighting conditions - Anti Color Roll for proper white balance independent of fluorescent or other types ofillumination - Optional Back Light Compensation (BLC) and Highlight Compensation (HLC) - Adjustable 2D-Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery
- 2.8~12mm 2 Megapixel Aspheric Varifocal DC iris lens to capture the desired field of view
- Dual voltage (12VDC/24VAC) with Anti Color Roll
- Service Video output for convenient installation, and ease of service
- 3-Axis gimbal for convenient wall or ceiling mounting
- Choose between black and white color housing to blend or contrast with the décor
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD sensor with high IR sensitivity.
- True Day/Night zero light operating range of 131 feet or more (depending on scene reflectivity) from 30 IR LEDs with Smart automatic exposure level adjust to achieve the desired IR brightness in a user defined area
- Simple and easy to use OSD setup menu - Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scenelighting conditions - Anti Color Roll for proper white balance independent of fluorescent or other types ofillumination - Optional Back Light Compensation (BLC) and Highlight Compensation (HLC) - Adjustable 2D-Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery
- 2.8~12mm 2 Megapixel Aspheric Varifocal DC iris lens to capture the desired field of view
- Dual voltage (12VDC/24VAC) with Anti Color Roll
- Service Video output for convenient installation, and ease of service
- 3-Axis gimbal for convenient wall or ceiling mounting
- Choose between black and white color housing to blend or contrast with the décor
| Imaging Device | 1/3" 960H High Sensitivity CCD |
| Video Format | NTSC |
| Picture Elements | NTSC: 1020(H)x508(V) |
| Effective Picture Elements | NTSC: 976(H) x 494(V) |
| Horizontal Resolution | More than 750 TVL |
| Sensitivity | 0 lux IR on; .01 lux native from sensor |
| IR LED | 30 LEDs, 850nm |
| IR Range* | 131’ (*As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination) |
| Smart IR Exposure Adjust | Off/On; adjustable for gain, size and location of sensing area |
| S/N Ratio | Over 50dB (AGC off) |
| Video Output | BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied |
| Gamma Correction | 0.45 |
| Lens Type | 2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6 |
| Lens Positioning | 3-axis flexible positioning for wall or ceiling mounting |
| Back Light Compensation | OFF/BLC/HLC Selectable |
| Auto Gain Control | Off/Low/Middle/High |
| Electronic Shutter | Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000 |
| White Balance | ATW/AWB/AWC->SET/Anti-Color Roll/Manual |
| Sync. Mode | Internal (plus Anti Color Roll White Balance option above) |
| Day & Night | Auto True D/N with motorized ICR; controlled by photo sensor; Auto, color or B/W |
| OSD Menu | Multiple functions using 3-axis joystick |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French |
| 2D-DNR | On/Off (level adjustable) |
| Digital Wide Dynamic Range | On/Off (Level Adjustable) |
| Mirror | Off/On |
| Motion Detection | Off/On for 4 selectable zones (On screen indication) |
| Privacy Mask | Off/On for 8 selectable zones |
| Lens Shading Correction | Off/On with adjustable level and center |
| Other OSD Functions | Camera Title with position and Font Color; Image Contrast/Sharpness; CRT/LCD display optimization; Negative Image; DPC (Dead Pixel Compensation) |
| Power Source | 12VDC/24VAC automatic |
| Power Consumption | 12VDC:420mA max. / 24VAC:4.8W max. |
| Operating Temperature | 5°F~140°F ; -15°C~60°C |
| Environmental | Indoor; up to 80%RH (non-condensing) |
| Mechanical | Three axis, twist-open dome; choice of black body (no suffix) and white body (W suffix) |
| Dimensions | 5.31” (135mm) diameter, 3.82” (97mm) high |
| Weight | .76 pounds./343 grams |
| Certifications | CE / FCC RoHS |
