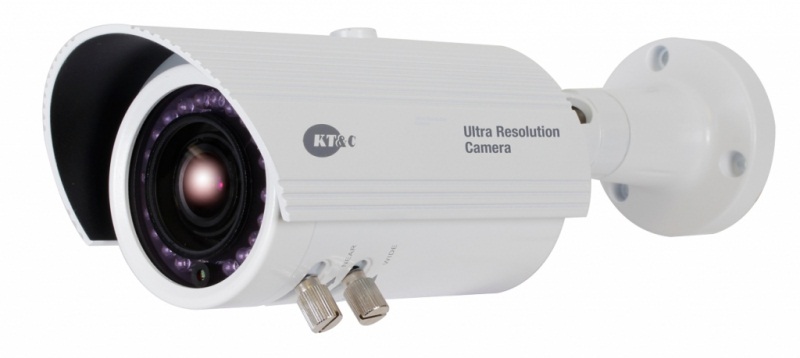

Outdoor True Day/Night, 750 TVL Bullet with IR
SKU: KPC-IRBULLET30W- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD II for high sensor IR sensitivity
- Varifocal 2.8~12mm DC iris lens to capture the desired field of view
- True Day/Night zero light operating range of 80 feet or more from 20 IR LEDs*
- Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion
- Simple and easy to use OSD setup menu - Adaptive Tone Curve Reproduction (ATR)/Electronic Wide Dynamic Range to properly expose images during unbalanced light contrast in the scene - Anti Color Roll white balance option resists fluorescent light interference - Optional Back Light Compensation (BLC) and Highlight Compensation (HLC) - Adjustable 2D-Noise Reduction to increase picture clarity and improve utilization of DVR disk storage - Privacy image masking for 4 configurable zones
- Dual voltage (12VDC/24VAC) with Anti Color Roll
- IP66 weather resistant
- External lens adjustment and service Video output for convenient installation, and ease of service
- Extreme Operating temperature down to -40 degrees
- 3-axis bracket conceals and protects cable
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD II for high sensor IR sensitivity
- Varifocal 2.8~12mm DC iris lens to capture the desired field of view
- True Day/Night zero light operating range of 80 feet or more from 20 IR LEDs*
- Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion
- Simple and easy to use OSD setup menu - Adaptive Tone Curve Reproduction (ATR)/Electronic Wide Dynamic Range to properly expose images during unbalanced light contrast in the scene - Anti Color Roll white balance option resists fluorescent light interference - Optional Back Light Compensation (BLC) and Highlight Compensation (HLC) - Adjustable 2D-Noise Reduction to increase picture clarity and improve utilization of DVR disk storage - Privacy image masking for 4 configurable zones
- Dual voltage (12VDC/24VAC) with Anti Color Roll
- IP66 weather resistant
- External lens adjustment and service Video output for convenient installation, and ease of service
- Extreme Operating temperature down to -40 degrees
- 3-axis bracket conceals and protects cable
Imaging Device | 1/3" 960H High Sensitivity CCD |
Video Format | NTSC –or- PAL (separate models) |
Picture Elements | NTSC: 1020(H)x508(V) PAL:1020(H)x596(V) |
Effective Picture Elements | NTSC: 976(H) x 494(V) PAL:976(H) x 582(V) |
Horizontal Resolution | More than 750 TVL |
Lens Type | Varifocal 2.8~12mm Megapixel DC Iris Type |
Sensitivity | 0 lux with Smart IR; 0.001 lux native from sensor – no ghosting |
Smart IR LEDs | 20 LEDs with output at 850nm |
Smart IR Range | 100 feet or more (depending on scene IR reflectivity) |
Smart IR Switch Points | On at ~1 lux; Off at ~3 lux |
S/N Ratio | Over 50dB (AGC off) |
Video Output | BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied |
OSD Menu | Multiple functions |
OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French |
Picture Adjust | Gamma 0.45 nominal; adjustable brightness, contrast, saturation, hue and gain. |
Day/Night | True D/N with motorized IR cut filter; Choose Color, B/W, Auto |
Digital WDR | Off/On level adjustable |
Back Light Compensation | OFF/On with Selectable area and level |
Highlight Compensation | OFF/On with Selectable area and level |
Auto Gain Control | Off/Low/Mid/High |
Electronic Shutter | 1/60 ~1/100,000 sec. |
Gamma | 0.45 nominal; adjustable for indoor/outdoor/manual color temperature and red/blue levels |
White Balance | ATW/AWC Set/Anti-Color Roll/Manual |
Sync. Mode | Internal (plus Anti-Chroma Crawl White Balance option above) |
2D-DNR | Off/On level adjustable |
Horizontal Mirror | Off/On |
Motion Detection | Off/On for 4 selectable zones (On screen indication on alarm) |
Privacy Mask | Off/On for 8 selectable zones |
Lens Shading Compensation | Off/On with selectable level and center point |
Defective Pixel Compensation | Manual, with area and threshold settings |
Display Optimization | Choose CRT/LDC, with selectable color levels |
Power Source | 12VDC/24VAC |
Power Consumption | 12VDC:360mA max. / 24VAC:4.9W max. |
Operating Temperature | -40°F~140°F ; -40°C~60°C |
Storage Temperature | -40°F~140°F ; -40°C~60°C |
Environmental | IP66 weather resistant |
Positioning | Flexible positioning for wall or ceiling mounting |
Mechanical | Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point |
Dimensions | Body alone (across sunshield): 3.23” diameter/5.71” long ; 8.82” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high |
Weight | 1.98 pounds / .9 kg. |
Certifications | CE / FCC / ROHS |
Warranty | 5 years |
