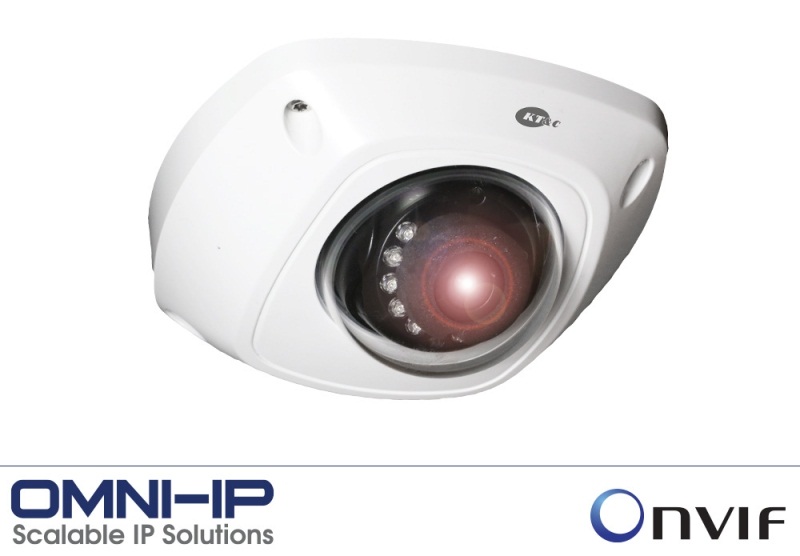

4 Megapixel Low Profiel Network Camera
SKU: KNC-p4LR3IR- Omni IP ‘hands free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 4MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .01lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 10 IR LEDs with 33 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- H.264+ substantially reduces main stream bandwidth and HDD file size when used with compatible KT&C NVRs
- True 120db WDR to handle the most challenging of bright or unbalanced lighting conditions
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view or 6mm for greater magnification*
- Built-in microphone and audio in/out for two way communication
- Alarm input and output trigger terminals for interface with external equipment
- Dual PoE/12VDC power - PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
- Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Low profile housing is adjustable +/- 30° pan, 360° rotation, and 75° tilt for flexible wall or ceiling mounting; fits single gang electrical box
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation with KA-LRTC1 Threaded Cap for Pendant Mount; KA-LRWM1 Wall Mount (special order); KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Omni IP ‘hands free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 4MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .01lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 10 IR LEDs with 33 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- H.264+ substantially reduces main stream bandwidth and HDD file size when used with compatible KT&C NVRs
- True 120db WDR to handle the most challenging of bright or unbalanced lighting conditions
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view or 6mm for greater magnification*
- Built-in microphone and audio in/out for two way communication
- Alarm input and output trigger terminals for interface with external equipment
- Dual PoE/12VDC power - PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
- Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Low profile housing is adjustable +/- 30° pan, 360° rotation, and 75° tilt for flexible wall or ceiling mounting; fits single gang electrical box
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation with KA-LRTC1 Threaded Cap for Pendant Mount; KA-LRWM1 Wall Mount (special order); KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1
![](https://www.worldeyecam.com/uploads/gallery/GEOVISION/knc-p4LR3IRA_dimensions.jpg)
KNC-p4LR3IRA_specSheet_vs1.2.pdf
Camera | |
Parameter | Rugged Low Profile Style Camera with Analytics, H.264+, IR, Audio and I/O |
Image Sensor | 1/3" Progressive Scan CMOS |
Total Pixels (H x V) | 2688x1520 4 Megapixel @ Maximum Resolution |
Day & Night | True Day & Night with ICR; Controllable by light sensor or via schedule |
Min. Illumination | .01lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD) |
IR LED | 10 IR LED 850nm |
IR Distance | 33 ft. (10m) Nominal IR performance depends on scene reflectivity |
Smart IR | OSD Controlled Off/On |
Shutter Speed | 1/3s ~ 1/10,000s |
WDR | 120dB Range; Off/On, Level Adjust |
BLC | BLC: Off/Top, Bottom, Left, Right, Center Weighted, or Custom Area |
White Balance | AWB; Locked; Incandesecent, Warm, Natural or Fluorescent Light |
3D DNR | Off/On, Level Adjust |
Lens | |
Focal Length (standard) | 2.8mm F=2.0 |
Lens Type | Fixed focal length |
Audio | |
Input | Built in microphone |
Output | Screw terminals (line level) |
Audio Compression | G.711 / G.722 / G.726 / MP2L2 |
Audio Bit Rate | 64Kbps (G.711) / 16Kbps(G.722) / 16Kbps(G.726) / 32~128Kbps(MP2L2) |
Video | |
Supported Resolutions | Main Stream: 2688x1520; 1920x1080; 1280x720 |
Sub Stream: 352x240; 640x360 | |
Maximum Frame Rates | 20FPS@2688x1520 ; 30FPS@1920x1080 ; 30FPS@1280x720 30FPS for sub stream |
Compression | H.264+ Main Profile, H.264 Main Profile, MJPEG |
Bit Rate | Nominal rates from drop down: 256, 512, 1024, 2048, 3072, 4096, 6144, 8192, 12288, 16384 Kbps, Customized rates: 32Kbps~16384Kbps |
Streaming | Dual-Stream at different frame rates and bandwidth |
Region of Interest | Image detail priority/enhancement for up to four user defined areas for main and/or sub stream |
Image Settings | Brightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjustable for position, size, color, etc.), Privacy masking |
Network | |
LAN | Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell |
Security | Multiple user access levels with password protection; Watermarking of captured video IP address filter; IEEE802.1X (Authentication) |
Protocol | IPv4, IPv6, HTTP, HTTPS, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, UDP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour |
Network Storage | Video upload to PC, FTP or NAS |
VMS Compatibility | ONVIF (Profiles S & G), PSIA, CGI, ISAPI |
Supported Browsers | Internet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in) |
Intelligent Video | |
Line Crossing Detection | Up to 4 independent boundaries, each with separate sensitivity control. Arming schedule by day of week and time of day. |
Area Intrusion Detection with Loitering Time | Up to 4 independent 4-sided areas, each with separate sensitivity, percentage and loitering time control. Arming schedule by day of week and time of day. |
Video Motion Detection | With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output |
Alarm & Event | |
Alarm Input | Screw terminals - SPST (transistor switch) |
Alarm Output | Screw terminals - SPST (transistor switch) |
Alarm Triggers | Intelligent video Motion Detection, Video Loss, Tampering, Network Disconnect, IP Address Conflict, Storage Exception, Wired Input Contact Closure |
Alarm Events | Notify NVR, send email, upload to FTP, trigger alarm output contact |
Edge Recording | |
SD Card Slot | Micro SD / SDHC / SDXC up to 128Gb |
NAS | Supports NFS, SMB/CFIS and ANR |
General | |
Reset Button | Yes |
Angle Adjustment | Pan: -30°-30°, Tilt: 0~75°, Rotation: 0-360° |
Power | PoE class 3 (IEEE 802.3af), 12VDC +/- 10%, 5W |
Interface | 8P/8C RJ-45F for Network and PoE, Power (DC 12V) Input |
Environmental | IP66 (Weather Resistant) |
Operating Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
Impact Protection | IK-10 Vandal Resistant |
Dimension | 3.93” × 3.84” × 1.83” [99.9×97.5×46.5mm] |
Weight | 1.32 lbs./600g |
Accessories | |
Mounting Options | KA-LRTC1 Thread Cap for Pendant Mount; KA-LRWM1 Wall Mount; KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1 |
