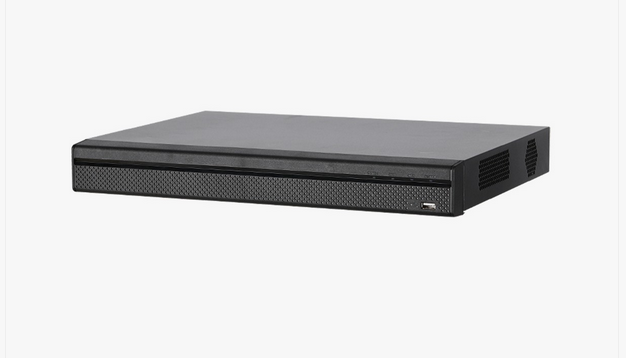

        8/16 Channel Penta-brid 4K 1U Digital Video Recorder

        WEC
        SKU: WECXVR5216AN-S2



        > Embedded processor
        > H.264+/H.264 dual-stream video compression
        > Support HDCVI/AHD/TVI/CVBS/IP video inputs
        > Max 12/24 channels IP camera inputs, each channel up to 8MP
        > Max 48/96Mbps Incoming Bandwidth
        > Smart Search and Intelligent Video System


          • 50% less
          Market price:$836.00 save $418.00
        • $418.00

        OR

        PRODUCT FEATURES

        > Embedded processor
        > H.264+/H.264 dual-stream video compression
        > Support HDCVI/AHD/TVI/CVBS/IP video inputs
        > Max 12/24 channels IP camera inputs, each channel up to 8MP
        > Max 48/96Mbps Incoming Bandwidth
        > Smart Search and Intelligent Video System


        System Overview

        Throughout the years, HDCVI technology gained international fame for becoming a brand new international standard for video surveillance, and has never stopped evolving. From 2MP to 4MP, now worldeyecam Technology brings HDCVI into the 4K era. It presents a much clear and vivid world.

        As the perfect solution to upgrade existing video surveillance systems, XVR supports penta-brid access technology such as HDCVI, AHD, TVI, CVBS and IP to effortlessly integrate with popular industry formats, offering an affordable solution loaded with flexible options.

        Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. It is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education

        Functions

        Smart H.264+

        Smart Codec, H.264+ can reduce up to 70% bit rate and storage requirements without having to invest in new cameras.

        HDCVI/AHD/TVI/CVBS Auto-detect

        The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

        8MP Resolution

        The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera and IP camera input.

        Coaxial Audio/Upgrade/Alarm

        The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

        Intelligent Fan Design

        The intelligent fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience while extending the life of the fan at the same time.

        Spot Output

        It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

        Intelligent Video System (IVS)

        With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

        Face Detection

        It is a type technology being used in a variety of applications that search or identify individuals which show front cameras.

        Smart Search

        This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs

        System

        Main Processor

        Embedded Processor

        Operating System

        Embedded LINUX

        Video and Audio

        Analog Camera Input

        8/16 Channel, BNC

        HDCVI Camera

        4K, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

        AHD Camera

        5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

        TVI Camera

        5MP, 3MP, 1080P@25/30, 720P@25/30fps

        CVBS Camera

        PAL/NTSC

        IP Camera Input

        8+4/16+8 Channel, each channel up to 8MP

        Audio In/Out

        1/1, RCA

        Two-way Talk

        Reuse audio in/out, RCA

        Recording

        Compression

        H.264+/H.264

        Resolution

        4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF

        Record Rate

        Main stream: 4K(1~7fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)

        Sub steram:960H(1~15fps);

        D1/CIF/QCIF(1~25/30fps)

        Bit Rate

        1Kbps ~ 6144Kbps Per Channel

        Record Mode

        Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

        Record Interval

        1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

        Display

        Interface

        1 HDMI, 1 VGA

        Resolution

        HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768

        VGA: 1920×1080, 1280×1024, 1280×720, 1024×768

        Multi-screen Display

        When IP extension mode not enabled:

        8CH: 1/4/8/9

        16CH: 1/4/8/9/16

        When IP extension mode enabled:

        8CH: 1/4/8/9/16

        16CH: 1/4/8/9/16/25

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        Network

        Interface

        1 RJ-45 Port (1000M)

        Network Function

        HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support worldeyecam IP camera, DVR, NVS, etc.)

        Max. User Access

        128 users

        Smart Phone

        iPhone, iPad, Android

        Interoperability

        ONVIF 2.42, CGI Conformant

        Video Detection and Alarm

        Trigger Events

        Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

        Video Detection

        Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

        Alarm input

        N/A

        Relay Output

        N/A

        Playback and Backup

        Playback

        8CH: 1/4/9

        16CH: 1/4/9/16

        Search Mode

        Time /Date, Alarm, MD and Exact Search (accurate to second)

        Playback Function

        Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

        Backup Mode

        USB Device/Network

        Storage

        Internal HDD

        2 SATA Ports, up to 8TB capacity for each disk

        eSATA

        N/A

        Auxiliary Interface

        USB

        2USB Ports (1 USB 2.0 , 1 USB 3.0)

        RS232

        N/A

        RS485

        1 Port, for PTZ Control

        Electrical

        Power Supply

        8CH:DC12V/4A

        16CH:DC12V/5A

        Power Consumption

        <15W (Without HDD)

        Construction

        Dimensions

        1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")

        Net Weight

        2.35kg (5.2 lb) (without HDD)

        Gross Weight

        3.2kg (7.05lb)

        Installation

        Desktop installation

        Environmental

        Operating Conditions

        -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

        Storage Conditions

        -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

        Third-party Support

        Third-party Support

        worldeyecam, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

        Certifications

        Certifications

        FCC: Part 15 Subpart B

        CE: CE-LVD: EN 60950-1/IEC 60950-1

        CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

        UL: UL 60950-1
