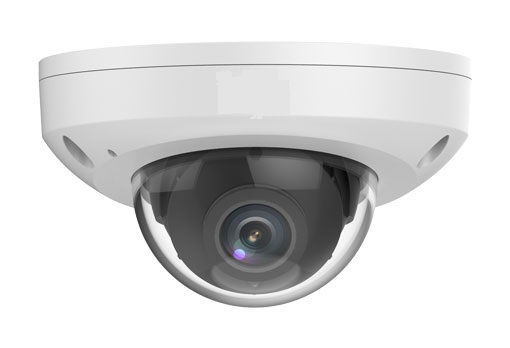

4MP Vandal-resistant IR Fixed Mini Dome Camera

WEC
SKU: WEC314SR-DVPF28
  • • 1/3",progressive scan,CMOS
    • Up to 2592×1520 resolution,20fps
    • 2.8mm/3.6mm optional
    • Smart IR, up to 15m IR distance
    • 2D/3D DNR, ROI, 9:16 corridor mode
    • Ultra 265,H.265,ONVIF
    • DC12V,PoE.Wide voltage range of ±25%
    • IP67
    • IK10
    • 50% less
    Market price:$336.00 save $168.00
  • $168.00

OR
  • • 1/3",progressive scan,CMOS
    • Up to 2592×1520 resolution,20fps
    • 2.8mm/3.6mm optional
    • Smart IR, up to 15m IR distance
    • 2D/3D DNR, ROI, 9:16 corridor mode
    • Ultra 265,H.265,ONVIF
    • DC12V,PoE.Wide voltage range of ±25%
    • IP67
    • IK10
 WEC314SR-DVPF28
Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.03.6mm@F2.0
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
3.68132.416.28.1
Angle of View (H)104.4°76.8°
Angle of View (V)54.4°44.1°
Angle of View (O)135.7°99.8°
Adjustment angle Pan: 0° ~ 90°Tilt: 0° ~ 65°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N≥55 dB
IR RangeUp to 15m (49ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, Up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/OAudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)Φ110 x 61mm (Ø4.3” x 2.4”)
Weight0.25kg (0.55lb)
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10

Data Sheet

User manual

Camera Installation Guide-V1.00

    • SKU
      WEC314SR-DVPF28
    • Weight
      0.55 lbs
  • Manufacturer
    WEC
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Lens Size
    2.8mm
