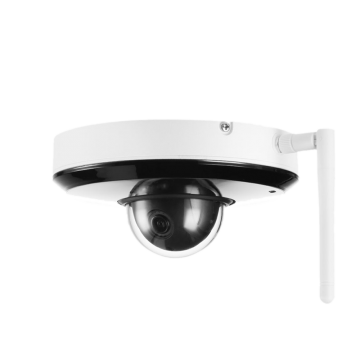

2MP 3x Starlight IR PTZ Network Camera
        • 2MP 3x Starlight IR PTZ Network Camera
        • 2MP 3x Starlight IR PTZ Network Camera

        2MP 3x Starlight IR PTZ Network Camera

        WEC
        SKU: WECSD1A203T-GN-W

        > 1/2.8” 2Megapixel STARVIS™ CMOS
        > Powerful 3x optical zoom
        > Starlight, WDR
        > Max. 25/30fps@1080P
        > IVS
        > Support PoE
        > IR distance up to 15m
        > IP66

          • 50% less
          Market price:$716.00 save $358.00
        • $358.00

        OR

        PRODUCT FEATURES

        > 1/2.8” 2Megapixel STARVIS™ CMOS
        > Powerful 3x optical zoom
        > Starlight, WDR
        > Max. 25/30fps@1080P
        > IVS
        > Support PoE
        > IR distance up to 15m
        > IP66

        System Overview

        Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 1080P resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

        Functions

        Starlight Technology

        For challenging low-light applications, worldeyecam.com’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

        Wide Dynamic Range

        The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

        Smart H.265+

        Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

        Environmental

        Worldeyecam.com cameras operate in extreme temperature environments, rated for use in temperatures from -30°C to +60 °C (-22 °F to +140°F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.

        Protection

        The camera allows for 6KV lightning rating,which provides effective protection for both the camera and its structure against lightning.

        Interoperability

        The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

        Camera

        Image Sensor

        1/2.8” STARVIS™ CMOS

        Effective Pixels

        1920(H) x 1080(V), 2 Megapixels

        RAM/ROM

        512M/128M

        Scanning System

        Progressive

        Electronic Shutter Speed

        1/1s~1/30,000s

        Minimum Illumination

        Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux@F1.8 (IR on)

        S/N Ratio

        More than 50dB

        IR Distance

        Distance up to 15m (49.2ft)

        IR On/Off Control

        Auto/Manual

        IR LEDs

        3

        Lens

        Focal Length

        2.7mm~8.1mm

        Max. Aperture

        F1.8

        Angle of View

        H: 105.6° ~ 35.2°

        Optical Zoom

        3x

        Focus Control

        Auto/Manual

        Close Focus Distance

        100mm~ 1000mm

        DORI Distance

        Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

        Detect

        Observe

        Recognize

        Identify

        100.4m(329.4)

        40.2m(131.9ft)

        20.1m(65.9ft)

        10m(32.8ft)

        PTZ

        Pan/Tilt Range

        Pan: 0° ~ 355°; Tilt: 5° ~ 90°

        Manual Control Speed

        Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s

        Preset Speed

        Pan: 80° /s; Tilt: 40° /s

        Presets

        300

        PTZ Mode

        8 Tour

        Speed Setup

        Human-oriented focal Length/speed adaptation

        Power up Action

        Auto restore to previous PTZ and lens status after power failure

        Idle Motion

        Activate Preset/Tour if there is no command in the specified period

        Protocol

        DH-SD

        Intelligence

        Event Trigger

        Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

        Auto Tracking

        N/A

        IVS

        Tripwire, Intrusion,Abandoned/Missing

        Advanced Intelligent Functions

        Face Detection

        Video

        Compression

        H.265+/H.265/H.264+/H.264

        Streaming Capability

        3 Streams

        Resolution

        1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

        Frame Rate

        Main stream: 1080P/720P(1 ~ 25/30fps)

        Sub stream1: D1/CIF(1 ~ 25/30fps)

        Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)

        Bit Rate Control

        CBR/VBR

        Bit Rate

        H.265/H.264: 448K ~ 8192Kbps

        Day/Night

        Auto(ICR) / Color / B/W

        Backlight Compensation

        BLC / HLC / WDR(120dB)

        White Balance

        Auto,ATW,Indoor,Outdoor,Manual

        Gain Control

        Auto / Manual

        Noise Reduction

        Ultra DNR (2D/3D)

        Motion Detection

        Support

        Region of Interest

        Support

        Electronic Image Stabilization (EIS)

        N/A

        Defog

        Support

        Digital Zoom

        16x

        Flip

        180°

        Privacy Masking

        Up to 24 areas

        Audio

        Compression

        G.711a/G.711mu/G.726/AAC

        Network

        Ethernet

        RJ-45 (10XBase-T/100Base-TX)

        Protocol

        IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

        Interoperability

        ONVIF Profile S&G, API

        Streaming Method

        Unicast / Multicast

        Max. User Access

        20 users

        Edge Storage

        NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS, DMSS

        Smart Phone

        IOS, Android

        Certifications

        Certifications

        CE: EN55032/EN55024/EN50130-4

        FCC: Part15 subpartB,ANSI C63.4- 2014

        UL: UL60950-1+CAN/CSA C22.2,No.60950-1

        Interface

        Video Interface

        N/A

        RS485

        N/A

        Audio I/O

        Mic in/Line in, Line out

        Alarm I/O

        N/A

        Electrical

        Power Supply

        DC 12V/1.5A, PoE(802.3af)

        Power Consumption

        7.8W, 10.5W (IR on)

        Environmental

        Operating Conditions

        -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

        Ingress Protection

        IP66

        Vandal Resistance

        IK08

        Construction

        Casing

        Metal

        Dimensions

        Φ128(mm) x 63(mm)

        Net Weight

        0.49kg(1.08lb)

        Gross Weight

        0.73kg(1.6lb)



        DOWNLOADS

        • Datasheet

        • User Manual

        • Drawings

          • SKU
            WECSD1A203T-GN-W
          • Weight
            1.08 lbs
        • Manufacturer
          WEC
        • Camera Type
          PTZ
        • Camera Signal
          IP
        • Camera Resolution
          1080p
        • Lens Size
          3X
