2MP Covert Network Camera

WEC
SKU: WECDS-2CD6424FWD-10

1/2.7’’ progressive scan CMOS
• Up to 2MP resolution
• 120dB WDR
• PoE supported
• Onboard storage, up to 128GB
• Triple video streams
• Support Defog, HLC

    • 50% less
    Market price:$920.00 save $460.00
  • $460.00

OR

1/2.7’’ progressive scan CMOS
• Up to 2MP resolution
• 120dB WDR
• PoE supported
• Onboard storage, up to 128GB
• Triple video streams
• Support Defog, HLC

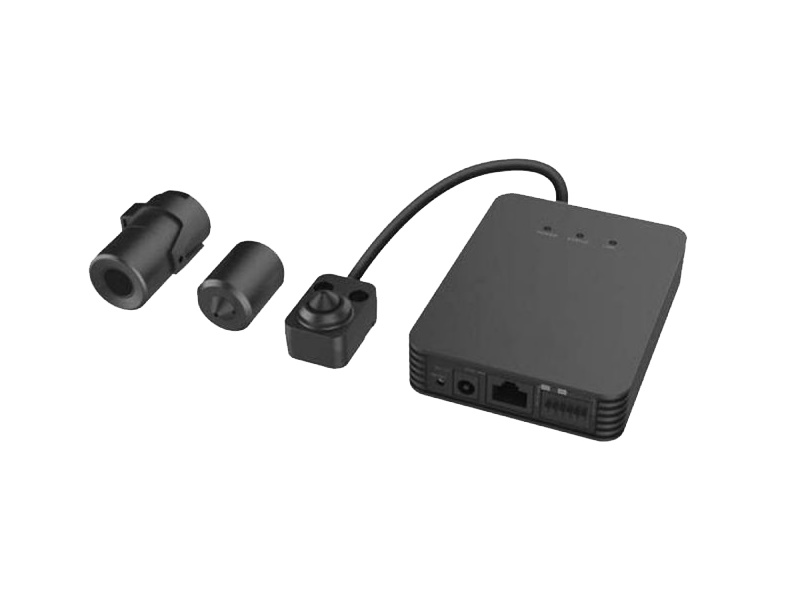

DS-2CD6424FWD-XX is the covert camera with 4 optional lens shapes. Key features including: Cylindrical, block-shaped, fixed focal and ball-shaped of lens are optional; 2m or 8m (between lens and camera body) cable is optional for flexible installation; DS-2CD6424FWD-XX 1080p HD resolution for real-time output; Rotate mode, BLC and True WDR are supported for different environment.
Camera
Image Sensor:1/2.7” Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:0.01Lux @(F1.2,AGC ON) ,0 Lux with IR;0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter time:1s ~ 1/100,000s
Slow shutter:Support
Lens:L10/L20/10/20: 3.7mm @F2.5, angle of view: 78.5°
L30/30: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9° (Ingress Protection: IP66)
L40: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9°/ Fisheye: 1.39mm@F2.0, angle of view: 180° (Ingress Protection: IP66)
Lens Mount:M12
Lens Cable Length:Optional 2m or 8m
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.264/MJPEG
H.264 code profile:Main Profile / High Profile
Video bit rate:32Kbps~16Mbps
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 160Kbps (MP2L2)
Dual Stream:Yes
Triple Streams:Yes
Max. Image Resolution:1920 x 1080
Frame Rate:50Hz: 25fps (1920×1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920×1080, 1280 × 960, 1280 × 720)
Third Stream:Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 10fps (1280 × 960); 60Hz: 10fps (1280 × 960)
Image Enhancement:BLC/3D DNR/ROI/Defog
Image Settings:Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:Support
Smart Defog:Support
3D DNR:support
ROI:Up to 4 fixed areas in each stream
Picture Overlay:Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional
Day/Night Switch:Auto / Timing / Alarm trigger
Network
Network Storage:NAS (Support NFS,SMB/CIFS)
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:1 RJ45 10M/100M Ethernet interface
Audio:1 input, 1 output
Audio Input:1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio Output:1-ch 3.5mm audio interface
Alarm:1-ch alarm input and 1-ch alarm output
Alarm Input:1
Alarm Output:1
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Smart Feature-set
Recognition:Face Detection
General
Operation Condition:Temperature :-30 °C to 60 °C (-22 °F to 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 10%, PoE (802.3af)
Power Consumption:Max. 6.5 W
Dimensions:78×105×32 mm (3.07” × 4.13” × 1.26”)
Weight:Main body: 210g
Cylindrical lens: 113g (2m), 233g (8m)
Block-shaped lens: 99g (2m), 220g (8m)
Fixed focal lens: 129g (2m), 242g (8m)
Ball-shaped lens: 120g (2m), 268.4g (8m)
Package + accessories: 224g
    • SKU
      WECDS-2CD6424FWD-10
    • Weight
      210 lbs
  • Manufacturer
    WEC
  • Camera Type
    License Plate Camera
  • Camera Signal
    IP
  • Camera Resolution
    2 Megapixel
