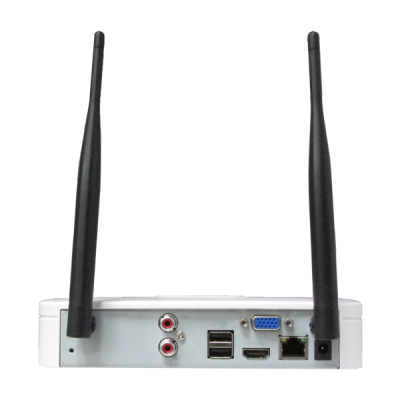

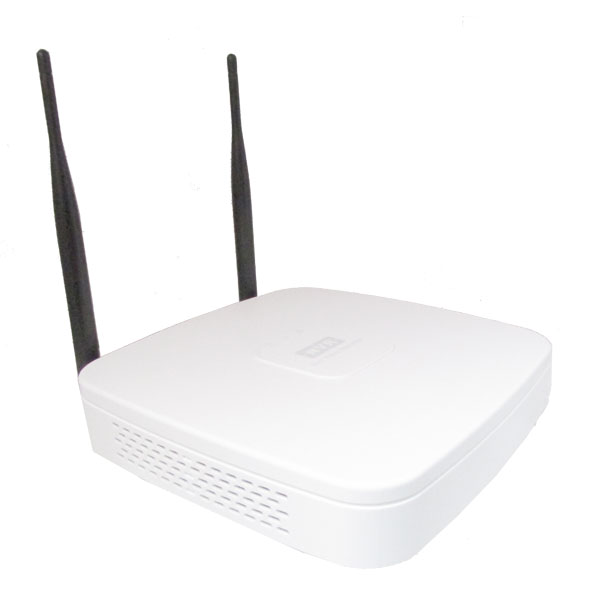

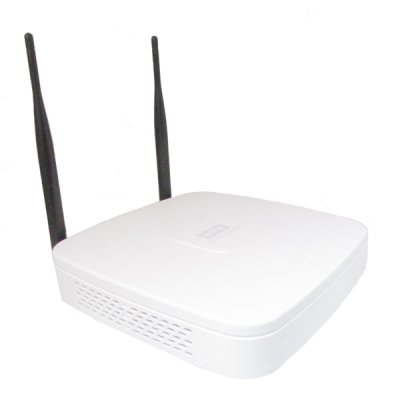

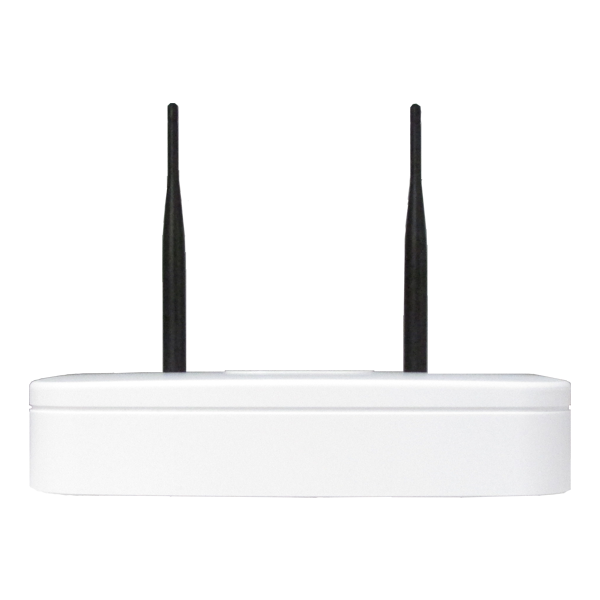

4CH Smart Mini 1U WiFi Network Video Recorder

The Model is 4CH Smart 1U WiFi Network Video Recorder. This 1U NVR records up to 4 cameras, comes with a Built-in WiFi module for wireless cameras. It can handle up to 1920x1080p of resolution from Wieless IP security cameras.

This NVR can support up to 6TB. Product Features: Up to 4 channel IP camera input. Full 720p @ 30FPS & 1080P @ 15FPS. H.264/MJPEG dual codec decoding. Max 80Mbps incoming bandwidth. HDMI/VGA simultaneous video output.

All channel synchronous realtime playback, GRID interface. Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brick com, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc. ONVIF Version 2.4 conformance. 3D intelligent positioning with Dahua PTZ camera.

Support 1 SATA HDD up to 4TB, 2 USB2.0. Support WiFi network connection. Multiple network monitoring: Web viewer, SmartPSS, mobile app. DVR Features: H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

This 1U NVR records up to 4 cameras, comes with a Built-in WiFi module for wireless cameras. It can handle up to 1920x1080p of resolution from Wieless IP security cameras. This NVR can support up to 6TB.

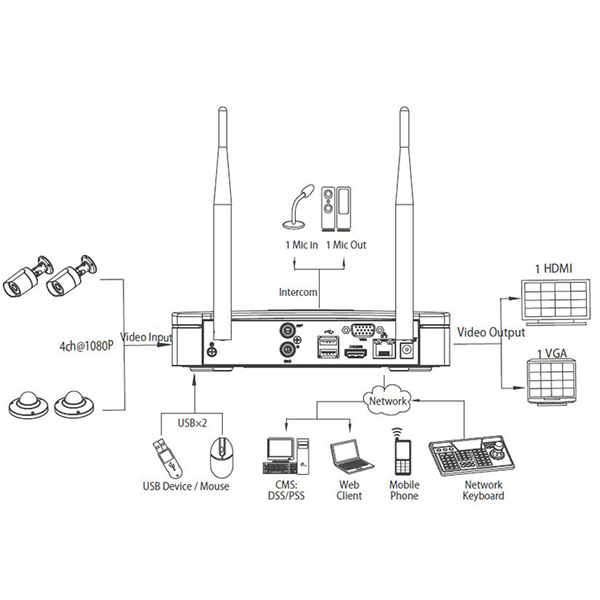

Product Features

• Up to 4 channel IP camera input
• Full 720p @ 30FPS & 1080P @ 15FPS
• H.264/MJPEG dual codec decoding
• Max 80Mbps incoming bandwidth
• HDMI/VGA simultaneous video output
• All channel synchronous realtime playback, GRID interface
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brick com, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
• 3D intelligent positioning with Dahua PTZ camera
• Support 1 SATA HDD up to 4TB, 2 USB2.0
• Support WiFi network connection
• Multiple network monitoring: Web viewer, SmartPSS, mobile app.

HDDs not included with purchase but can be added for an additional cost.

DVR Features

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.
