P3T1HA P3 12 or 24VDC Timer
        • P3T1HA P3 12 or 24VDC Timer
        • P3T1HA P3 12 or 24VDC Timer

        P3T1HA P3 12 or 24VDC Timer

        Preferred Power
        SKU: WECP3T1HA
        • Quick and accurate time range adjustment from 1 second to 60 minutes
        • LED indicates relay is energized
        • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure
        • Selectable relay activation at the start or end of the timing cycle
        • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need for two timers)
        • Built-in reset feature which cancels timing cycle
        • Repeat (pulser/flasher) mode
        • Snap Trac compatible
        • Lifetime warranty
          • 25% less
          Market price:$32.00 save $8.00
        • $24.00

        OR
        • Quick and accurate time range adjustment from 1 second to 60 minutes
        • LED indicates relay is energized
        • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure
        • Selectable relay activation at the start or end of the timing cycle
        • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need for two timers)
        • Built-in reset feature which cancels timing cycle
        • Repeat (pulser/flasher) mode
        • Snap Trac compatible
        • Lifetime warranty

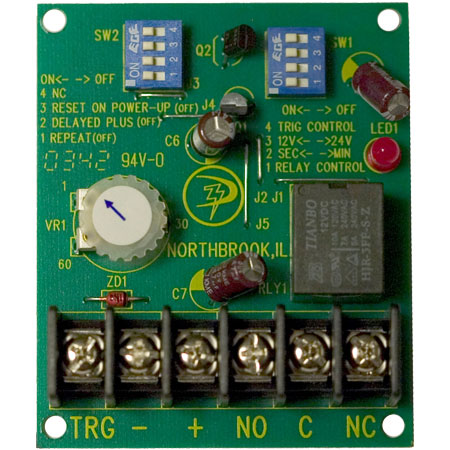

        The P3T1HA is a programmable timer designed for many functions including access control applications, siren/bell cut off module, dialer delay and guard supervisory timers.

        The P3T1HA provides a momentary relay activation at the end of a desired timing cycle. In addition it will cancel timing cycle and reset the timer is desired.

        • 12 or 24VDC operation is selectable
        • Current draw: Stand-by 3mA, relay energized 40mA
        • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure
        • Form “C” relay contacts are 8Amps @ 120VAC/28VDC
        • Board dimensions: 2.5” (L) x 3” (W) x .625” (H)

        P3T1HA Spec Sheet
