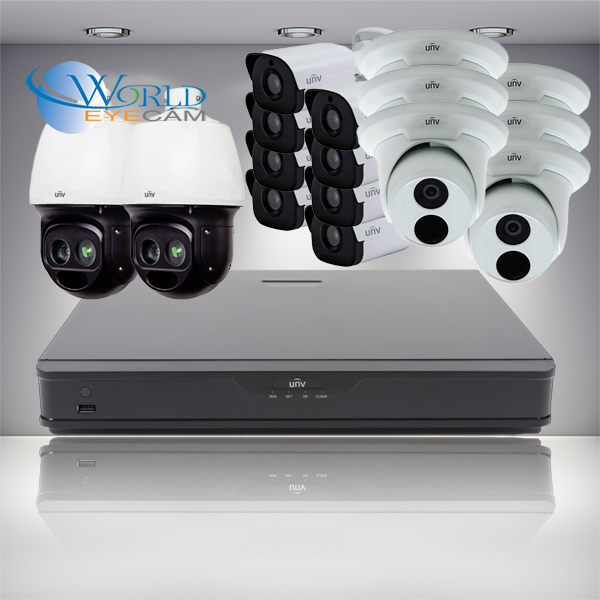

Uniview 16 Ch NVR with (2) 22x Zoom PTZ Cameras, (8) 4MP Bullet Cams and (6) 4MP Dome Cams Kit
The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder
The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!
The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens. Also you can control the positioning of your camera with the controls on this NVR.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!
The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens. Also you can control the positioning of your camera with the controls on this NVR.
The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder
Product Features
- 16 IP Channel Inputs
- 16 Independent 100M PoE+ Ports
- 1 HDMI and 1 VGA Video Outputs
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- 1 RJ-45 10/100/1000M Ethernet Interface
- 2 SATA Interfaces for Internal Storage
- ONVIF Complianth
Remote Monitoring
Central Monitoring System: Have more than one location? Well accessing each of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP address.
Playback and Recording
Multiple Playback and Recording Options: The multiple recording options allow you to set your Universal DVR/NVR to record on a set schedule, continuously around-the-clock, or to further conserve hard drive space: only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users, using the multiple playback features.
H.264 Compression
H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
H.265 Compression
H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.
Push Alerts
Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
E-map Function
E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.
PTZ Control
3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.
Custom System Design
Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.
**There are NO contracts or monthly fees with any WorldEyeCam purchase**
| SPECIFICATIONS | |
| Model | NVR302-16E-16P |
| IP Camera Inputs | 16 Channels |
| Two-way Talk | 1 Channel, RCA Mic / Speaker Interfaces |
| Display Interface | 1 HDMI, 1 VGA |
| Display Resolution | HDMI: 4K (3840 x 2160); 1920 x 1080; 1600 x 1200; 1280 x 720; 1280 x 1024; 1024 x 768 VGA: 1920 x 1080; 1600 x 1200; 1280 x 720; 1024 x 768 |
| Display Split | 1 / 4 / 8 / 9 / 16 |
| Recording Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Incoming Bit Rate | 160Mbps |
| Outgoing Bandwidth | 320Mbps |
| Alarm Inputs | 4 Channels |
| Relay Outputs | 1 Channel |
| Synchronized Playback | 4 x 12MP@20fps; 4 x 4K@30fps; 8 x 4MP@20fps; 16 x 1080p@30fps |
| Backup Media | External USB or Network Download |
| Network interface | 1 10/100/1000M RJ-45 Ethernet Interface |
| Remote Connections | 128 Connections Maximum |
| HDD Interfaces | 2 SATA interfaces |
| USB Interfaces | 1 USB2.0 (Front), 1 USB3.0 (Rear) |
| Power Requirement | 100 - 240 VAC |
| Power Consumption | < 21W (Without HDD) |
| PoE Ports | 16 |
| PoE Power | Max 30W for each port, 200W Total Power Budget |
| Operating Environment | 14° - 131° Fahrenheit |
| Dimensions | 380mm x 315mm x 49mm |
| Weight (without HDD) | ~6lbs |
- ManufacturerUniview
- Camera TypeBullet
- Hard DriveI will install my own hard drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive
- Hard Drive #2I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- CablesNo Cable Needed, 1000 FT SPOOL CAT5 CABLE, 2 x 1000 FT SPOOL CAT5 CABLE, 16 X 200 FT CAT5 CABLE
- Warranty3 Year warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
