Uniview IPC3614SR3ADPF28F-BK | 4MP Network IR Turret Camera SV-TD4-B-N

Uniview
SKU: UN-IPC3614SR3ADPF28F-BK

Optics

  • Day/night functionality
  • Up to 120dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (98ft) IR distance




Compression

  • Ultra 265, H.264, MJPEG
  • Triple streams




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • Micro SD, up to 256GB
  • Built-in Mic
  • 2KV surge protection designed for network interface
  • IP67
  • 3-Axis




Motion Detection

  • Body detection,Intrusion



More Information
Image Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Image Size4MP (2688*1520)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
Focal Length2.8mm
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.86325.212.66.3
IR DistanceDistance up to 30m (98.43ft)
S/N RatioMore than 50dB
Angle of ViewHorizontal: 107.8° ; Vertical: 57° ; Diagnal: 140.1°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra 265, H.265, H.264, MJPEG
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 4 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Statistical AnalysisPeople counting
Audio CompressionG.711
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 5.5W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
DimensionsΦ118 x 96mm (Φ4.6” x 3.8”)
Weight0.33kg (0.73lb)



    • 62% less
    Market price:$420.00 save $260.00
  • $160.00

OR

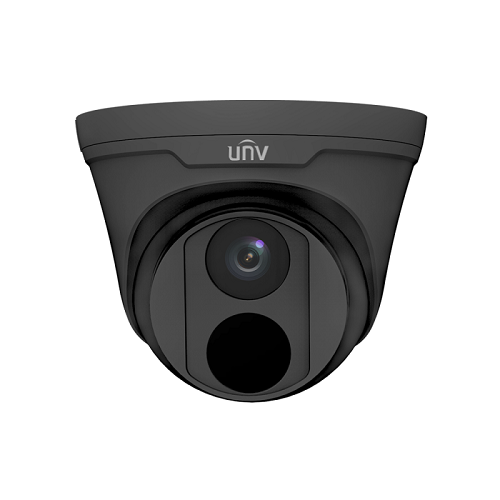

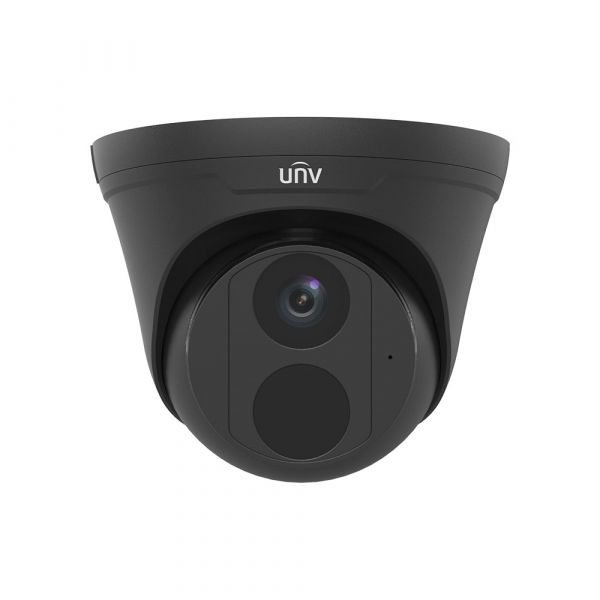

The Uniview IPC3614SR3ADPF28F-BK is a professional-grade 4-megapixel network IR turret camera designed for indoor and outdoor surveillance applications. This camera features a high-quality 4-megapixel sensor that delivers exceptional image quality with up to 2688 x 1520 pixels.

The advanced IR technology in this camera provides clear and detailed footage even in complete darkness, with a maximum IR range of up to 30 meters. This makes it an ideal solution for use in low-light or nighttime environments.

This camera also features a turret design, making it easy to install and adjust the viewing angle as needed. The camera is IP67-rated, making it resistant to dust and water, allowing it to operate even in harsh weather conditions.

The Uniview IPC3614SR3ADPF28F-BK supports H.265 compression technology, which reduces the amount of bandwidth and storage space required for video footage. Additionally, it supports Power over Ethernet (PoE), which simplifies installation by eliminating the need for a separate power supply.

This camera is ONVIF compliant, making it compatible with a wide range of third-party surveillance systems. It also features a built-in microSD card slot, providing local storage options for video footage.

In summary, the Uniview IPC3614SR3ADPF28F-BK is a reliable and high-quality surveillance camera designed for a wide range of security applications. With advanced features such as IR technology, a turret design, and H.265 compression, this camera delivers clear and detailed video footage in a variety of lighting conditions while also being resistant to harsh weather conditions. Its ONVIF compliance and microSD card slot make it a versatile option that can be integrated with a variety of security systems.

Optics

  • Day/night functionality
  • Up to 120dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (98ft) IR distance




Compression

  • Ultra 265, H.264, MJPEG
  • Triple streams




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • Micro SD, up to 256GB
  • Built-in Mic
  • 2KV surge protection designed for network interface
  • IP67
  • 3-Axis




Motion Detection

  • Body detection,Intrusion



More Information
Image Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Image Size4MP (2688*1520)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
Focal Length2.8mm
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.86325.212.66.3
IR DistanceDistance up to 30m (98.43ft)
S/N RatioMore than 50dB
Angle of ViewHorizontal: 107.8° ; Vertical: 57° ; Diagnal: 140.1°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra 265, H.265, H.264, MJPEG
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 4 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Statistical AnalysisPeople counting
Audio CompressionG.711
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 5.5W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
DimensionsΦ118 x 96mm (Φ4.6” x 3.8”)
Weight0.33kg (0.73lb)



    • SKU
      UN-IPC3614SR3ADPF28F-BK
    • Weight
      0.99 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Turret
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    2.8mm
  • Shipping Lead Time
    Ships Same Day
