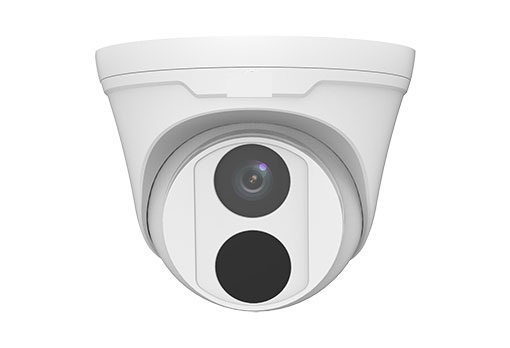

Uniview IPC3615LR3-PF28-D | 5MP Fixed Dome Network Camera

SKU: IPC3615LR3-PF28-D

1/2.7" CMOS
ICR
2592×1944 15fps
2560×1440 20fps
Ultra 265/H.264/MJPEG
dual streams
DC12V & PoE
DC12V output@PoE
Weatherproof IP67
IR range: up to 98ft
IPC3615LR3-PF28-D

Shipping info
We deliver worldwide
Learn more
Payment methods
Learn more
Return Policy
We accept returns
Learn more
Customer Reviews
Check out our customer Reviews
Learn more

The Uniview IPC3615LR3-PF28-D is a high-quality, 5MP fixed dome network camera that provides reliable and accurate surveillance monitoring for a wide range of applications. With its advanced features and high resolution, this camera is perfect for both indoor and outdoor use.

One of the key features of this camera is its 5MP resolution, which allows it to capture clear and detailed images. It also features a fixed 2.8mm lens and built-in infrared (IR) illumination, which provides clear images even in low-light conditions. The camera's True Day/Night (ICR) feature allows it to switch between color and black and white modes for optimal image clarity in different lighting conditions.

The Uniview IPC3615LR3-PF28-D also features advanced video analytics, including intrusion detection and line crossing detection, which can automatically alert you to any suspicious activity on your property. Additionally, this camera supports Power over Ethernet (PoE) for easy installation and maintenance and can be easily integrated into Uniview's NVRs for a complete security solution.

In terms of physical specifications, this camera has durable, weather-resistant metal housing and is rated for outdoor use with an IP67 weather-resistant rating. It can also withstand extreme temperatures from -22°F to 140°F (-30°C to 60°C), making it suitable for use in a variety of environments.

Overall, the Uniview IPC3615LR3-PF28-D is a versatile and reliable security camera that is suitable for a wide range of applications, from residential properties to commercial buildings and public spaces. Its high resolution, advanced features, and durable design make it an ideal solution for anyone in need of a high-quality surveillance camera.

PRODUCT FEATURES

1/2.7" CMOS
ICR
2592×1944 15fps
2560×1440 20fps
Ultra 265/H.264/MJPEG
dual streams
DC12V & PoE
DC12V output@PoE
Weatherproof IP67
IR range: up to 98ft
WEC3615LR3-PF28-D

SPECIFICATION

Camera	WEC3615LR3-PF28-D
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0		4.0mm@F2.0
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	2.8mm	42	16.8	8.4	4.2
	4.0mm	60	24	12	6
Angle of view(H)	105.3°		79.7°
Angle of View (V)	69.5°		51.8°
Angle of View (O)	136.9°		98.0°
Shutter	Auto/Manual, 1~1/100000 s
Adjustment angle	Pan: 0°~360°		Tilt: 0°~75°
Min. Illumination	Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
Noise Reduction	2D/3D
S/N	>52dB
WDR	DWDR
Video
Max. Resolution	2592*1944
Video Compression	Ultra 265,H.265,H.264,MJPEG
Frame Rate	Main Stream:5MP (25921944): Max. 15 fps; Sub Stream:720P (1280720): Max.20 fps;
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S),API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%,PoE (IEEE802.3 af)
	Power consumption: Max 4W
Dimensions (Ø x H)	Φ118x 96 mm (Φ4.6” x 3.8”)
Weight	0.35kg (0.77lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67

- SKU
  IPC3615LR3-PF28-D
- Weight
  0.77 lbs
Manufacturer
Uniview
Camera Type
Eyeball / Turret
Camera Signal
IP
Camera Resolution
5 Megapixel
Lens Size
2.8mm
Optical Zoom
Fixed Lens
Shipping Lead Time
Ships Same Day
