Uniview NVR301-04X-P4 | 4-ch 1-SATA Ultra 265/H.265/H.264 NVR

Uniview
SKU: WEC-NVR301-04X-P4
    • 37% less
    Market price:$380.00 save $140.00
  • $240.00

OR

The Uniview NVR301-04X-P4, which is a 4-channel network video recorder designed for use with IP cameras. The NVR supports Ultra H.265/H.265/H.264 video compression, which can significantly reduce storage requirements while maintaining high-quality video recordings.

The NVR has 4 PoE ports that support IEEE 802.3af/at, allowing for easy installation and setup of IP cameras without requiring separate power supplies. The NVR also supports ONVIF protocol, which enables integration with other ONVIF-compliant devices from different manufacturers.

The NVR301-04X-P4 offers various intelligent video analysis functions, such as intrusion detection, line crossing detection, and face detection, which can be used to trigger alarms and notifications when certain events occur. The NVR also supports real-time video monitoring and playback, making it suitable for use in security and surveillance applications.

The NVR has a single SATA port that supports up to 6TB hard drives, which can be used for video storage. The NVR also offers external backup options via USB or network storage, and remote access via web browser, smartphone app, or PC software.

Other features of the NVR include two-way audio communication, HDMI and VGA video outputs, and a compact design with dimensions of 260mm x 236mm x 48mm. The NVR can be powered using a DC 48V power supply.

ModelNVR301-04X-P4
Video/Audio Input
IP Video Input4-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth80Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch
Corridor Mode Screen3/4
Decoding
Decoding formatUltra 265/H.265/H.264
Liveview/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
SATA1 SATA interface
Capacityup to 6TB for each disk

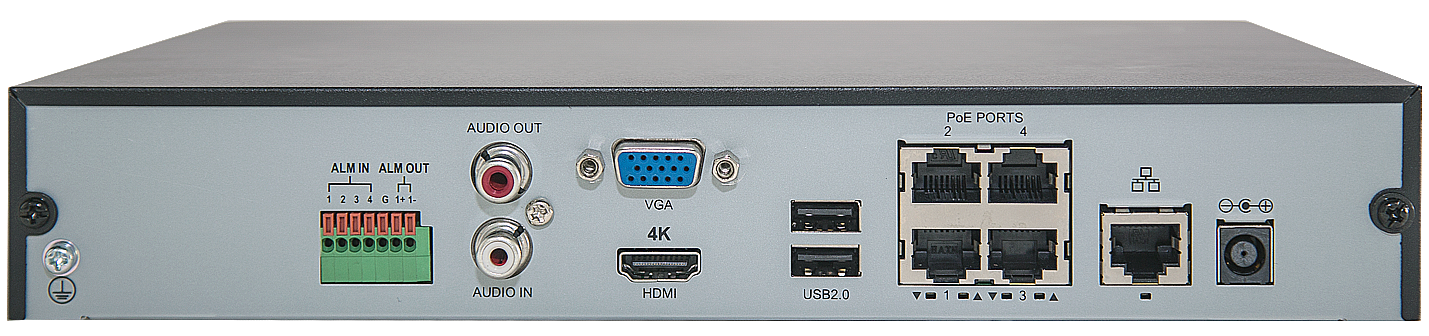

External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface4 RJ45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port
Max 54W in total
Supported StandardIEEE 802.3at, IEEE 802.3af
General
Power Supply48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

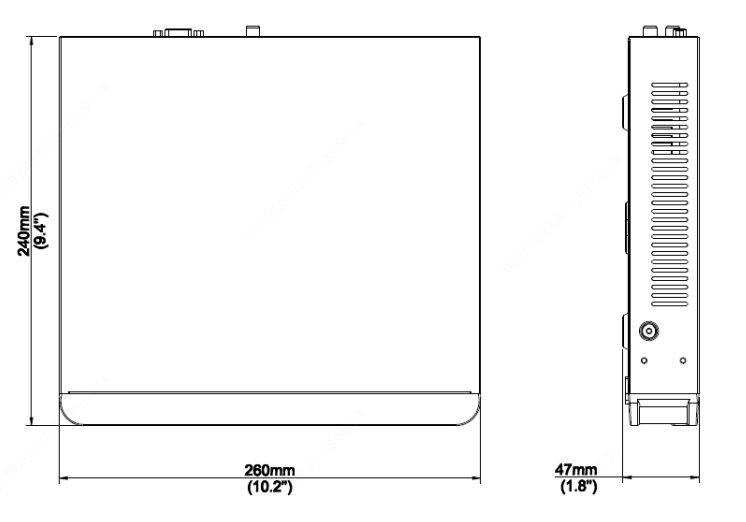

Dimensions (W×D×H)260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD)1kg (2.20 lb)



Downloads

Datasheet of NVR301-04X-P4

Network Video Recorders Quick Guide-V1.04

Network Video Recorders User Manual

    • SKU
      WEC-NVR301-04X-P4
    • Weight
      2.2 lbs
  • Manufacturer
    Uniview
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    4 Channels
  • Recorder Type
    NVR (with POE Ports)
